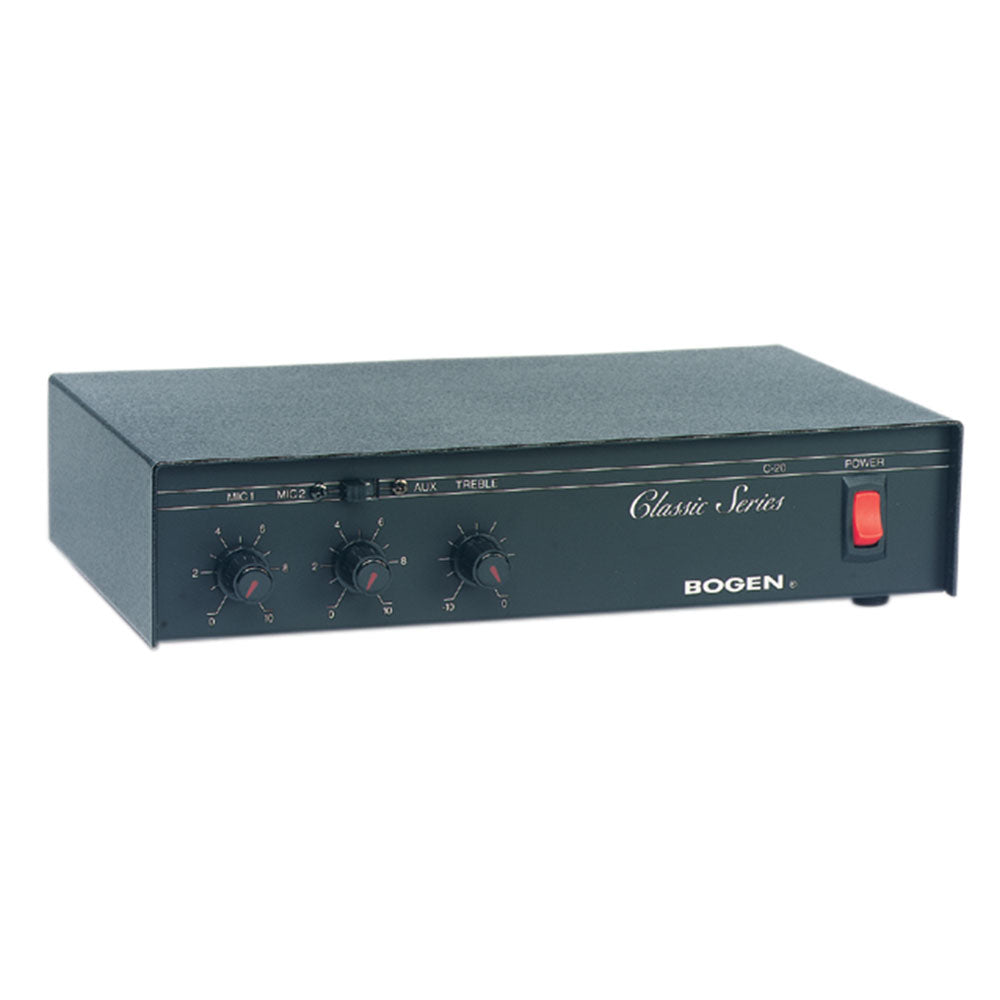

Bogen C20 Classic Series 20-Watt Mixer Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Bogen Classic Series Models C10 and C20, offer dependable performance and flexibility. The C10 is rated at 10 watts. The C20 is rated at 20 watts. Both models are listed to UL Standard 60065 for US and Canada. The Classic Series is designed with discreet complementary transistor circuitry to assure maximum reliability of power output stages.
Features:
- 20W output power
- Transformer isolated 4Ω, 8Ω, 16Ω, 25V and 70V output taps
- Rear panel auxiliary receptacle
- One dedicated MIC 1 input — Lo-Z balanced
- One switchable MIC 2/AUX 1 input
- Contact muting of AUX input
- Transformer-isolated 600Ω telephone paging input
- Separate rear panel-mounted TEL volume control
- Voice-activated muting of AUX input by TEL input
- Variable trigger threshold for voice activation
- Optional wall mount kit
- Optional impedance matching transformer 10k/600Ω
- Listed to UL Standard 60065 for US and Canada
| Power Output | 20 WRMS |
| Distortion | Less than 1% @ RPO |
| Frequency Response | 70Hz to 16kHz ±1dB |
| Hum and Noise | MIC: 55dB below rated output AUX: 70dB below rated output TEL: 70dB below rated output |
| Input Sensitivity | MIC: Lo-Z Balanced 600_V AUX: 85mV (10k ohms) TEL: 75mV (600½) |
| Outputs | 4, 8, and 16 ohms; 25V; 70V |
| Output Connections | Screw terminal strip |
| Input Connections | Two MIC Lo-Z terminals, AUX Hi-Z jack, TEL_terminals |
| Thermal Emissions | 99 BTU/hr. |
| Controls | MIC 1, MIC2/AUX (switch selected), Treble, TEL, VOX, Power |
| Tone Control | TREBLE, -11dB @ 10kHz (cut only) |
| Power Requirements | 120V~, 60Hz 50 watts |
| Dimensions | 11-3/8" W x 2-7/8" H x 7-3/8" D |
| Product Weight | 6 lbs. |
The Bogen Classic Series Models C10 and C20, offer dependable performance and flexibility. The C10 is rated at 10 watts. The C20 is rated at 20 watts. Both models are listed to UL Standard 60065 for US and Canada. The Classic Series is designed with discreet complementary transistor circuitry to assure maximum reliability of power output stages.
Features:
- 20W output power
- Transformer isolated 4Ω, 8Ω, 16Ω, 25V and 70V output taps
- Rear panel auxiliary receptacle
- One dedicated MIC 1 input — Lo-Z balanced
- One switchable MIC 2/AUX 1 input
- Contact muting of AUX input
- Transformer-isolated 600Ω telephone paging input
- Separate rear panel-mounted TEL volume control
- Voice-activated muting of AUX input by TEL input
- Variable trigger threshold for voice activation
- Optional wall mount kit
- Optional impedance matching transformer 10k/600Ω
- Listed to UL Standard 60065 for US and Canada
| Power Output | 20 WRMS |
| Distortion | Less than 1% @ RPO |
| Frequency Response | 70Hz to 16kHz ±1dB |
| Hum and Noise | MIC: 55dB below rated output AUX: 70dB below rated output TEL: 70dB below rated output |
| Input Sensitivity | MIC: Lo-Z Balanced 600_V AUX: 85mV (10k ohms) TEL: 75mV (600½) |
| Outputs | 4, 8, and 16 ohms; 25V; 70V |
| Output Connections | Screw terminal strip |
| Input Connections | Two MIC Lo-Z terminals, AUX Hi-Z jack, TEL_terminals |
| Thermal Emissions | 99 BTU/hr. |
| Controls | MIC 1, MIC2/AUX (switch selected), Treble, TEL, VOX, Power |
| Tone Control | TREBLE, -11dB @ 10kHz (cut only) |
| Power Requirements | 120V~, 60Hz 50 watts |
| Dimensions | 11-3/8" W x 2-7/8" H x 7-3/8" D |
| Product Weight | 6 lbs. |
