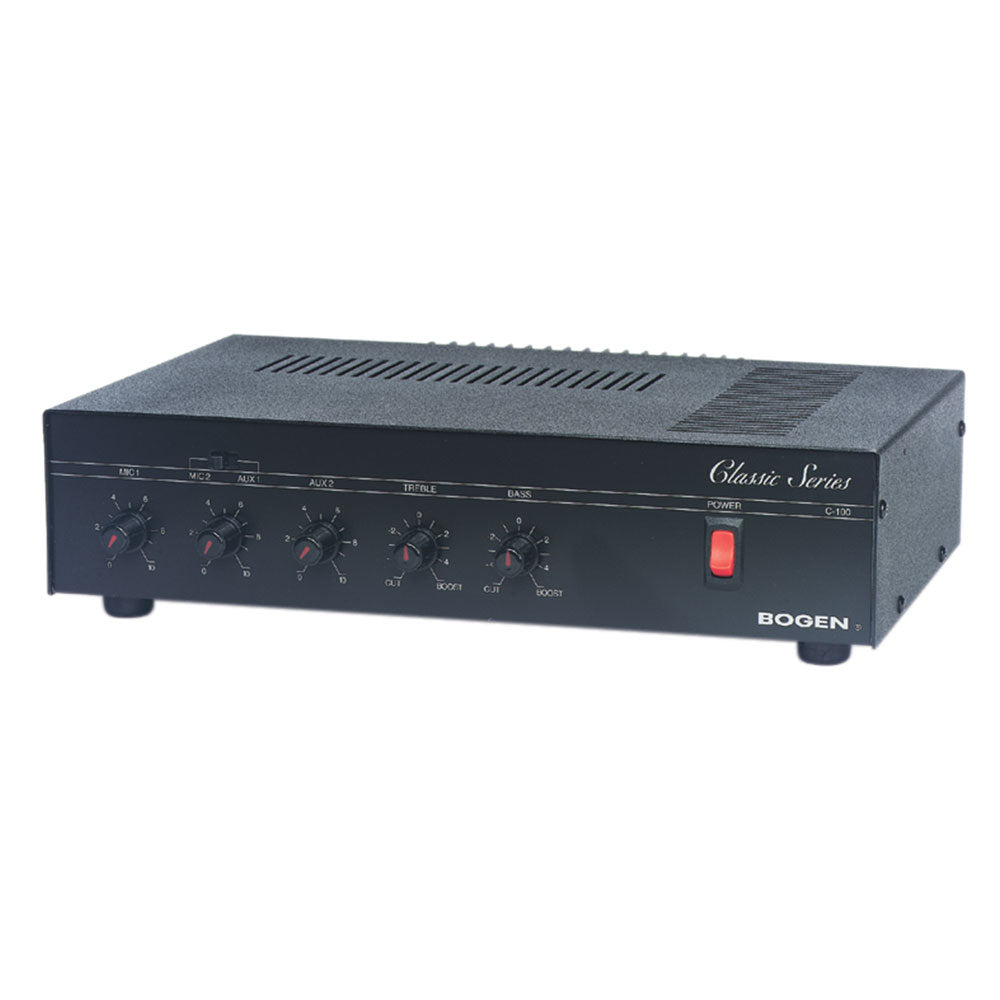

Bogen C35 Classic Series 35-Watt Mixer Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Bogen Classic Series Models C35, C60, and C100 are public address mixer amplifiers that provide mixing of microphones, telephone, and auxiliary sources. Output screw terminals are provided for 4-ohm (direct) and 8-ohm (C35 & C60 models only), 16-ohm, 25V and 70V (transformer-coupled) speaker systems. Output jacks let you connect to a tape recorder or an additional booster amplifier, or feed a 600-ohm telephone line when an accessory transformer (Model WMT1A) is used.
Features:
- 35 watts
- 4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
- Each input controlled by an independent volume control
- Treble and bass controls
- AUX muting by external contact closure for push-to-talk microphones
- TEL input for telephone paging applications
- TEL input voice-activated (VOX) mute over AUX input
- Variable threshold for TEL input voiceactivated AUX mute
- Outputs for 4-ohm (direct), 8-ohm speaker systems (transformer coupled)
- Output jack to connect a recording device or booster amplifier
- Output jack to connect a general-purpose 600-ohm matching transformer (model WMT1A)
- Thermal protection and electronic shutdown
- Rack mountable with accessory mounting kit (model RPK50)
- Listed to UL Standard 60065 for U.S. and Canada
| Power Output (RMS) | 35W |
| Frequency Response/Distortion | Transformer: 70 Hz-16 kHz (± 2 dB) @ 1% max. 4-Ohm Direct Output: 20 Hz-20 kHz (± 1 dB) @ 0.5% max. |
| Hum and Noise | MIC 55 dB below rated output AUX 70 dB below rated output TEL 70 dB below rated output |
| Input Sensitivity | MIC Lo-Z Balanced 600_V AUX 85mV TEL 75mV |
| Outputs | 8 ohms (C35 / C60 models only), 16 ohms, 25V, 70V transformerisolated balanced or unbalanced; 4 ohms direct unbalanced |
| Output Connections | Screw terminal strip, TAPE/BOOSTER jack; WMT1A jack (requires accessory transformer) |
| Input Connections | Screw terminals for MIC and TEL, two AUX Hi-Z jacks |
| Controls | MIC1, MIC2/AUX (switch selected), AUX 2, BASS, TREBLE, TEL, VOX |
| Thermal Emissions | 19.5 BTU/hr |
| Tone Control | Treble, ±11 dB @ 10 kHz; Bass ±11 dB @ 100 Hz |
| Power Requirements | 120V_AC, 60 Hz 85W |
| Dimensions | 14-1/2" W x 3-3/4" H x 11" D |
| Product Weight | 15 lb |
The Bogen Classic Series Models C35, C60, and C100 are public address mixer amplifiers that provide mixing of microphones, telephone, and auxiliary sources. Output screw terminals are provided for 4-ohm (direct) and 8-ohm (C35 & C60 models only), 16-ohm, 25V and 70V (transformer-coupled) speaker systems. Output jacks let you connect to a tape recorder or an additional booster amplifier, or feed a 600-ohm telephone line when an accessory transformer (Model WMT1A) is used.
Features:
- 35 watts
- 4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
- Each input controlled by an independent volume control
- Treble and bass controls
- AUX muting by external contact closure for push-to-talk microphones
- TEL input for telephone paging applications
- TEL input voice-activated (VOX) mute over AUX input
- Variable threshold for TEL input voiceactivated AUX mute
- Outputs for 4-ohm (direct), 8-ohm speaker systems (transformer coupled)
- Output jack to connect a recording device or booster amplifier
- Output jack to connect a general-purpose 600-ohm matching transformer (model WMT1A)
- Thermal protection and electronic shutdown
- Rack mountable with accessory mounting kit (model RPK50)
- Listed to UL Standard 60065 for U.S. and Canada
| Power Output (RMS) | 35W |
| Frequency Response/Distortion | Transformer: 70 Hz-16 kHz (± 2 dB) @ 1% max. 4-Ohm Direct Output: 20 Hz-20 kHz (± 1 dB) @ 0.5% max. |
| Hum and Noise | MIC 55 dB below rated output AUX 70 dB below rated output TEL 70 dB below rated output |
| Input Sensitivity | MIC Lo-Z Balanced 600_V AUX 85mV TEL 75mV |
| Outputs | 8 ohms (C35 / C60 models only), 16 ohms, 25V, 70V transformerisolated balanced or unbalanced; 4 ohms direct unbalanced |
| Output Connections | Screw terminal strip, TAPE/BOOSTER jack; WMT1A jack (requires accessory transformer) |
| Input Connections | Screw terminals for MIC and TEL, two AUX Hi-Z jacks |
| Controls | MIC1, MIC2/AUX (switch selected), AUX 2, BASS, TREBLE, TEL, VOX |
| Thermal Emissions | 19.5 BTU/hr |
| Tone Control | Treble, ±11 dB @ 10 kHz; Bass ±11 dB @ 100 Hz |
| Power Requirements | 120V_AC, 60 Hz 85W |
| Dimensions | 14-1/2" W x 3-3/4" H x 11" D |
| Product Weight | 15 lb |
