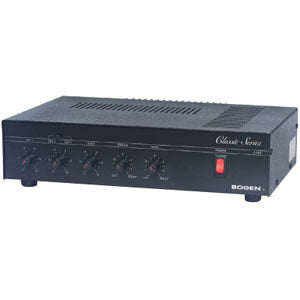

Bogen C60 Classic Series Public Address Amplifier - 60 W


  • Dale #:

    BOGE-C60
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Bogen Classic Series Models C35, C60, and C100 are public address mixer amplifiers that provide mixing of microphones, telephone, and auxiliary sources.Output screw terminals are provided for 4-ohm (direct) and 8-ohm (C35 & C60 models only), 16-ohm, 25V and 70V (transformer-coupled) speak... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Bogen Classic Series Models C35, C60, and C100 are public address mixer amplifiers that provide mixing of microphones, telephone, and auxiliary sources.
Output screw terminals are provided for 4-ohm (direct) and 8-ohm (C35 & C60 models only), 16-ohm, 25V and 70V (transformer-coupled) speaker systems. Output jacks let you connect to a tape recorder or an additional booster amplifier, or feed a 600-ohm telephone line when an accessory transformer (Model WMT1A) is used.

Features

  • 3 models: 35, 60, and 100 watts
  • 4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
  • Each input controlled by an independent volume control
  • Treble and bass controls
  • AUX muting by external contact closure for push-to-talk microphones
  • TEL input for telephone paging applications
  • TEL input voice-activated (VOX) mute over AUX input
  • Variable threshold for TEL input voiceactivatedA UX mute
  • Outputs for 4-ohm (direct), 8-ohm (C35 & C60 models only), and 16-ohm, 25V and 70V speaker systems (transformer coupled)
  • Output jack to connect a recording device or booster amplifier
  • Output jack to connect a general-purpose 600-ohm matching transformer (model WMT1A)
  • Thermal protection and electronic shutdown
  • Rack mountable with accessory mounting kit (model RPK50)
  • Listed to UL Standard 60065 for U.S. and Canada

More +

Product Specs

Power Output (RMS)Rated
C6060W
Frequency Response & Distortion
Transformer70 Hz-16 kHz (± 2 dB) @ 1% max.
4-Ohm Direct Output20 Hz-20 kHz (± 1 dB) @ 0.5% max.
Hum and Noise
MIC55 dB below rated output
AUX70 dB below rated output
TEL70 dB below rated output
Input Sensitivity
MIC Lo-Z Balanced600μV
AUX85mV
TEL75mV
Outputs8 ohms (C35 & C60 models only),
16 ohms, 25V, 70V transformerisolated
balanced or unbalanced;
4 ohms direct unbalanced
Output ConnectionsScrew terminal strip, TAPE/BOOSTER jack; WMT1A jack (requires accessory transformer)
Input ConnectionsScrew terminals for MIC and TEL, two AUX Hi-Z jacks
ControlsMIC1, MIC2/AUX (switch selected), AUX 2, BASS, TREBLE, TEL, VOX
Thermal EmissionsC60: 228.8 BTU/hr.
Tone ControlTreble, ±11 dB @ 10 kHz;
Bass ±11 dB @ 100 Hz
Power Requirements120V AC, 60 Hz
C35: 85W; C60: 148W;
C100: 220W
Dimensions14-1/2" W x 3-3/4" H x 11" D
Product WeightC60: 17 lb
