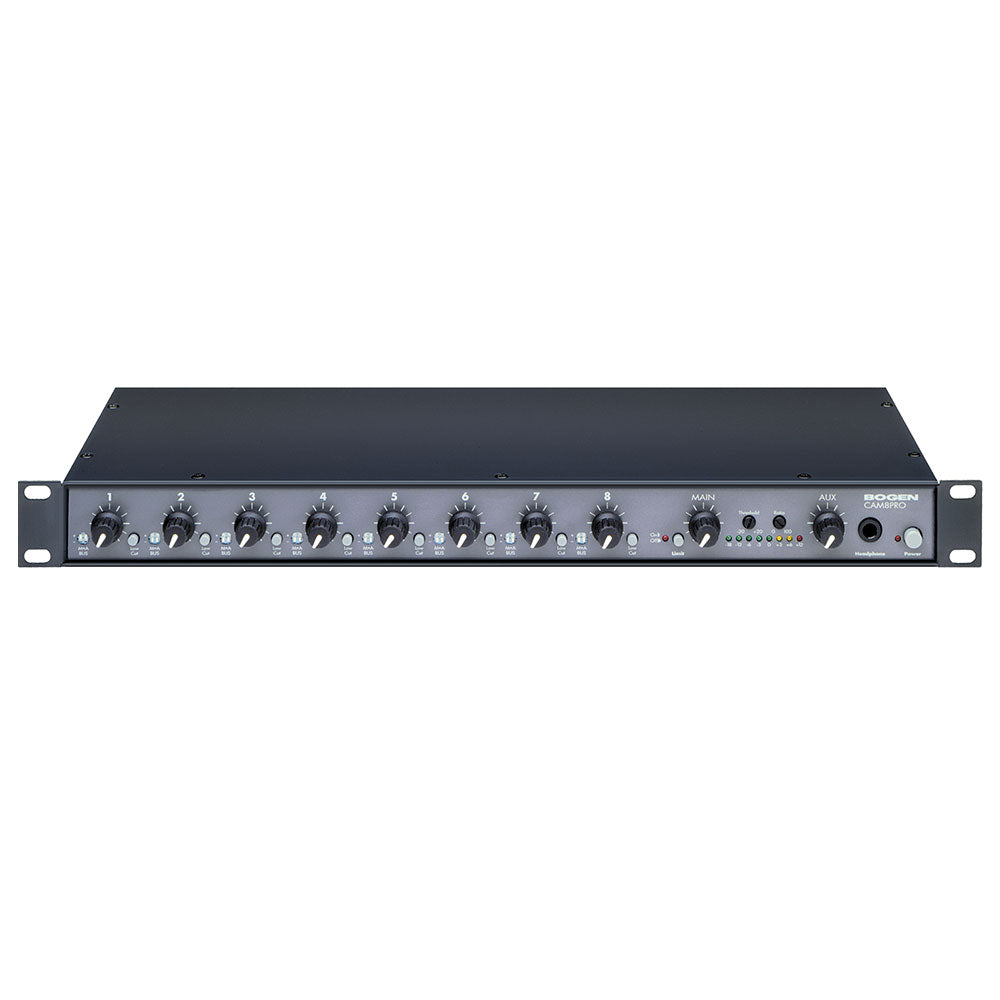

Bogen CAM8PRO 8-Channel Install Mixer with Compressors


  • Dale #:

    BOGE-CAM8PRO
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The Bogen CAM8PRO is an 8-input, dual-bus MIC/Line mixer that combines superb performance with a generous array of simple-to-use features in a single-rack space design. It features 8 independently assignable inputs switchable between MIC and Line. Each input has a trim control, a switchable low-c... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Bogen CAM8PRO is an 8-input, dual-bus MIC/Line mixer that combines superb performance with a generous array of simple-to-use features in a single-rack space design. It features 8 independently assignable inputs switchable between MIC and Line. Each input has a trim control, a switchable low-cut filter, and a Main/Auxiliary bus output selector. An additional Auxiliary input can be routed to the Main output, AUX output, or both by setting internal jumpers. Phantom Power is provided for condenser microphones. The CAM8PRO also features a built-in Compressor/Limiter with adjustable Threshold and Ratio Controls. A Bar Graph Output Meter indicates output signal levels. The CAM8PRO also includes a headphone output. Solidly engineered, the Bogen CAM8PRO mixer will provide many years of trouble-free operation.

Features:

  • 8 independently assignable inputs
  • Dual-bus design with Main/AUX output selector for each input
  • Compressor/Limiter (Main output)
  • Compressor/Limiter Bypass switch
  • Adjustable Threshold and Ratio Controls
  • LED Bar Graph Output Meter (Peak or Average)
  • Pluggable terminal strip connections
  • Separate Auxiliary input
  • Balanced inputs and outputs
  • Direct bus connection for cascading multiple mixers
  • MIC/Line switch for each input and Main output
  • Gain/Trim Control for each input
  • Low Cut Filter for each input
  • Switchable Phantom Power for condenser MIC inputs
  • Input Level Control knob for each input
  • Output Level Control knob for Main and AUX outputs
  • Headphone Output
  • Sealed potentiometers for low noise and long life
  • Heavy-duty construction
  • External power supply
  • Single-rack space

More +

Product Specs

Signal-to-Noise Ref +26 dBV @ 54 dB
sys gain = 90 dB
Mic Pre-amp EIN -129 dB @ 150-ohms, 20 Hz to 20 kHz
Max. Voltage Gain 96 dB
Frequency Response ±1 dB from 20 Hz to 20 kHz
Crosstalk (adjac. ch.) better than -90 dB
Phantom Power +30V DC
INPUTS 1-8
Input Impedance 3.5k-ohm MIC
15k-ohm Line
Nom. Source Impedance 150 ohms
Line Pad -50 dB
Input Gain/Trim Range 40 dB
Nominal Input Level
(trim pot mid-range)
-50 dBμ line pad off
0 dBμ line pad on
Minimum Input Level
(trim pot max gain)
-70 dBμ line pad off
-20 dBμ line pad on
Maximum Input Level
(trim pot min gain plus +20dB headroom)
-30 dBμ line pad off
+20 dBμ line pad on
AUXILIARY INPUT
Input Impedance 20k-ohm balanced
Nominal Input Level 0 dBμ
OUTPUTS
Output Impedance 220-ohm unbalanced, 440-ohm balanced
Nom. Load Impedance 600 ohms
Nominal Level +4 dBμ RMS
Maximum Level +26 dBμ RMS Balanced
Main Output Mic Pad -50 dB
AUXILIARY CIRCUITS
LED Bar Graph -18, -12, -6, -3, 0, +3, +6, +12VU
(0 VU = +4 dB)
Average or Peak reading
Limiter/Compressor:
Threshold Adj. Range +20 dB to -20 dB
Ratio Adj. Range 0 to 100%
Low Cut Filter 18 dB/octave at 100 Hz
Power Requirements 17V AC center-tapped, 120V AC, 60 Hz
Dimensions 19" W x 1-3/4" H x 7-1/2" D
Product Weight 7 lb.
