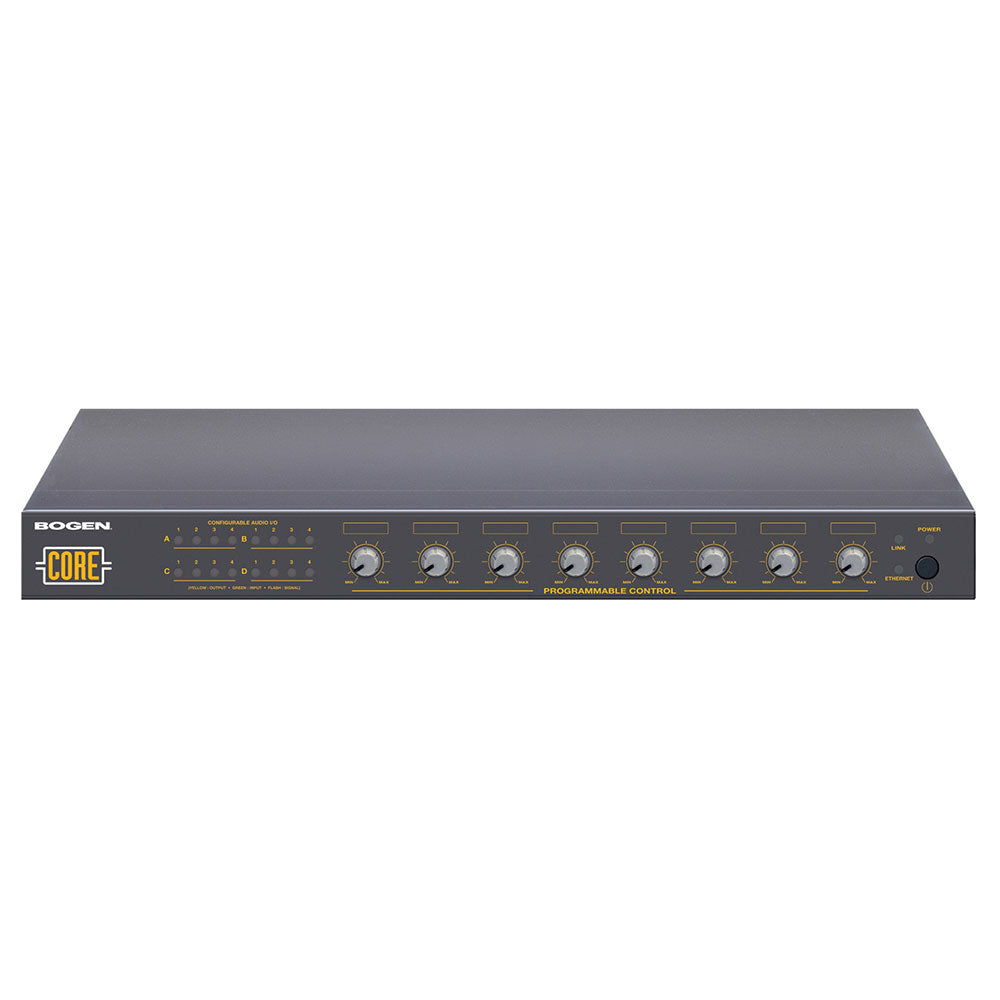

Bogen CORE12X4 Universal Audio Processor (12 Input/4-Output)


  • Dale #:

    BOGE-CORE12X4
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Designed for small to medium installations, The CORE is a highly versatile drag-and-drop DSP processor. Hardware system configuration is highly flexible in blocks of 2 for 4 in/12 out, 6 in/10 out, etc. configurations. Expandability is also ensured by stacking multiple processors for a very high ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Designed for small to medium installations, The CORE is a highly versatile drag-and-drop DSP processor. Hardware system configuration is highly flexible in blocks of 2 for 4 in/12 out, 6 in/10 out, etc. configurations. Expandability is also ensured by stacking multiple processors for a very high number of inputs and outputs. Front panel knobs can be programmed to map to any functions within the DSP library and can be scaled to match the requirements of the project. Up to 53 minutes of audio storage is built-in to the box and audio files can be activated via a built-in scheduler, any of 16 resident TTL inputs, or via an end user GUI interface custom built for each application. System design is PC based.

The software system design is PC based. Once connected, The CORE software, allows for design, downloading, reversal of in-box designs, and live monitoring, calibration, and routing via the PC. Third-party control systems such as Crestron, AMX, Vity and others can also control The Core either via RS-232 or IP commands. Up to 12 CORE units can be networked together for expandability. A variety of accessories, including low cost analog controllers (RAC), digital controllers (URC), and various paging and control microphones (PPM, PPM Touch) are available for use with the system.

Features:

  • Up to 16 analog inputs/outputs
  • Configuration via PC/Laptop
  • Programmable, scalable front panel knobs for DSP functions
  • Third-party control via RS-232 or IP commands
  • Full DSP drag-and-drop component library
  • Up to 53 minute built-in message storage
  • 16 built-in TTL inputs and 8 logic outputs
  • Stack up to 12 units
  • CE and UL listed
  • 5 year warranty

More +

Product Specs

Hardware Components
Main Frame 4 slots for input/output cards, 16 TTL/Analog Inputs, 8 TTL Outputs, RS485, RS232 Port, Ethernet Port
Output Card 4 Channels with individual Overload Indicator, Mute, Meter, Signal Present, Level Control, and adjustable Overload Threshold
Input Card 4 Channels with individual Bypass, Mute, Sensitivity Select, Phantom Power, Mute, RTO (route to output), VU Meter, Signal Present, Level Control and adjustable Overload Threshold
Software Components
Delays 5 ms to 2000 ms
Dynamics AGC (mono and stereo), Automatic Noise Sensing, Compressor, Comp-limiter, Expander (mono and stereo), Ducker (mono and stereo), Mono and Stereo Gate, Voice Gate, Gate with Sidechain
Equalizers Mono and Stereo GEQ (1 Octave, 2/3 Octave, 1/3 Octave), Mono and Stereo PEQ (2, 4, 6, 8, 10, 16 bands)
Feedback Cancellation Dynamic Feedback cancellation 1/5, 1/10, 1/20, and 1/100 Octave with 4, 8, 12, or 16 bands
Inverter Yes
Level Controls 4x4, 8x8, 16x16
Echo Local Echo Suppression Module
Meters 1 CH, 4 CH, 8 CH, 16 CH Peak/RMS
Logic AND, NOT, OR, NOR gates with Net Input/Output for network applications
Message Repeater Up to 53 minutes of audio can be stored inside the box and output 2 separate messages simultaneously to independent zones; messages can be activated using TTL inputs or via the built-in Scheduler
Mixers Automixers, Automixers with Mix Minus, Matrix Mixers, Standard Mixers, and Room Combiner
Noise Generator White, Pink, Tone
Page Control Module For zone paging applications
Selectors 4x1, 5x1, 6x1, 7x1, 8x1, 16x1, 32x1 for use with Third-Party control or ATEIS RAC, URC remote controllers
Custom Components Build your own program within the program and password protect it
Audio Specifications
Frequency Response 20 Hz to 20 kHz @ +4 dBU (=/-0.6 dB)
Dynamic Range > 105 dB
Maximum Gain 66 dB
Crosstalk Line < -78 dB; MIC < -73 dB
Output Impedance 200 ohms
Input Impedance 8k ohms
Maximum Output +24 dBu
Maximum Input +24 dBu
Phantom Power +48V DC
Input Gain Range 0 to 54 dB
Sampling Rate 48 kHz or 96 kHz (selectable)
A/D D/A Converters 24 bit
Power Consumption < 145 watts
Dimensions 17-1/8” W x 1-3/4” H x 11-5/8” D
Product Weight 8 lb.
