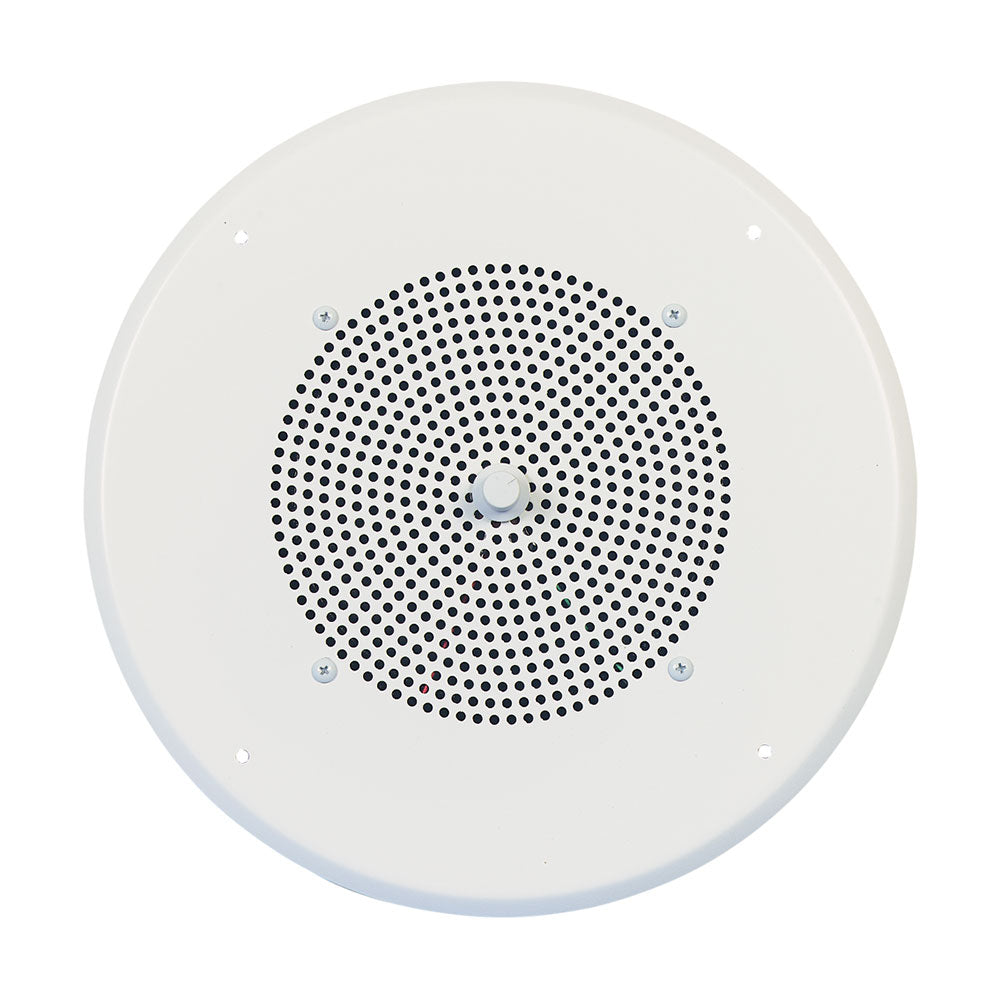

Bogen CS1EZ Easy Design Ceiling Speaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Bogen CS1EZ is a pre-assembled 1-watt single-tap ceiling speaker designed for use with 70V amplifier systems. Comprised of an 8" cone speaker and 13" diameter steel ceiling grille finished with white enamel, the CS1EZ includes a rear-mounted screw terminal board for fast, easy installation. An accessible volume control knob is located on the faceplate.
Features:
- 1W single-tap design
- Screw terminal connections for fast installation
- Works with 70V amplifier outputs
- 8" cone speaker for excellent audio quality
- Heavy-duty, wire-wound volume control with knob
- Pre-assembled for faster installation
- Tile bridge (Model TB8) available to support the weight of the speaker (not included)
| Power Rating (RMS) | 1 watt continuous |
| Frequency Response | 50 Hz to 12 kHz |
| Impedance | 4900 ohms (for use on 70V amplifier outputs) |
| Sound Pressure Level | 95 dB @ 4 ft. with a 1-watt input on axis |
| Dimensions | 13" Dia. X 3-1/4" D |
| Product Weight | 3 lb. |
| Finish | Semi-gloss white enamel |
The Bogen CS1EZ is a pre-assembled 1-watt single-tap ceiling speaker designed for use with 70V amplifier systems. Comprised of an 8" cone speaker and 13" diameter steel ceiling grille finished with white enamel, the CS1EZ includes a rear-mounted screw terminal board for fast, easy installation. An accessible volume control knob is located on the faceplate.
Features:
- 1W single-tap design
- Screw terminal connections for fast installation
- Works with 70V amplifier outputs
- 8" cone speaker for excellent audio quality
- Heavy-duty, wire-wound volume control with knob
- Pre-assembled for faster installation
- Tile bridge (Model TB8) available to support the weight of the speaker (not included)
| Power Rating (RMS) | 1 watt continuous |
| Frequency Response | 50 Hz to 12 kHz |
| Impedance | 4900 ohms (for use on 70V amplifier outputs) |
| Sound Pressure Level | 95 dB @ 4 ft. with a 1-watt input on axis |
| Dimensions | 13" Dia. X 3-1/4" D |
| Product Weight | 3 lb. |
| Finish | Semi-gloss white enamel |
