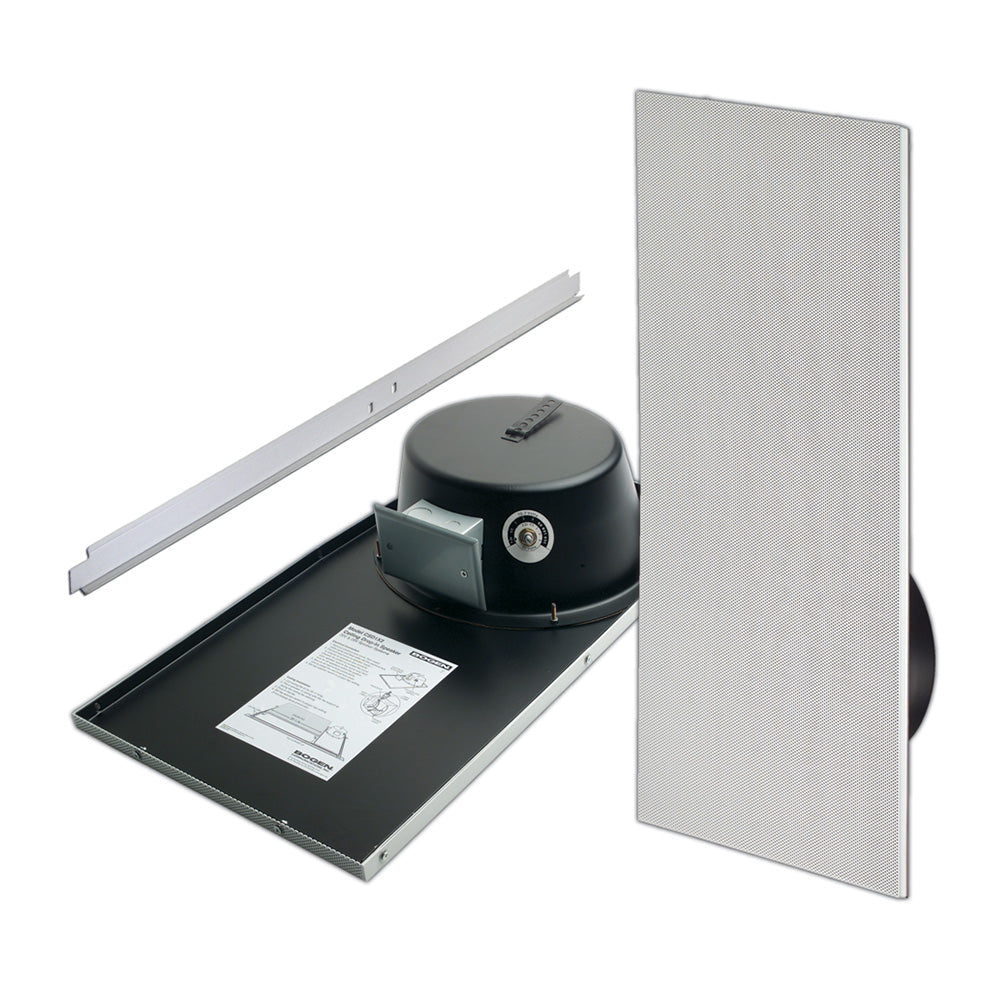

Bogen CSD1X2/U Drop-In Ceiling Speaker with Back Can
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Priced individually, but sold in pairs.
Bogen's CSD1X2 Drop-In Ceiling Speakers are 1' X 2' speakers that allow for fast and easy installation. Just make one simple cut to the ceiling tile, lay the support rail crossbar (included) across the ceiling grid, and drop the speaker into place.
Features:
- Finely perforated grille over the entire front of speaker
- Fully enclosed, industrial grade steel construction
- Enclosed Back Can
- 8'' main cone with secondary high-frequency cone
- 70V/25V, 4-watt transformer (4, 2, 1, 0.5, 0.25 watt) taps; selected by rotary switch
- Seismic attachment point
- Available in off-white and bright white ("U" versions) grille finish
- ''VR'' versions have a Recessed Volume Control (front-mounted)
- Listed to UL Standard 1480 for U.S. use
- Support Rail Crossbar (included)
- Priced individually and sold in pairs
| Operating Voltage | 70 or 25 Volts |
| Frequency Response | 110 Hz to 20 kHz |
| SPL @ 1W /1m | 94 dB |
| Power Taps | 4, 2, 1, 0.5, 0.25 W |
| Dispersion @ 2 kHz (6 dB down) | 100 deg. |
| Cone Material / Surround | Treated paper |
| Cones | 8" main cone with secondary high frequency cone |
| Magnet Weight | 10 oz. |
| Connection | Via wire nuts (included in electrical box) |
| Dimensions | 12-1/4" W x 5" H x 24" D |
| Product Weight | 10 lb. |
| Safety Certifications | Plenum-Rated and Listed to UL Standard 1480 for U.S. only |
Priced individually, but sold in pairs.
Bogen's CSD1X2 Drop-In Ceiling Speakers are 1' X 2' speakers that allow for fast and easy installation. Just make one simple cut to the ceiling tile, lay the support rail crossbar (included) across the ceiling grid, and drop the speaker into place.
Features:
- Finely perforated grille over the entire front of speaker
- Fully enclosed, industrial grade steel construction
- Enclosed Back Can
- 8'' main cone with secondary high-frequency cone
- 70V/25V, 4-watt transformer (4, 2, 1, 0.5, 0.25 watt) taps; selected by rotary switch
- Seismic attachment point
- Available in off-white and bright white ("U" versions) grille finish
- ''VR'' versions have a Recessed Volume Control (front-mounted)
- Listed to UL Standard 1480 for U.S. use
- Support Rail Crossbar (included)
- Priced individually and sold in pairs
| Operating Voltage | 70 or 25 Volts |
| Frequency Response | 110 Hz to 20 kHz |
| SPL @ 1W /1m | 94 dB |
| Power Taps | 4, 2, 1, 0.5, 0.25 W |
| Dispersion @ 2 kHz (6 dB down) | 100 deg. |
| Cone Material / Surround | Treated paper |
| Cones | 8" main cone with secondary high frequency cone |
| Magnet Weight | 10 oz. |
| Connection | Via wire nuts (included in electrical box) |
| Dimensions | 12-1/4" W x 5" H x 24" D |
| Product Weight | 10 lb. |
| Safety Certifications | Plenum-Rated and Listed to UL Standard 1480 for U.S. only |
