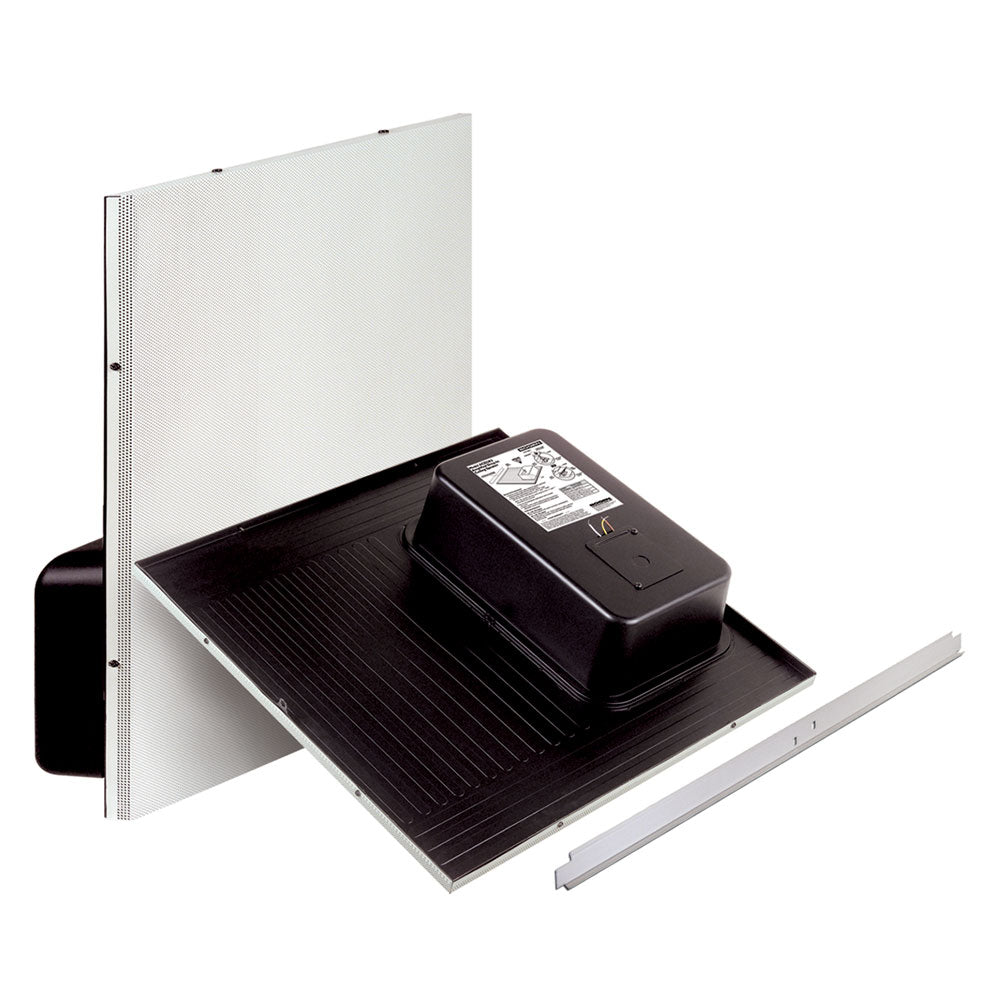

Bogen CSD2X2LU Drop-In Low-Impedance Ceiling Speaker (Bright White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
Bogen's CSD2X2L(U) Drop-In Ceiling Speakers are 8-ohm, full-range speakers that allow for fast and easy installation, which saves installation time, effort, and cost. The CSD2X2L(U) is a 2' x 2' speaker that fits perfectly into place in 2' x 2' ceiling grids - without needing to cut ceiling tiles or requiring the use of tile support rails. The CSD2X2L(U) can also be easily installed in 2' x 4' ceiling grids - just make one cut to the ceiling tile, position the support rail (included), and drop the speaker into place.
Features:
- Finely perforated grille over the entire front of speaker
- Fully enclosed, industrial grade steel construction
- Enclosed Back Can
- 8'' main cone with secondary high-frequency cone
- Low-Impedance: 8-ohm speaker, 15W max. power
- Seismic attachment points
- Listed to UL Standard 1480 for for U.S. use
- Support Rail Crossbar (included)
- Available in Off-white and Bright White ("U" versions) grille finish
| Frequency Response | 85 Hz to 20 kHz |
| SPL @ 1W / 1m | 94 dB |
| Maximum Power | 15 watts @ 8-ohm |
| Dispersion @ 2 kHz (6 dB down) | 100 deg. |
| Cone Material / Surround | Treated paper |
| Cones | 8" main cone with secondary high frequency cone |
| Magnet Weight | 10 oz. |
| Connection | Via wire nuts (included in electrical box) |
| Dimensions | 24" W x 4-7/8" H x 24" D |
| Product Weight | 12 lb. |
| Certifications | Plenum-Rated, and Listed to UL Standard 1480 for U.S. use |
Priced individually, but sold in pairs.
Bogen's CSD2X2L(U) Drop-In Ceiling Speakers are 8-ohm, full-range speakers that allow for fast and easy installation, which saves installation time, effort, and cost. The CSD2X2L(U) is a 2' x 2' speaker that fits perfectly into place in 2' x 2' ceiling grids - without needing to cut ceiling tiles or requiring the use of tile support rails. The CSD2X2L(U) can also be easily installed in 2' x 4' ceiling grids - just make one cut to the ceiling tile, position the support rail (included), and drop the speaker into place.
Features:
- Finely perforated grille over the entire front of speaker
- Fully enclosed, industrial grade steel construction
- Enclosed Back Can
- 8'' main cone with secondary high-frequency cone
- Low-Impedance: 8-ohm speaker, 15W max. power
- Seismic attachment points
- Listed to UL Standard 1480 for for U.S. use
- Support Rail Crossbar (included)
- Available in Off-white and Bright White ("U" versions) grille finish
| Frequency Response | 85 Hz to 20 kHz |
| SPL @ 1W / 1m | 94 dB |
| Maximum Power | 15 watts @ 8-ohm |
| Dispersion @ 2 kHz (6 dB down) | 100 deg. |
| Cone Material / Surround | Treated paper |
| Cones | 8" main cone with secondary high frequency cone |
| Magnet Weight | 10 oz. |
| Connection | Via wire nuts (included in electrical box) |
| Dimensions | 24" W x 4-7/8" H x 24" D |
| Product Weight | 12 lb. |
| Certifications | Plenum-Rated, and Listed to UL Standard 1480 for U.S. use |
