Bogen CSD2X2VR Drop-In Ceiling Speaker with Volume Control (Off White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.

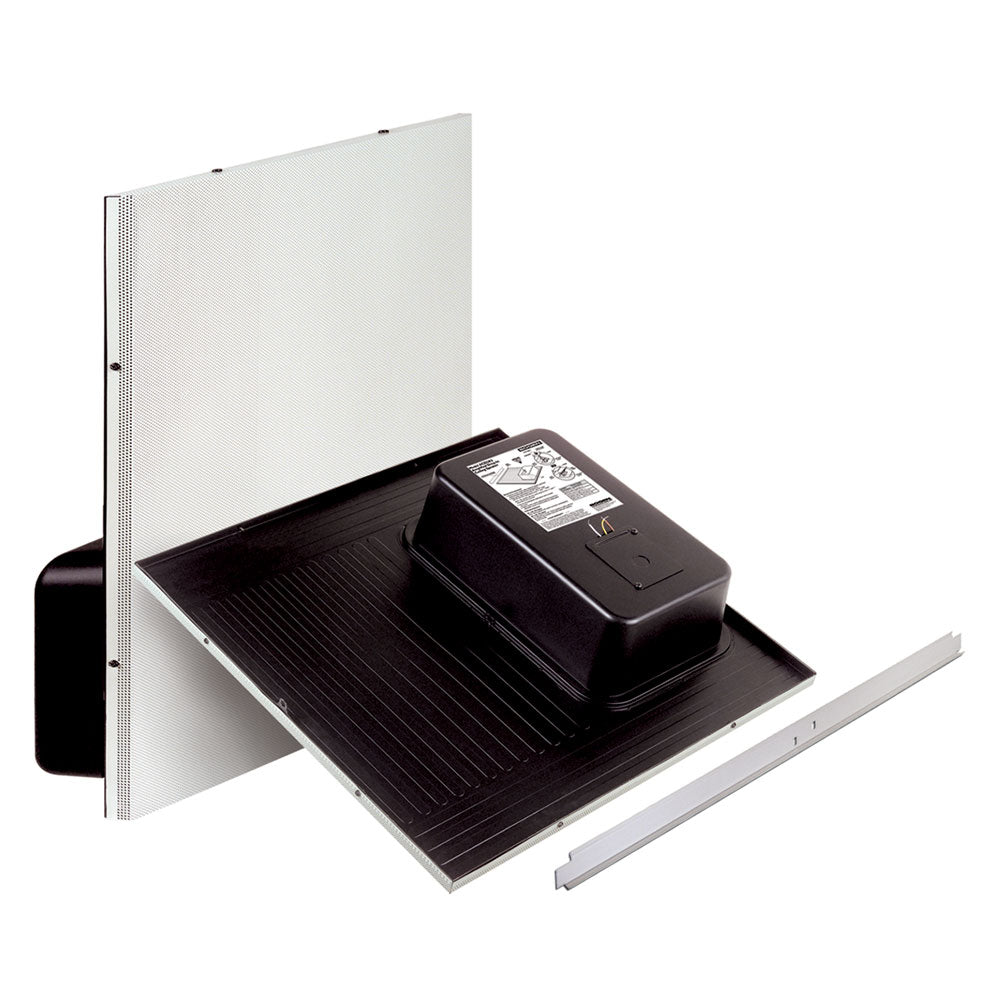

Bogen's CSD2X2 Drop-In Ceiling Speaker is a full-range speaker that allows for fast and easy installation, which saves installation time, effort, and cost. The CSD2X2 is a 2' x 2' speaker that fits perfectly into place in 2' x 2' ceiling grids - without needing to cut ceiling tiles or requiring the use of tile support rails. The CSD2X2 can also be easily installed in 2' x 4' ceiling grids - just make one cut to the ceiling tile, position the support rail (included), and drop the speaker into place.
Features:
- Finely perforated grille over the entire front of speaker
- Fully enclosed, industrial grade steel construction
- Enclosed Back Can
- 8'' main cone with secondary high-frequency cone
- 70V/25V, 4-watt transformer (4, 2, 1, 0.5, 0.25 watt) taps; selected by rotary switch
- Seismic attachment points
- Available in off-white and bright white ("U" versions) grille finish
- ''VR'' versions have a Recessed Volume Control (front-mounted)
- Listed to UL Standard 1480 for U.S. use
- Support Rail Crossbar (included)
| Frequency Response | 95 Hz to 20 kHz |
| SPL @ 1W / 1m | 94 dB |
| Power Taps | 4, 2, 1, 0.5, 0.25 watts |
| Voltage | 70V and 25V Compatible |
| Dispersion @ 2 kHz (6 dB down) | 100 deg. |
| Cone Material / Surround | Treated paper |
| Cones | 8" main cone with secondary high frequency cone |
| Magnet Weight | 10 oz. |
| Connection | Via wire nuts (included in electrical box) |
| Dimensions | 24" W x 4-7/8" H x 24" D |
| Product Weight | 12 lb |
| Certifications | Plenum-Rated and Listed to UL Standard 1480 for U.S. use |
Priced individually, but sold in pairs.
Bogen's CSD2X2 Drop-In Ceiling Speaker is a full-range speaker that allows for fast and easy installation, which saves installation time, effort, and cost. The CSD2X2 is a 2' x 2' speaker that fits perfectly into place in 2' x 2' ceiling grids - without needing to cut ceiling tiles or requiring the use of tile support rails. The CSD2X2 can also be easily installed in 2' x 4' ceiling grids - just make one cut to the ceiling tile, position the support rail (included), and drop the speaker into place.
Features:
- Finely perforated grille over the entire front of speaker
- Fully enclosed, industrial grade steel construction
- Enclosed Back Can
- 8'' main cone with secondary high-frequency cone
- 70V/25V, 4-watt transformer (4, 2, 1, 0.5, 0.25 watt) taps; selected by rotary switch
- Seismic attachment points
- Available in off-white and bright white ("U" versions) grille finish
- ''VR'' versions have a Recessed Volume Control (front-mounted)
- Listed to UL Standard 1480 for U.S. use
- Support Rail Crossbar (included)
| Frequency Response | 95 Hz to 20 kHz |
| SPL @ 1W / 1m | 94 dB |
| Power Taps | 4, 2, 1, 0.5, 0.25 watts |
| Voltage | 70V and 25V Compatible |
| Dispersion @ 2 kHz (6 dB down) | 100 deg. |
| Cone Material / Surround | Treated paper |
| Cones | 8" main cone with secondary high frequency cone |
| Magnet Weight | 10 oz. |
| Connection | Via wire nuts (included in electrical box) |
| Dimensions | 24" W x 4-7/8" H x 24" D |
| Product Weight | 12 lb |
| Certifications | Plenum-Rated and Listed to UL Standard 1480 for U.S. use |
