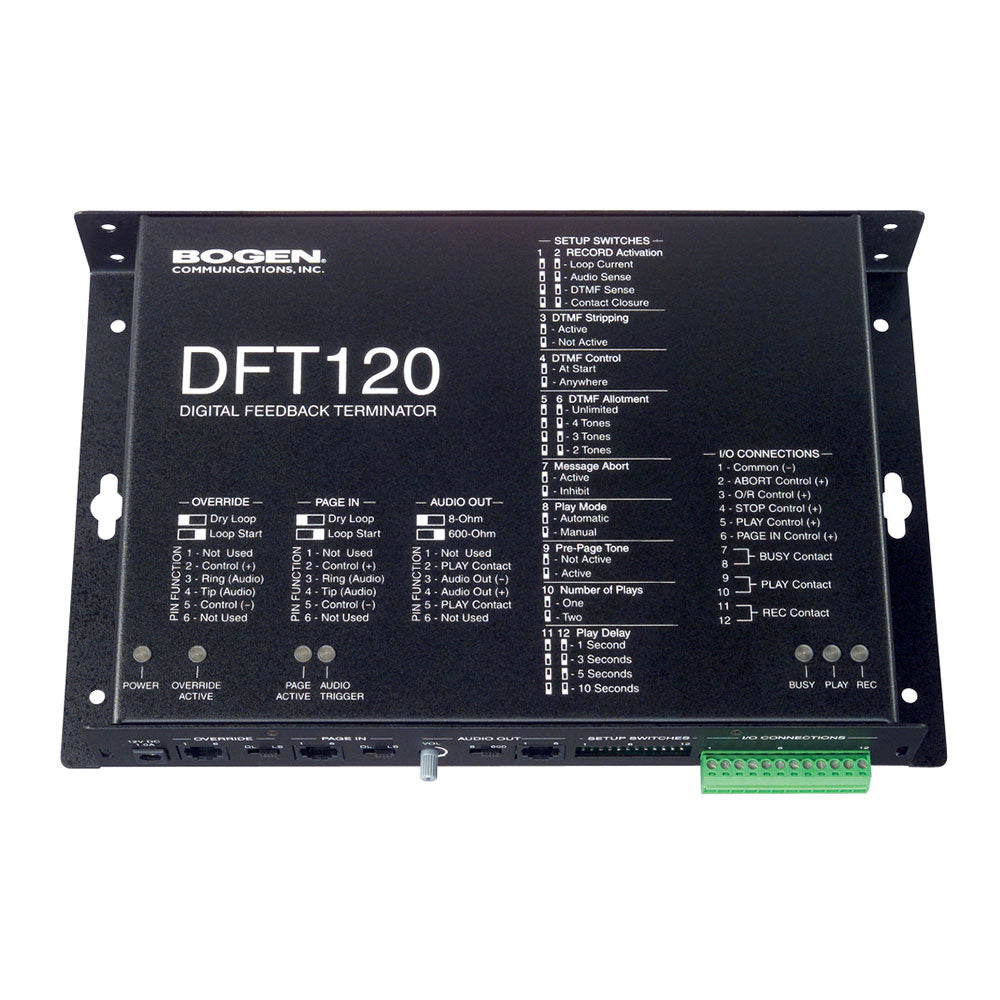

Bogen DFT120 Digital Feedback Terminator for Phone Paging Systems
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Bogen DFT120 Digital Feedback Terminator provides high quality recording and playback of audio pages. The DFT120 breaks the acoustical feedback loop created by the telephone handset and paging speaker. The page is first recorded and then played back as soon as the source handset has been put on-hook. High capacity paging is accomplished by the DFT120ʼs record during playback and page stacking capabilities. User selectable loop start trunk or 4 wire dry loop input interface and selectable 8-ohm or 600-ohm output impedances allow the DFT120 to directly connect to a wide range of customer premise equipment.
Features:
- 240 Seconds of total audio memory
- Record a message while another is being played
- Stack up to 16 messages for playback
- Loop start or dry loop input modes
- High sampling rate for excellent play quality
- Multiple record and playback modes
- Adjustable delay times between messages
- Message abort and stop control available
- Pluggable terminal strip for easy installation
- Regeneration of zone control DTMF tones
- Message repeat function
- Pre-page tone available
- Unit status outputs indicating in-use, play, and record states
- Selectable 8- or 600-ohm output impedance
- Transformer isolated audio output
- Output power, 0.125W @ 8 ohms or +4 dBm @ 600 ohms
- Automatic or externally controlled unit operation
- Strips message zone control DTMF tones from the repeat message
- DTMF controlled abort recording function
| Audio Memory Capacity | 240 Seconds |
| Maximum Message Length | 60 Seconds |
| Message Stacking Capacity | 16 Messages |
| Audio Sampling | 12 Bit word at 16 kHz |
| Frequency Response | 100 Hz to 6.8 kHz +/-3 dB |
| Distortion | < 1.0% (THD max., typical) |
| Signal-to-Noise Ratio | 60 dB |
| Dynamic Range | 60 dB |
| Page Input/Priority Audio Input | 600-ohms, transformer-isolated, with -20dBm to +4 dBm (nominal 0 dBm) input level |
| Type | Loop start trunk or 4-wire dry loop, switch selectable |
| Connector | RJ-11 (6 position) |
| Audio Output | |
| Type | Transformer isolated, unbalanced |
| Impedance/Power | 8 ohms / 0.125W or 600 ohms / +4 dBm, switch selectable |
| Connector | RJ-11 (6 position) |
| Controls / Switches | Volume Input type (loop start / dry loop) Output impedance (8- or 600-ohm) Setup DIP switches (bank of 12) |
| External Control Inputs | Record, Play, Stop |
| Status Outputs | Record, Play, In Use |
| Status Contact Rating | 24V DC, 1A |
| LED Status Indicators | Power, Play, Record, In Use |
| Protective Fusing | 0.6A, Internal automatic reset |
| Power Consumption | 12V DC / 1Amp |
| Dimensions | 10" W x 6.75" H x 1.5" D |
| Product Weight | 3 lb. |
The Bogen DFT120 Digital Feedback Terminator provides high quality recording and playback of audio pages. The DFT120 breaks the acoustical feedback loop created by the telephone handset and paging speaker. The page is first recorded and then played back as soon as the source handset has been put on-hook. High capacity paging is accomplished by the DFT120ʼs record during playback and page stacking capabilities. User selectable loop start trunk or 4 wire dry loop input interface and selectable 8-ohm or 600-ohm output impedances allow the DFT120 to directly connect to a wide range of customer premise equipment.
Features:
- 240 Seconds of total audio memory
- Record a message while another is being played
- Stack up to 16 messages for playback
- Loop start or dry loop input modes
- High sampling rate for excellent play quality
- Multiple record and playback modes
- Adjustable delay times between messages
- Message abort and stop control available
- Pluggable terminal strip for easy installation
- Regeneration of zone control DTMF tones
- Message repeat function
- Pre-page tone available
- Unit status outputs indicating in-use, play, and record states
- Selectable 8- or 600-ohm output impedance
- Transformer isolated audio output
- Output power, 0.125W @ 8 ohms or +4 dBm @ 600 ohms
- Automatic or externally controlled unit operation
- Strips message zone control DTMF tones from the repeat message
- DTMF controlled abort recording function
| Audio Memory Capacity | 240 Seconds |
| Maximum Message Length | 60 Seconds |
| Message Stacking Capacity | 16 Messages |
| Audio Sampling | 12 Bit word at 16 kHz |
| Frequency Response | 100 Hz to 6.8 kHz +/-3 dB |
| Distortion | < 1.0% (THD max., typical) |
| Signal-to-Noise Ratio | 60 dB |
| Dynamic Range | 60 dB |
| Page Input/Priority Audio Input | 600-ohms, transformer-isolated, with -20dBm to +4 dBm (nominal 0 dBm) input level |
| Type | Loop start trunk or 4-wire dry loop, switch selectable |
| Connector | RJ-11 (6 position) |
| Audio Output | |
| Type | Transformer isolated, unbalanced |
| Impedance/Power | 8 ohms / 0.125W or 600 ohms / +4 dBm, switch selectable |
| Connector | RJ-11 (6 position) |
| Controls / Switches | Volume Input type (loop start / dry loop) Output impedance (8- or 600-ohm) Setup DIP switches (bank of 12) |
| External Control Inputs | Record, Play, Stop |
| Status Outputs | Record, Play, In Use |
| Status Contact Rating | 24V DC, 1A |
| LED Status Indicators | Power, Play, Record, In Use |
| Protective Fusing | 0.6A, Internal automatic reset |
| Power Consumption | 12V DC / 1Amp |
| Dimensions | 10" W x 6.75" H x 1.5" D |
| Product Weight | 3 lb. |
