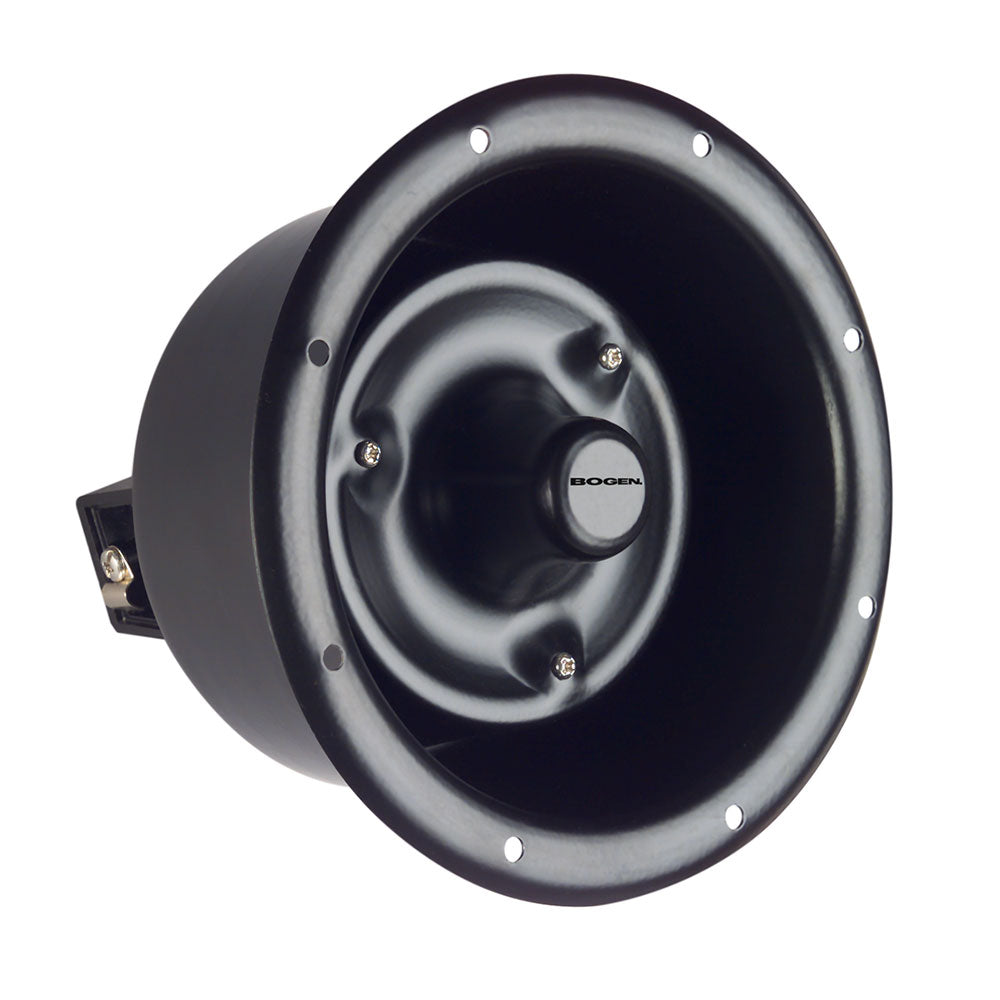

Bogen FMTH15T Flange-Mounted Reentrant Horn Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Bogen FMH15T is a flange-mounted, high intelligibility, reentrant type loudspeaker. Its sturdy, weatherproof, vandal-resistant, all-metal construction is ideal for indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas. The Model FMH15T has a built-in, rotary impedance selector switch for matching the speaker power requirements to a 70V or 25V constant-voltage line. Screw terminals make installation fast and easy. Accessory flush- or surface-mount enclosures, heavyduty cast aluminum grille and adapter ring are available to complete the installation of this unique speaker. Field maintenance is accomplished using a self-aligning, field replaceable diaphragm.
Features:
- Excellent voice intelligibility and efficiency
- Flange-mounted, reentrant type loudspeaker
- Weatherproof design for indoor or outdoor use
- Vandal-resistant, for applications in hostile environments
- All-metal construction with black enamel finish
- 15 watts max. @ 70V or 25V
- Weather-sealed variable-tap impedance selector switch
- Power levels are: 15, 7.5, 3.6, 1.8, or 0.9 watts for 70V systems and 15, 7.0, 1.8, 0.9, 0.5, 0.25, or 0.125 watts for 25V systems
- Screw terminals for fast and easy installation
- Self-aligning, field replaceable diaphragm for easy field maintenance
- Select flush (BBFM6) or surface (BBSM6) mount enclosure for installation (each sold separately)
- Heavy-duty cast aluminum grille (SGHD8) and adapter ring (FMHAR8) for installation (each sold separately)
| Power Rating (RMS) | 15 watts continuous |
| Frequency Response | 600Hz to 14 kHz |
| Impedance | 70/25 volts |
| Power Taps | 70V: 15, 7.5, 3.6, 1.8, or 0.9 watts 25V: 15, 7.0, 1.8, 0.9, 0.5, 0.25, or 0.125 watts |
| Sound Pressure Level | 115 dB @ 1m on axis @ 15 watts 104 dB @ 1m on axis @ 1 watt |
| Dispersion | 100¼ |
| Controls | Tap selector switch |
| Connections | Screw terminals |
| Dimensions | Flange dia.: 6-7/8" Body dia.: 5-3/8" Depth: 5-1/2" Mounting hole pattern: dia.: 6-1/8" Mounting hole spacing: 45¼ from adjacent hole |
| Product Weight | 3 lb. |
| Finish | Black enamel |
The Bogen FMH15T is a flange-mounted, high intelligibility, reentrant type loudspeaker. Its sturdy, weatherproof, vandal-resistant, all-metal construction is ideal for indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas. The Model FMH15T has a built-in, rotary impedance selector switch for matching the speaker power requirements to a 70V or 25V constant-voltage line. Screw terminals make installation fast and easy. Accessory flush- or surface-mount enclosures, heavyduty cast aluminum grille and adapter ring are available to complete the installation of this unique speaker. Field maintenance is accomplished using a self-aligning, field replaceable diaphragm.
Features:
- Excellent voice intelligibility and efficiency
- Flange-mounted, reentrant type loudspeaker
- Weatherproof design for indoor or outdoor use
- Vandal-resistant, for applications in hostile environments
- All-metal construction with black enamel finish
- 15 watts max. @ 70V or 25V
- Weather-sealed variable-tap impedance selector switch
- Power levels are: 15, 7.5, 3.6, 1.8, or 0.9 watts for 70V systems and 15, 7.0, 1.8, 0.9, 0.5, 0.25, or 0.125 watts for 25V systems
- Screw terminals for fast and easy installation
- Self-aligning, field replaceable diaphragm for easy field maintenance
- Select flush (BBFM6) or surface (BBSM6) mount enclosure for installation (each sold separately)
- Heavy-duty cast aluminum grille (SGHD8) and adapter ring (FMHAR8) for installation (each sold separately)
| Power Rating (RMS) | 15 watts continuous |
| Frequency Response | 600Hz to 14 kHz |
| Impedance | 70/25 volts |
| Power Taps | 70V: 15, 7.5, 3.6, 1.8, or 0.9 watts 25V: 15, 7.0, 1.8, 0.9, 0.5, 0.25, or 0.125 watts |
| Sound Pressure Level | 115 dB @ 1m on axis @ 15 watts 104 dB @ 1m on axis @ 1 watt |
| Dispersion | 100¼ |
| Controls | Tap selector switch |
| Connections | Screw terminals |
| Dimensions | Flange dia.: 6-7/8" Body dia.: 5-3/8" Depth: 5-1/2" Mounting hole pattern: dia.: 6-1/8" Mounting hole spacing: 45¼ from adjacent hole |
| Product Weight | 3 lb. |
| Finish | Black enamel |
