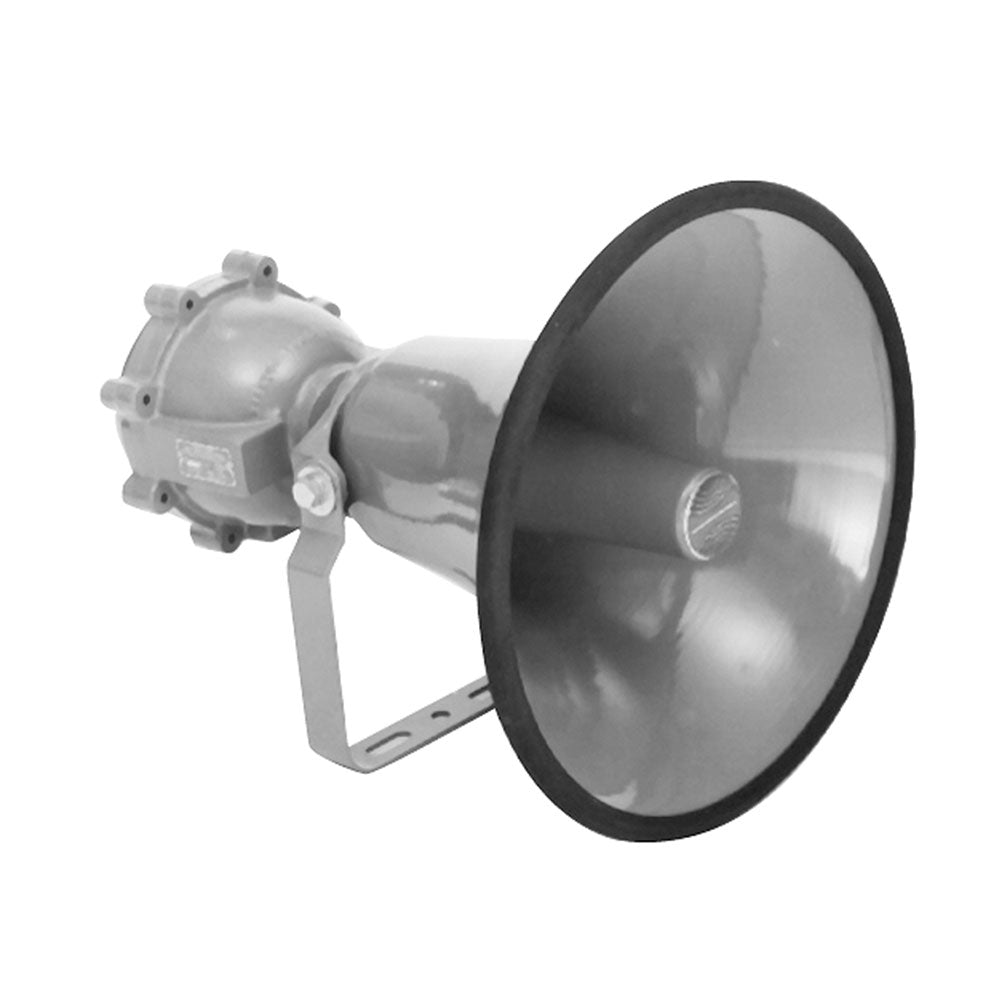

Bogen GA-MLE3-E32 Explosion Proof 30-Watt Paging Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Bogen Model GA-MLE3-E32 is used to designate the Atlas Sound® explosion-proof compression driver/horn assembly Models MLE-3T and MLE-32 when specifying and ordering through Bogen. These assemblies are engineered for high-efficiency voice and electronic signal communication in hazardous areas. Drivers, which are protected within a rugged die-cast aluminum housing, have 30-watt power handling, and are equipped with 1/2" conduit access and an adjustable mounting bracket. The spun aluminum bell provides a 95-degree circular distribution emphasis. Install this loudspeaker to efficiently and safely communicate in combustible and dust-filled areas. Driver complies with the regulations governing electrical equipment at hazardous locations as set forth by the National Electric Code. Driver listed by UL.
Features:
- Explosion-proof loudspeaker for signal and communications systems
- Internally mounted, factory-installed transformer
- 30-watt high-intelligibility driver in cast aluminum housing
- Efficiency of reflex-style projectors with wide angle or circular sound dispersion
| Power Rating | 30 watts |
| Frequency Response | 200 Hz to 10 kHz |
| Sound Level | 110 dB (1W/1m) |
| Sensitivity | -20 dBm |
| Dispersion | 95 degrees |
| Impedance | 8 ohms |
| Internal Transformer | 30 watts, Model T-20 |
| Assembly Size | 16-1/2Ó x (42 x 54.6 cm) |
| UL Listings | Class 1 / Division 1 / Group B, C / D for atmospheres containing Gas Atmospheres (including ethyl, ether, gasoline naphtha, alcohols, butane, propane) plus Hydrogen, Gas, and Vapor (manufactured gas) |
Bogen Model GA-MLE3-E32 is used to designate the Atlas Sound® explosion-proof compression driver/horn assembly Models MLE-3T and MLE-32 when specifying and ordering through Bogen. These assemblies are engineered for high-efficiency voice and electronic signal communication in hazardous areas. Drivers, which are protected within a rugged die-cast aluminum housing, have 30-watt power handling, and are equipped with 1/2" conduit access and an adjustable mounting bracket. The spun aluminum bell provides a 95-degree circular distribution emphasis. Install this loudspeaker to efficiently and safely communicate in combustible and dust-filled areas. Driver complies with the regulations governing electrical equipment at hazardous locations as set forth by the National Electric Code. Driver listed by UL.
Features:
- Explosion-proof loudspeaker for signal and communications systems
- Internally mounted, factory-installed transformer
- 30-watt high-intelligibility driver in cast aluminum housing
- Efficiency of reflex-style projectors with wide angle or circular sound dispersion
| Power Rating | 30 watts |
| Frequency Response | 200 Hz to 10 kHz |
| Sound Level | 110 dB (1W/1m) |
| Sensitivity | -20 dBm |
| Dispersion | 95 degrees |
| Impedance | 8 ohms |
| Internal Transformer | 30 watts, Model T-20 |
| Assembly Size | 16-1/2Ó x (42 x 54.6 cm) |
| UL Listings | Class 1 / Division 1 / Group B, C / D for atmospheres containing Gas Atmospheres (including ethyl, ether, gasoline naphtha, alcohols, butane, propane) plus Hydrogen, Gas, and Vapor (manufactured gas) |
