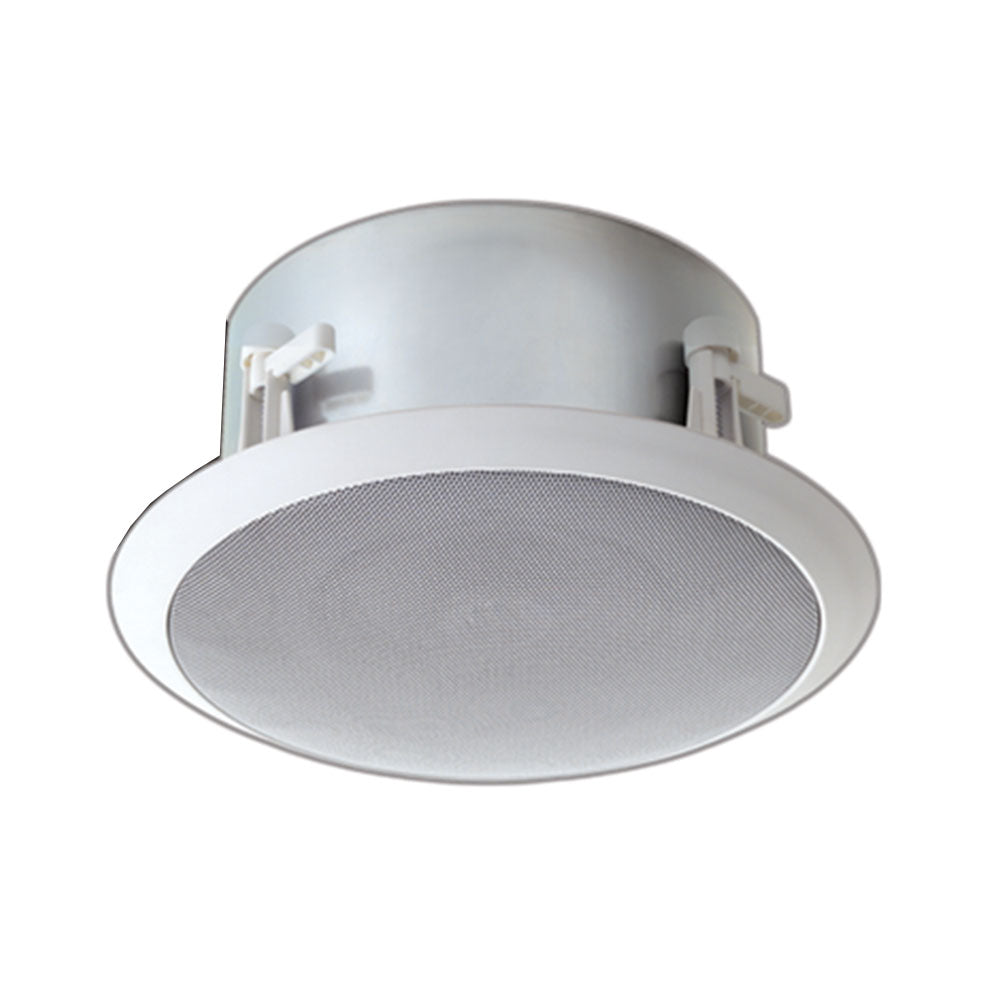

Bogen HFCS1LP Low Profile Ceiling Speaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Bogen HFCS1LP ceiling loudspeakers deliver superior sound and clear intelligibility in a variety of ceiling environments. The system can be easily installed in hard-surfaced ceilings, suspended ceilings, and new constructions. Both speakers offer several levels of power output controlled via a front-mounted rotary tap selector switch (under grille). The low-distortion speaker design, coupled with a computer-matched venting system, delivers high intelligibility and exceptional low-frequency response for both music and speech reinforcement.
Features:
- Wide-dispersion coaxial driver for broad, even coverage
- Good off-axis response with smooth contouring
- Computer-matched venting system for full bass output
- Low-profile housing allows greater range of installations
- High power handling capability for foreground sound
- Selectable power taps via front-mounted control
- Power taps (in watts): 32, 16, 8, 4, 2, and 1 for 70V; 32, 16, 8, 4, and 2 for 100V
- 16-ohm input for non-transformer, multi-speaker systems (selectable via tap selector switch)
- Compounded rubber surround, plus polypropylene and polycarbonate drivers for lasting performance
- Easy wiring with plug-in connector
- Integral swing-out clamps for easy installation
- Connector provides loop-through terminals for the next speaker
- Attachment point for seismic cable (safety cable)
- Input terminal cover with knockouts and safety eyelet provides protection for connections
- Off-white or Black textured finish easily painted to match theme decor
- Attractive, contemporary, sturdy steel grille assembly with fine perforations
- Listed to UL Standard 60065 for US and Canada
- Independently tested and meets requirements of UL-2043 (report available)
- Accessory tile bridge support ring (Model TBCR, sold separately)
- Accessory 10-foot long cable kit (Model CK10, sold separately)
| Frequency Response (-10 dB) | 78 Hz to 19 kHz |
| LF Driver | 6-1/2" (165mm) Polypropylene Cone |
| HF Driver | 3/4" (20mm) Polycarbonate Dome |
| Sensitivity (1W/1m) | 89 dBspl (Average 100 Hz - 10 kHz) |
| Impedance Ratings | Low (16 ohms) / High (70V/100V) |
| Power Input (Max.) | 75W @ 16 ohms; 32W @ 70V/100V |
| Power Settings (in watts) | 70V: 32, 16, 8, 4, 2, 1 / 100V: 32, 16, 8, 4, 2 |
| Baffle Material | Fire-rated (94VO) ABS |
| Back Can Material | Heavy-Gauge Steel |
| Terminations | 4 Terminal Plug-in Input Connector |
| Product Weight | 8 lb. |
| Speaker Dimensions | 12-5/16" dia. x 7-3/4" D |
| Minimum Vertical Clearance Requirement | 6-3/4" |
| Included Accessories | Input Terminal Cover (2 Halves); (4) Screws; (1) Plug-in Input Connector |
| Optional Accessories | Tile Bridge Support Ring (TBCR); Cable Kit (CK10) |
| Baffle Ring / Grille | Color Off-white or Black |
