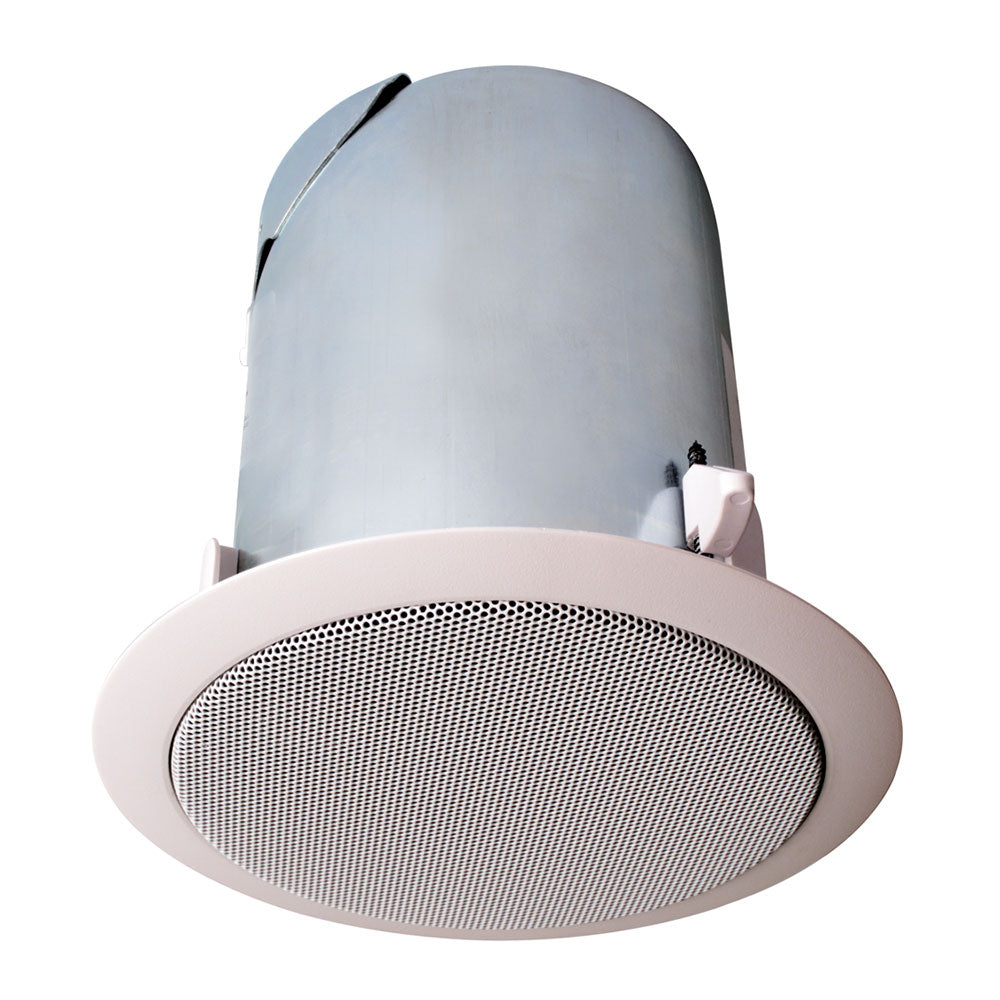

Bogen HFSF1 High-Fidelity Small-Footprint Ceiling Speaker


  • Dale #:

    BOGE-HFSF1
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Bogen HFSF1 High-Fidelity, Small-Footprint Ceiling Loudspeaker delivers superior sound in a very compact enclosure. The speaker measures 7-1/4" diameter and mounts easily in all types of ceilings – including existing hard-surfaced types and suspended type. Several levels of power output can b... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Bogen HFSF1 High-Fidelity, Small-Footprint Ceiling Loudspeaker delivers superior sound in a very compact enclosure. The speaker measures 7-1/4" diameter and mounts easily in all types of ceilings – including existing hard-surfaced types and suspended type. Several levels of power output can be controlled directly from the front baffle via a rotary tap selector switch under the grille. The low-distortion, coaxial-design speaker, coupled with a computer-matched venting system, delivers superb fidelity for music as well as high intelligibility for voice reinforcement. Coupled with the Bogen CSUB Ceiling Subwoofer, it provides the perfect solution for environments that require the highest-quality sound with minimal visual impact.

Features:

  • Superior sound in a very compact enclosure
  • Wide-dispersion coaxial driver for broad, even coverage; superb off-axis response
  • Small footprint, only 7-1/4" diameter speaker face
  • Installs in wide range of ceiling types
  • For 70V and low-impedance systems
  • Selectable power taps via front-mounted control (under grille); 16, 8, 4, 2, 1 watts at 70V
  • 16-ohm Input setting for low-impedance systems (selectable via front-mounted control, under grille)
  • Quick wiring with removable plug-in connector
  • Plug-in connector provides loop-through terminals for next speaker
  • Terminal cover provides knockout for flexible conduit connection
  • Compounded rubber surround for lasting performance year after year
  • Ceiling insert of hole of 6-1/4" diameter required for speaker
  • Integral mounting clamps tighten quickly and firmly
  • Attachment point for seismic safety cable
  • Off-white textured finish easily painted to match room decor
  • Available accessories: Tile Bridge Support (TBSF), Safety Cable (CK10), both sold separately

More +

Product Specs

Frequency Response 78 Hz to 20 kHz
LF Driver 4" Polypropylene cone with rubber surround
HF Driver 3/4" Polycarbonate dome
Sensitivity (1W/1m) 86 dBspl
Dispersion 150 degrees
Impedance Ratings Low (16 ohms), High (70V)
Power Input (Max.) 50W at 16 ohms, 16W at 70V
Power Settings 70V: 16, 8, 4, 2, 1 Watts
Baffle/Bezel Material Fire-rated (94V0) ABS
Back Enclosure Heavy-gauge steel
Grille Material Powder-coated, perforated metal
Color Off-white, paintable
Terminations 4-Terminal Snap-lock input connector
Product Weight 4.5 lb.
Dimensions 7-1/4" Dia. × 7-1/2" D
Ceiling Cutout 6-1/4" Dia.
Accessories Included Snap-lock input connector (1)
Steel terminal cover (1), with (2) mounting screws
Optional Accessories Suspension/Safety Cable (CK10)
Tile Bridge Support (TBSF)
