Bogen HTA250A MOSFET Single Channel Power Amp 250 Watt 4/8 Ohms, 25VCT / 70V outputs


  • Dale #:

    BOGE-HTA250A
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The Bogen HTA250A Power Amplifier is a highperformance unit employing Power MOSFET technology. The unique characteristics of Power MOSFETS make them ideally suited to power amplifier design,providing far superior performance and reliability compared to other types of transistors. They offer highe... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

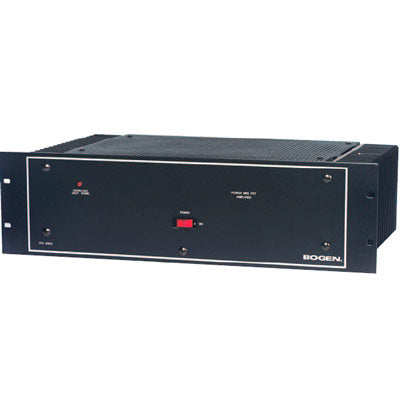

The Bogen HTA250A Power Amplifier is a highperformance unit employing Power MOSFET technology. The unique characteristics of Power MOSFETS make them ideally suited to power amplifier design,providing far superior performance and reliability compared to other types of transistors. They offer higher efficiency, reduced heat, simpler overall design, reduced size and weight.

features:
  • Power MOSFET circuitry
  • Capable of continuous operation at rated output power
  • Frequency response ±1dB, 20 - 20,000 Hz at full rated output
  • Distortion less than 0.5% THD, 20 - 20,000 Hz
  • Multiple output voltages/impedances available
  • Automatic overload protection
  • UL listed

More +

Product Specs

Rated Output Power250 watts rms
Total Harmonic DistortionLess than 0.5%, 20 - 20,000 Hz
Frequency Response±1 dB, 20 - 20,000 Hz at full rated output
Input SensitivityHigh impedance, 500mV; Low impedance balanced, with optional transformer, 150mV
Hum and Noise90dB below rated output
Output Loads4 ohms, 8 ohms, 25VCT (2.5 ohms), 70V (20 ohms)
Output RegulationBetter than 2 dB from no load to full load
Input ImpedancesHi-Z, 50,000 ohms unbalanced; Lo-Z, 600 ohms, balanced or unbalanced, and 1:1 bridging with optional plug-in transformers
Low-Cut Filter-10 dB @ 100 Hz
Controls & IndicatorsFront panel illuminated power and shutdown LED indicators Rear Panel Input level control, Slo-Blo fuse Internal Low-Cut filter switch
Power Requirements120V AC, 60 Hz, 520 watts @ Full Rated Output (Idle, 60W)
Overload ProtectionElectronic overload protection;Electrical 7A Slo-Blo Fuse;Thermal 105° C (220° F) Thermostat
Operating Temperature Range-20°C (-4°F) to +49°C (+120°F) at rated output
Auxiliary Receptacle (not switched)Three-wire grounded*, 300 watts maximum
Dimensions (without removable feet)19" W x 11" D x 5-1/4" H (48.3 x 27.9 x 13.3 cm)
FinishBlack
Weight50 lb. (22.7 kg)
AccessoriesModel TL600, line-matching transformer; Model TL100,1:1 line-matching transformer
