Description

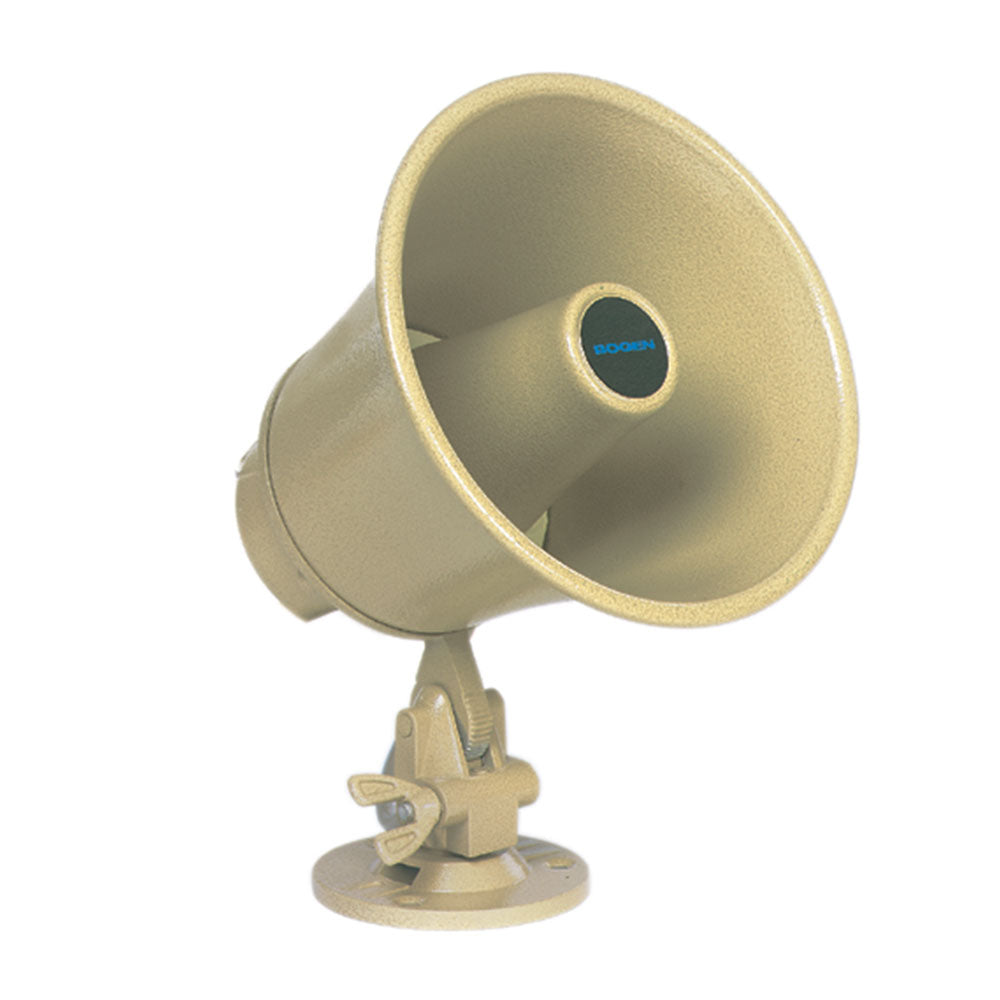

The Bogen Model IH8A is a double reentrant horn-type loudspeaker designed for paging applications. Excellent intelligibility, handsome compact styling, and all metal, weatherproof construction make the model IH8A perfect for use indoors or outdoors with Bogen sound equipment. A detachable mounting bracket, which includes a wing-nut locking device, provides precise positioning of the horn in the vertical and horizontal planes.The unit is finished in textured mocha enamel.
Features:
- High intelligibility and efficiency
- Weatherproof, all metal construction
- 12" connecting cable for easy installation
| Power Rating | 15 watts |
| Frequency Response | 350Hz to 12kHz |
| Input Impedance | 8 ohms |
| Dispersion | 130¡ |
| Sound Pressure Level | 120dB @ 4 feet on axis with 15-watt input at 1000Hz |
| Dimensions | 6-1/4" diameter bell x 6"D |
| Product Weight | 2-1/2 lbs |
The Bogen Model IH8A is a double reentrant horn-type loudspeaker designed for paging applications. Excellent intelligibility, handsome compact styling, and all metal, weatherproof construction make the model IH8A perfect for use indoors or outdoors with Bogen sound equipment. A detachable mounting bracket, which includes a wing-nut locking device, provides precise positioning of the horn in the vertical and horizontal planes.The unit is finished in textured mocha enamel.
Features:
- High intelligibility and efficiency
- Weatherproof, all metal construction
- 12" connecting cable for easy installation
| Power Rating | 15 watts |
| Frequency Response | 350Hz to 12kHz |
| Input Impedance | 8 ohms |
| Dispersion | 130¡ |
| Sound Pressure Level | 120dB @ 4 feet on axis with 15-watt input at 1000Hz |
| Dimensions | 6-1/4" diameter bell x 6"D |
| Product Weight | 2-1/2 lbs |
