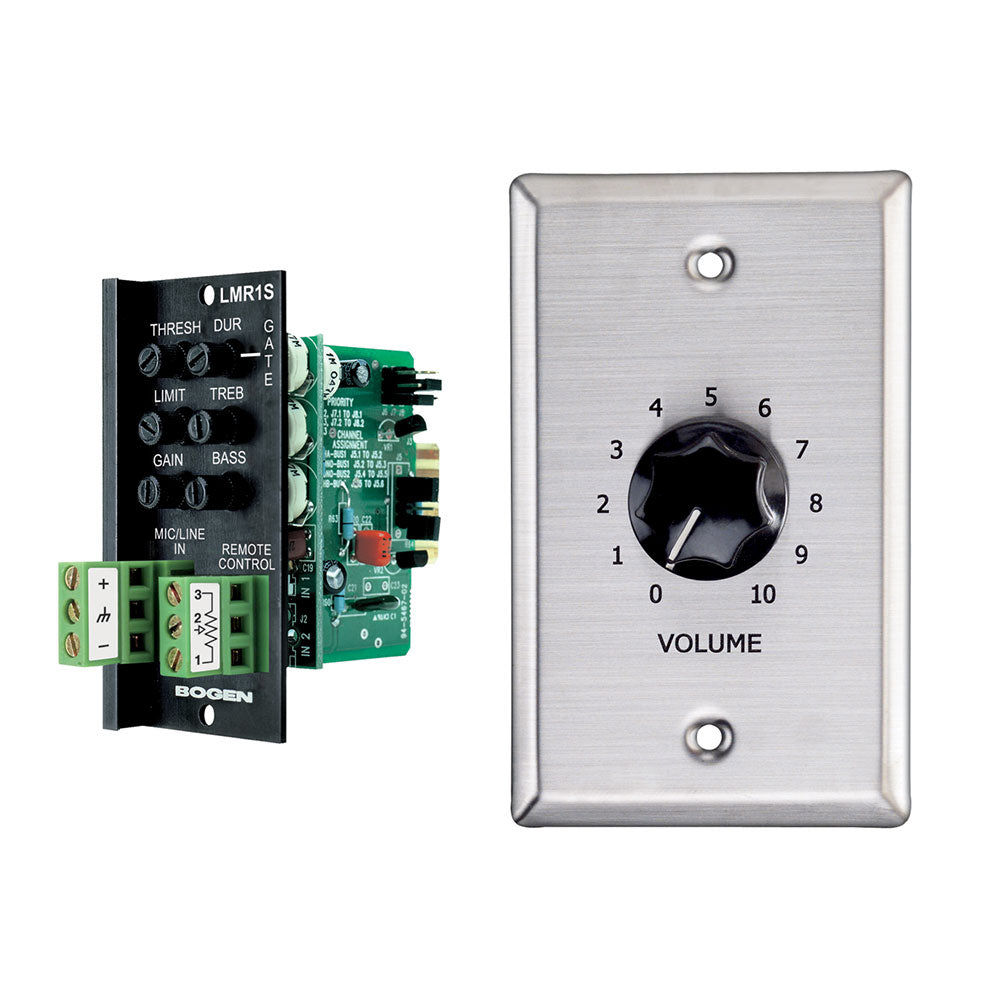

Bogen LMR1S Actively-Balanced Mic/Line Input Module with Wall Remote (for Bogen Matrix Systems)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Bogen's advanced plug-in modules provide a wide range of functions to support a variety of applications. These modules support different signal-source requirements, including the ability to interface to balanced and unbalanced high- and low-level inputs, stereo or mono, telco systems, and microphones.
Features:
- Gain control
- Bass & Treble controls
- Actively-balanced input
- LINE/MIC Attenuator switch
- Gating w/Threshold & Duration
- 24V Phantom power supply
- 4 Priority levels
- Bus assignable
- Built-in limiter w/ LED
- Remote controlled volume
- Single-gang remote control panel included
- Remote distance up to 2,000 Ft.
- Screw terminal connectors
| Gain | 18 dB to 60 dB (MIC) -2 dB to 40 dB (LINE) |
| Frequency Response | 20 Hz to 50 kHz (+0/-3 dB) |
| S/N (20 Hz - 20 kHz) | -74 dBV @ 60 dB gain |
| Distortion | < 0.03% |
| Input Impedance | 15K LINE mode 2K MIC mode |
| Gate Threshold | 2 to 25mV @ min. gain |
| Gate Duration | 0.5s to 5s |
| Priority | Four levels |
| Tone | ± 10 dB @ 100 Hz / 10 kHz |
| CMRR | > 80 dB @ 1 kHz |
| Controls | Gain, Bass, Treble, Limit, Threshold, Duration |
| Limit (threshold) | -16 dBV to off |
| Remote Voltage | 0 to 4.5V DC |
| Remote Loop Current | 0.5mA |
| Max. Distance | 200 Ft. (2 Conductor), 2,000 Ft. (3 Conductor Shielded) |
| Connector | Fixed Euro Screw Type |
| Dimensions | 1-3/8" W x 3-1/8" H x 3-1/2" D |
| Weight | 2.6 oz. |
