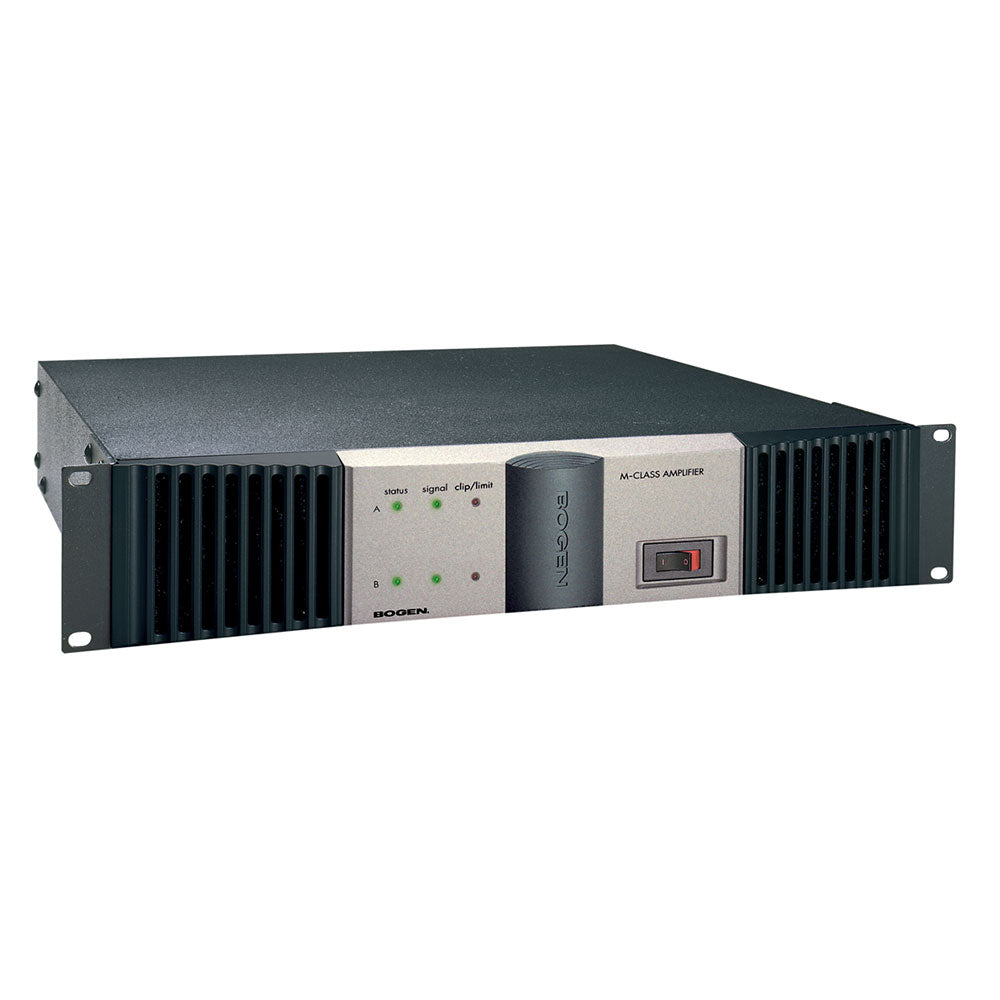

Bogen M300 Dual-Channel Install Power Amplifier with Modular Input Options


  • Dale #:

    BOGE-M300
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Bogen's M-Class delivers on what professional sound installers need most – Flexibility, Power, and Reliability. Flexibility – 3 modes of operation: Stereo, 70V Mono, or Dual Mono; and 2 modular input bays for a variety of prioritized input types. Power – up to 600W/ch stereo or 1200W of 70V mono ... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Bogen's M-Class delivers on what professional sound installers need most – Flexibility, Power, and Reliability. Flexibility – 3 modes of operation: Stereo, 70V Mono, or Dual Mono; and 2 modular input bays for a variety of prioritized input types. Power – up to 600W/ch stereo or 1200W of 70V mono power. Reliability – Massive power toroid and heat sinks; heavy 14-gauge chassis; patented Back-Slope™ AC voltage stabilization; Clip limiters, DC voltage, over-current, and thermal protection circuits.

Features:

  • Mono power: 600W for 70V speaker systems
  • Stereo power: 300W per channel @ 4 ohms
  • 3 modes of operation to choose from - Stereo, Dual Mono, or 70V Mono
  • Low noise, low distortion, and high slew rate
  • Flexible modular input capability (2 module capacity)
  • Professional, dual-channel (balanced or unbalanced), high-impedance input module with gain selection included
  • 3 selectable low-frequency, roll-off choices
  • 2x1 mixer function when in mono modes
  • Insert connections for outboard equipment (in mono modes)
  • Post- and Pre-EQ Output Feeds (summed mono out in stereo mode)
  • DC, overload, short circuit, and thermal protection circuits
  • Clip limiting circuits for speaker protection
  • Power-saving Sleep Mode for intermittent use applications
  • Status, Signal, and Clip/Limit indicators
  • Back-Slope AC voltage stabilization for dependable performance over varying AC line voltage
  • Heavy-gauge steel chassis with cast aluminum front panel
  • Recessed volume control knobs with snap-on protective cover
  • Mounts in 2 rack spaces (3-1/2") directly stackable without need for extra space above or below
  • 2 independent, continuously variable, cooling fans for dependable and quiet operation
  • Easily removable front fan grilles with filters
  • Stable into 2-ohm loads
  • Listed to UL Standard 60065 for US and Canada

More +

Product Specs

Power Output 70V Mono: 600W @ 8 ohms
4-ohm: 300W per channel
8-ohm: 200W per channel
Input Sensitivity
At Backplane Connector or using Standard Input Module (incl.)
0.840V for 300W @ 4 ohms
S/N Ratio (20kHz BW) 103 dB ref. 8 ohms, F.P.
Class of Operation AB
Product Weight 41 lb.

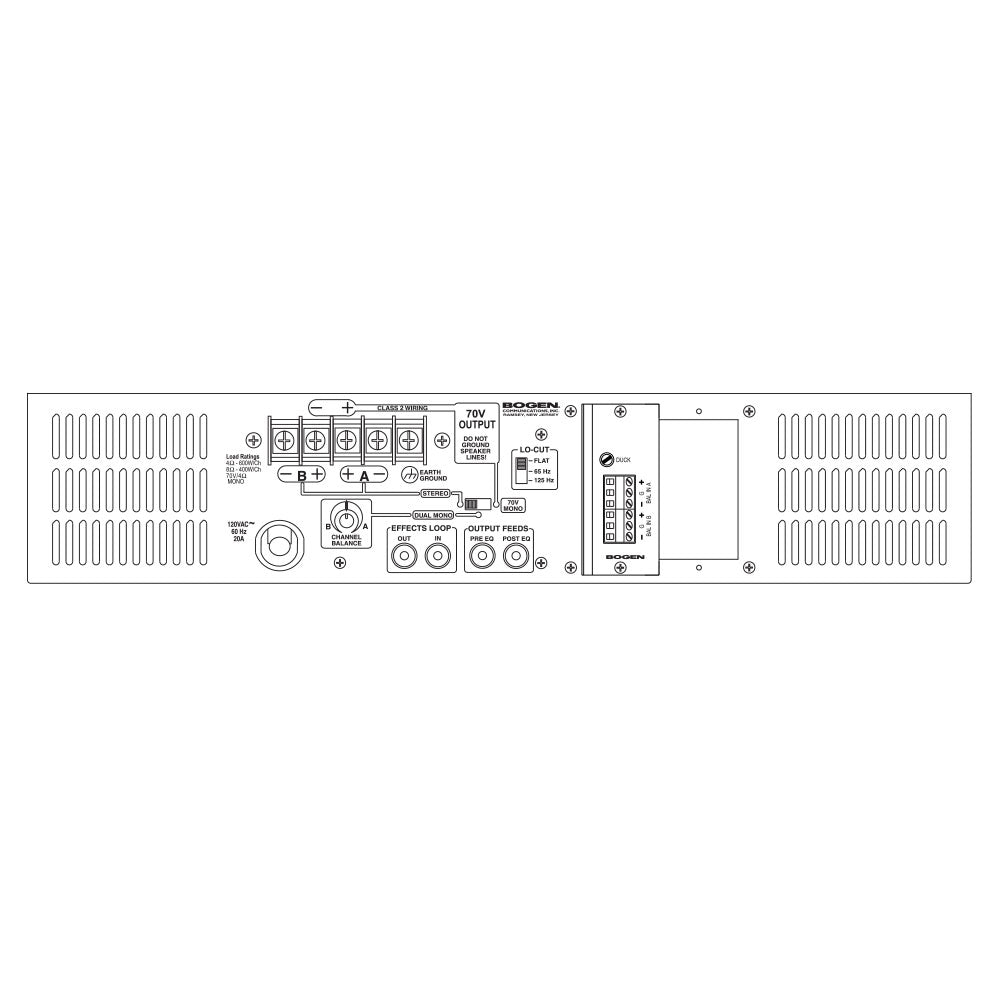

Connectors
Power 15A line cord
Input Dependent on modules installed (stereo, high-impedance balanced input module w/screw terminals included) /RCA (Mono/70V mode, unbalanced)
Output 5-pin "touch-proof" Barrier Strip, RCA Pre- & Post-EQ Output
Power Bandwidth 20 Hz to 40 kHz .5% THD
THD @ 1 kHz rated power less than .02%
Load Impedance 4-8 ohms, 70V
Minimum Load Impedance (Stereo) 3.2 ohms
Frequency Response @ 1 watt 20 Hz to 20 kHz +/- 0.25 dB
Output Regulation 1 kHz direct: 0.5 dB @ 8 ohms
1 kHz bridged: 1.5 dB @ 70V
Inputs (Plug-in modules) Electronically balanced, high-impedance module standard, other modular input types available
AC Input Voltage Range 95 to 130V AC, 60Hz
Maximum AC Current 12A
Indicators Status (On/Protect/Sleep), Clip/Limit, Signal
Temperature Range 15 to 105 degrees F
Thermal Emissions 1195 BTU/hr.
Cooling Forced Air Variable Speed Fan
Physical Dimensions (W x H x D) 17" X 3-1/2" x 18-1/2" (not including brackets)
Protection RF, DC, Low-frequency, Thermal, Low-Impedance, Circuit-Breaker, Short Circuit
Special Features Sleep Mode, Back-Slope regulation, Stereo, Dual Mono, 70V Mono Operation, Toroidal Power Transformer
