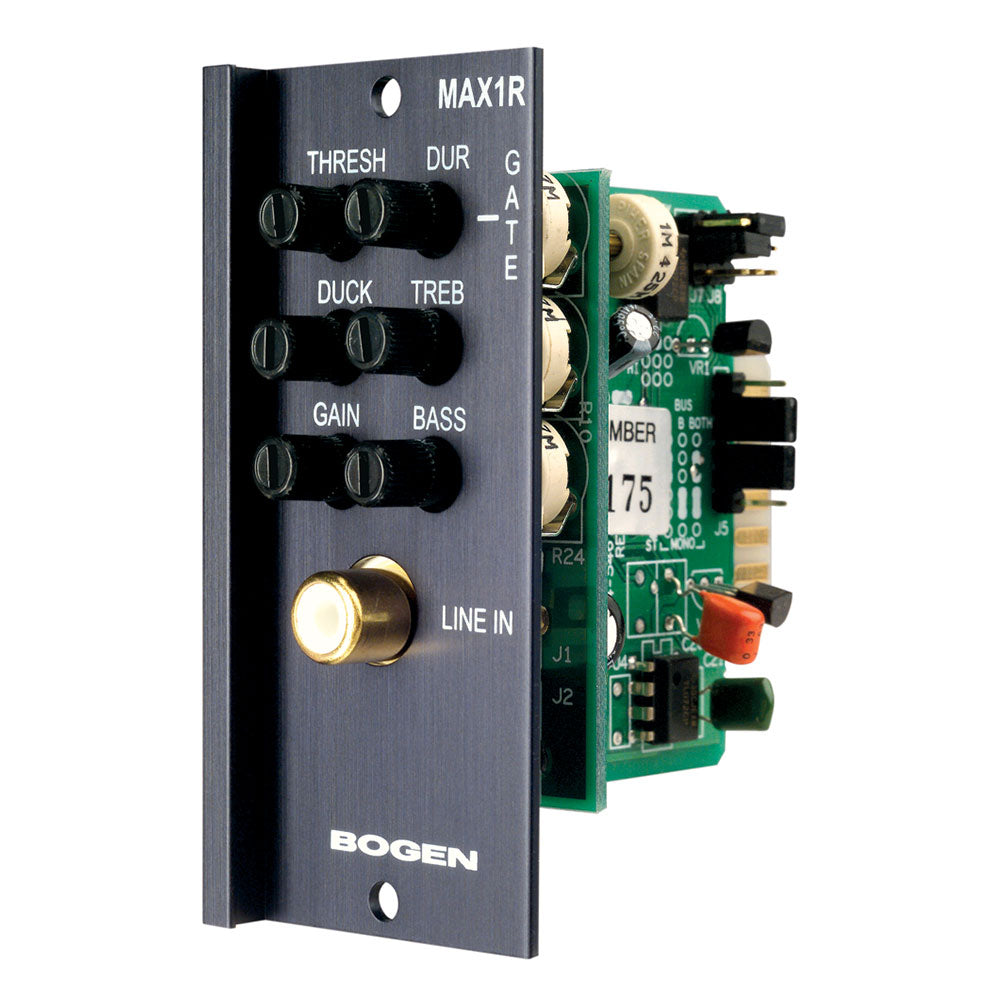

Bogen MAX1 Mono Auxiliary Input Module (for Bogen Matrix Systems)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Bogen's advanced plug-in modules provide a wide range of functions to support a variety of applications. These modules support different signal-source requirements, including the ability to interface to balanced and unbalanced high- and low-level inputs, stereo or mono, telco systems, and microphones.
Features:
- Bass & Treble controls
- Gating w/Threshold & Duration
- Mute send & receive
- Variable ducking level when muted/gated
- Fade back from mute/gate
- 4 Priority levels
- Bus assignable
- RCA connectors
| Gain | -20 dB to 6 dB |
| Frequency Response | +0/-3 dB, 5 Hz-100 kHz |
| S/N (20 Hz - 20 kHz) | -100 dBV |
| Distortion | < 0.005%, 20 Hz-20 kHz |
| Input Impedance | 50k ohms |
| Tone | ±10 dB @ 100 Hz / 10 kHz |
| Ducking (level) | -10 dB to -48 dB |
| Gate Threshold | 3 mV to 30 mV |
| Gate Duration | 0.5s to 5s |
| Priority | Four levels |
| Controls | Gain, Bass, Treble, Ducking, Gate Threshold, Gate Duration |
| Connector | RCA type |
| Dimensions | 1-3/8" W x 3-1/8" H x 3-1/2" D |
| Weight | 2.6 oz. |
