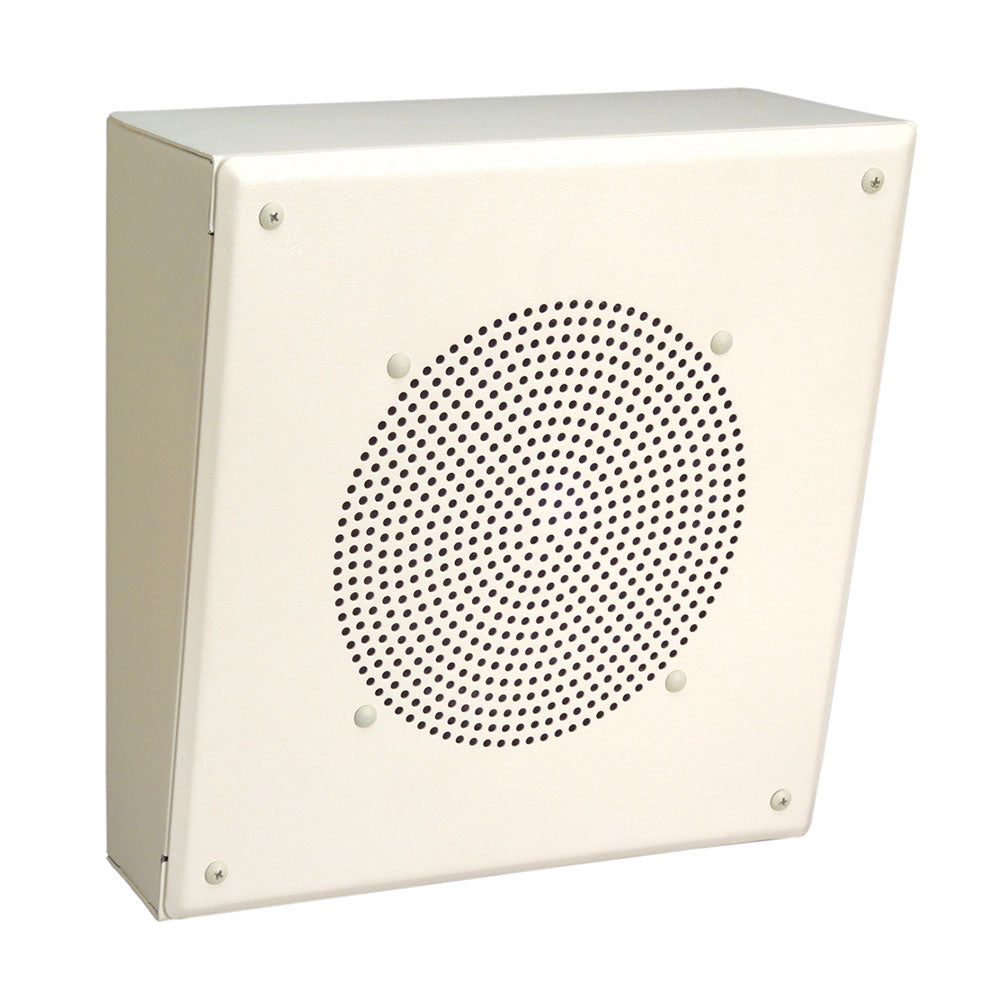

Bogen MB8TSL Slanted Wall-Mount Metal Box Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Bogen's MB8TSQ and MB8TSL speakers feature an all-steel surface-mounted enclosure with an 8" cone loudspeaker and multi-tap 4-watt 70V/25V transformer. The MB8TSQ speakers are suitable for ceiling or wall mounting. The MB8TSL speakers are designed primarily for wall mounting, with front face angled downward by 12.5 degrees.
Features:
- Rugged all-steel surface-mounted enclosure
- Full range 8" cone speaker for excellent intelligibility
- Compatible with 25V or 70V amplifier systems
- Multiple taps at 4, 2, 1, 1/2, 1/4, 1/8 watts
- 4-Watt maximum output power
- Mounting hardware included (toggle bolts, wood screws and wire crimps)
- Knockouts for Wiremold®
| Cone Diameter | 8" (paper) |
| Magnet Weight | 6 oz. |
| Power Rating (max.) | 4 Watts |
| Transformer Power Taps | 4, 2, 1, 1/2, 1/4, 1/8 Watts |
| Constant Voltage Amp Type | 70V or 25V |
| Frequency Response | 110 Hz -15 kHz |
| Sensitivity (min.) | 96 dBspl (1W @ 1m on axis) |
| Dispersion (min.) | 100¡ |
| Product Weight | 9 lb. |
| Enclosure Size | Top: 11-5/8" W X 11-5/8" H X 5-3/8" D Bottom: 11-5/8" W X 11-5/8" H X 3-1/8" D |
| Construction | Painted steel enclosure |
Bogen's MB8TSQ and MB8TSL speakers feature an all-steel surface-mounted enclosure with an 8" cone loudspeaker and multi-tap 4-watt 70V/25V transformer. The MB8TSQ speakers are suitable for ceiling or wall mounting. The MB8TSL speakers are designed primarily for wall mounting, with front face angled downward by 12.5 degrees.
Features:
- Rugged all-steel surface-mounted enclosure
- Full range 8" cone speaker for excellent intelligibility
- Compatible with 25V or 70V amplifier systems
- Multiple taps at 4, 2, 1, 1/2, 1/4, 1/8 watts
- 4-Watt maximum output power
- Mounting hardware included (toggle bolts, wood screws and wire crimps)
- Knockouts for Wiremold®
| Cone Diameter | 8" (paper) |
| Magnet Weight | 6 oz. |
| Power Rating (max.) | 4 Watts |
| Transformer Power Taps | 4, 2, 1, 1/2, 1/4, 1/8 Watts |
| Constant Voltage Amp Type | 70V or 25V |
| Frequency Response | 110 Hz -15 kHz |
| Sensitivity (min.) | 96 dBspl (1W @ 1m on axis) |
| Dispersion (min.) | 100¡ |
| Product Weight | 9 lb. |
| Enclosure Size | Top: 11-5/8" W X 11-5/8" H X 5-3/8" D Bottom: 11-5/8" W X 11-5/8" H X 3-1/8" D |
| Construction | Painted steel enclosure |
