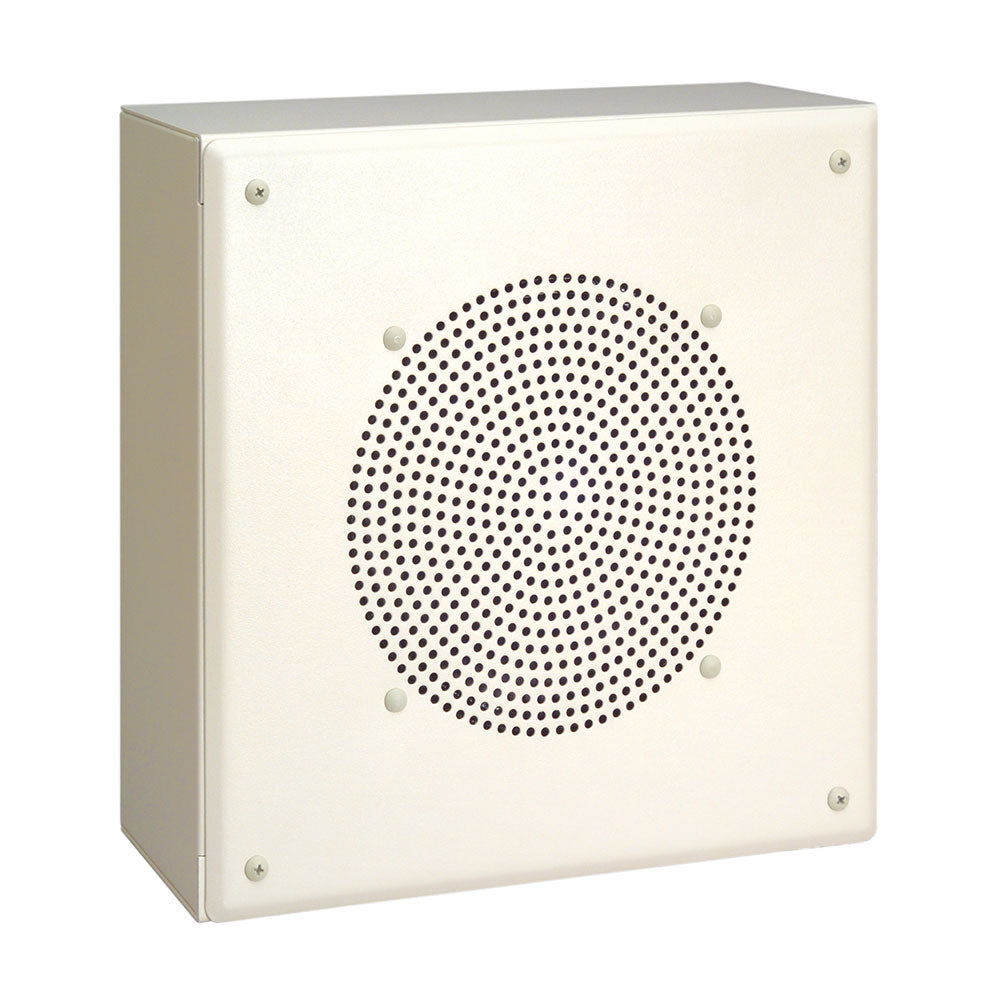

Bogen MB8TSQ Square Wall-Mount Metal Box Speaker


  • Dale #:

    BOGE-MB8TSQ
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Bogen's MB8TSQ and MB8TSL speakers feature an all-steel surface-mounted enclosure with an 8" cone loudspeaker and multi-tap 4-watt 70V/25V transformer. The MB8TSQ speakers are suitable for ceiling or wall mounting. The MB8TSL speakers are designed primarily for wall mounting, with front face angl... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Bogen's MB8TSQ and MB8TSL speakers feature an all-steel surface-mounted enclosure with an 8" cone loudspeaker and multi-tap 4-watt 70V/25V transformer. The MB8TSQ speakers are suitable for ceiling or wall mounting. The MB8TSL speakers are designed primarily for wall mounting, with front face angled downward by 12.5 degrees.

Features:

  • Rugged all-steel surface-mounted enclosure
  • Full range 8" cone speaker for excellent intelligibility
  • Compatible with 25V or 70V amplifier systems
  • Multiple taps at 4, 2, 1, 1/2, 1/4, 1/8 watts
  • 4-Watt maximum output power
  • Mounting hardware included (toggle bolts, wood screws and wire crimps)
  • Knockouts for Wiremold®

More +

Product Specs

Cone Diameter 8" (paper)
Magnet Weight 6 oz.
Power Rating (max.) 4 Watts
Transformer Power Taps 4, 2, 1, 1/2, 1/4, 1/8 Watts
Constant Voltage Amp Type 70V or 25V
Frequency Response 110 Hz -15 kHz
Sensitivity (min.) 96 dBspl (1W @ 1m on axis)
Dispersion (min.) 100°
Product Weight 9 lb.
Enclosure Size 1-5/8" W X 11-5/8" H X 4-1/4" D
Construction Painted steel enclosure
