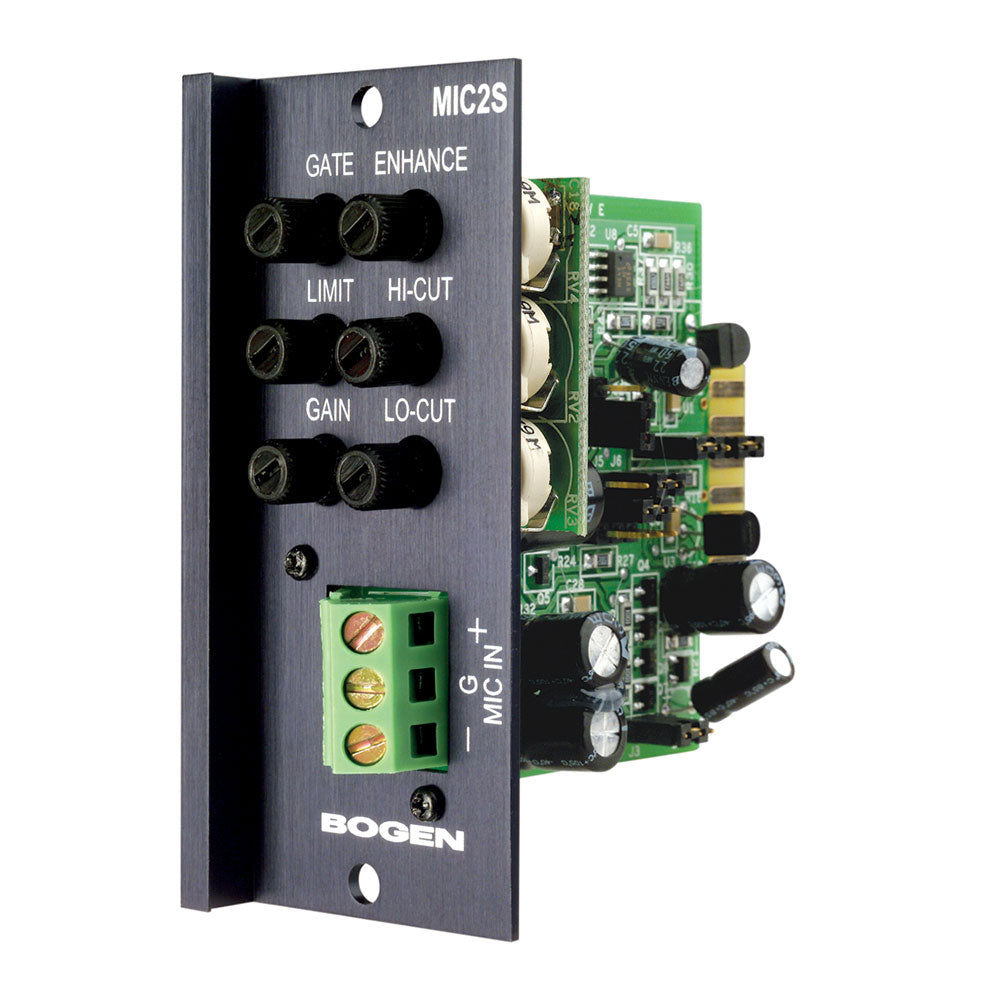

Bogen MIC2S Microphone Input Module with Screw Terminals (for Bogen Matrix Products)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Bogen's advanced plug-in modules provide a wide range of functions to support a variety of applications. These modules support different signal-source requirements, including the ability to interface to balanced and unbalanced high- and low-level inputs, stereo or mono, telco systems, and microphones.
Features:
- Gain/Trim control
- High Cut/Low Cut controls
- Voice Enhancement control
- Noise gate w/Threshold control
- Limiter w/Threshold control
- 24V Phantom power
- Mute send & receive
- 4 Priority levels
- Bus assignable
- Electronically balanced
- Screw terminal connections
| Gain | 18 dB to 62 dB |
| Frequency Response | +0/-3 dB, 10 Hz-40 kHz |
| S/N (20 Hz - 20 kHz) | -73 dBV @ 60 dB gain, -133 dBV EIN |
| Distortion | < 0.02%, 20 Hz-20 kHz |
| Input Impedance | 2K ohms |
| Tone | -10 dB @ 100 Hz / 3 kHz (cut only) |
| Limit (threshold) | -10 dBV to off |
| Gate Threshold | 3 mV to 30 mV |
| CMRR | > 80 dB @ 1 kHz |
| Priority | Four levels |
| Phantom Power | 24V DC (defeatable) |
| Controls | Gain, Low Cut, High Cut, Enhance, Limit, Gate Threshold |
| Connector | Screw Terminal |
| Dimensions | 1-3/8" W x 3-1/8" H x 3-1/2" D |
| Weight | 2.2 oz. |
Bogen's advanced plug-in modules provide a wide range of functions to support a variety of applications. These modules support different signal-source requirements, including the ability to interface to balanced and unbalanced high- and low-level inputs, stereo or mono, telco systems, and microphones.
Features:
- Gain/Trim control
- High Cut/Low Cut controls
- Voice Enhancement control
- Noise gate w/Threshold control
- Limiter w/Threshold control
- 24V Phantom power
- Mute send & receive
- 4 Priority levels
- Bus assignable
- Electronically balanced
- Screw terminal connections
| Gain | 18 dB to 62 dB |
| Frequency Response | +0/-3 dB, 10 Hz-40 kHz |
| S/N (20 Hz - 20 kHz) | -73 dBV @ 60 dB gain, -133 dBV EIN |
| Distortion | < 0.02%, 20 Hz-20 kHz |
| Input Impedance | 2K ohms |
| Tone | -10 dB @ 100 Hz / 3 kHz (cut only) |
| Limit (threshold) | -10 dBV to off |
| Gate Threshold | 3 mV to 30 mV |
| CMRR | > 80 dB @ 1 kHz |
| Priority | Four levels |
| Phantom Power | 24V DC (defeatable) |
| Controls | Gain, Low Cut, High Cut, Enhance, Limit, Gate Threshold |
| Connector | Screw Terminal |
| Dimensions | 1-3/8" W x 3-1/8" H x 3-1/2" D |
| Weight | 2.2 oz. |
