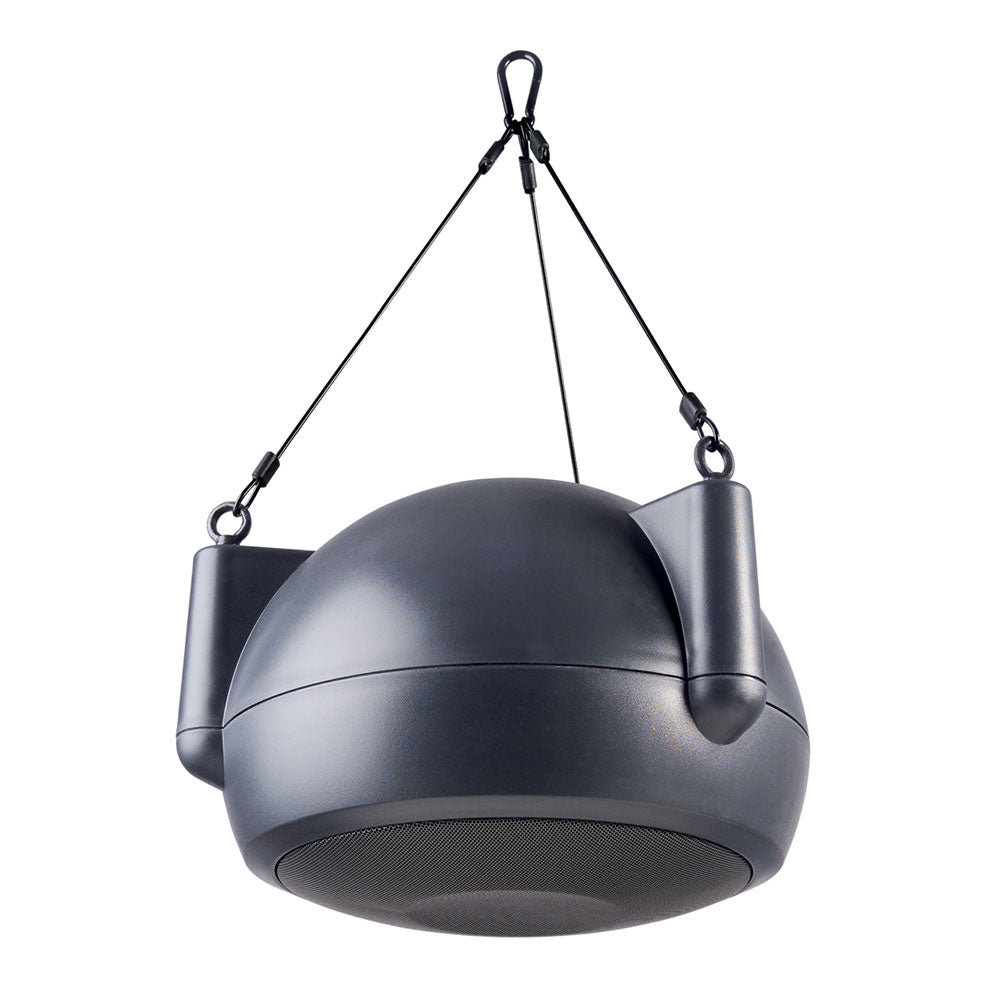

Bogen OPS1 Orbit Series Pendant Loudspeaker (Black)


  • Dale #:

    BOGE-OPS1B
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The Orbit Pendant Speaker (OPS1) is the ideal choice for high ceiling and open space environments.The OPS1 features NEAR's MLS™ and MDT™ technologies (see below), which improve sound quality and increase operating reliability.The low-distortion speaker design, featuring NEAR's spiderless driver a... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Orbit Pendant Speaker (OPS1) is the ideal choice for high ceiling and open space environments.The OPS1 features NEAR's MLS™ and MDT™ technologies (see below), which improve sound quality and increase operating reliability.The low-distortion speaker design, featuring NEAR's spiderless driver and one-piece metal-alloy cone structure, delivers superb articulation and the highest intelligibility for both music and speech.

Features:
  • Wide dispersion coaxial driver for broad, even 140° coverage
  • Stable, high definition metal-alloy cone
  • MDT™ cone design delivers detailed sound
  • MLS™ eliminates conventional centering “spider” for more accurate voice coil centering
  • High-efficiency drivers deliver superior performance
  • Extremely good off-axis response
  • Computer-matched venting system for full bass output
  • High power handling capability for foreground sound
  • Selectable power taps via front-mounted control
  • 16-ohm input for non-transformer multi-speaker systems
  • Easy wiring with snap-on connector
  • Connector provides loop-through to next speaker
  • Easy to use cable suspension system that includes three suspension cables with attached forged eyebolts
  • Threaded brass insert point for optional safety cable eye bolt
  • Low-resonance cabinet structure
  • Off-white or dark gray textured finish; easily painted to match theme decors
  • Attractive, contemporary, sturdy steel grille assembly with fine perforations
  • Accessory 10-foot long cable kit for use as main drop cable or safety cable (Model CK10 sold separately)

More +

Product Specs

Frequency Response (-10 dB) 45 Hz to 19 kHz
LF Driver6-1/2 MDT Metal-Alloy Cone (MLS Voice Coil Centering System)
HF Driver20mm (3/4) Polycarbonate Dome
Sensitivity (1W/1M)89.5 dBspl (Average 100 Hz - 10 kHz)
Impedance RatingsLow (16 ohms) / High (70V/100V)
Power Input (Max.)100W @ 16 ohms; 32W @ 70V/100V
Power Settings (in watts)
70V32, 16, 8, 4, 2, 1
100V32, 16, 8, 4, 2
Enclosure MaterialFire-rated (94VO) ABS
Grille MaterialPowder-Coated Perforated Metal
Terminations4 Terminal Snap-Lock Input Connector
Product Weight10 lb.
Speaker Dimensions15 dia. x 9-1/4 D
Included Accessories(3) Suspension Cables; (3) Forged Eye Bolts; (3) Nuts;(1) Quick-Snap Clip; (1) Snap-Lock Input Connector
Optional AccessoriesCable Kit (CK10)
Enclosure Finish & ColorTextured Off-white or Dark Gray

More +
