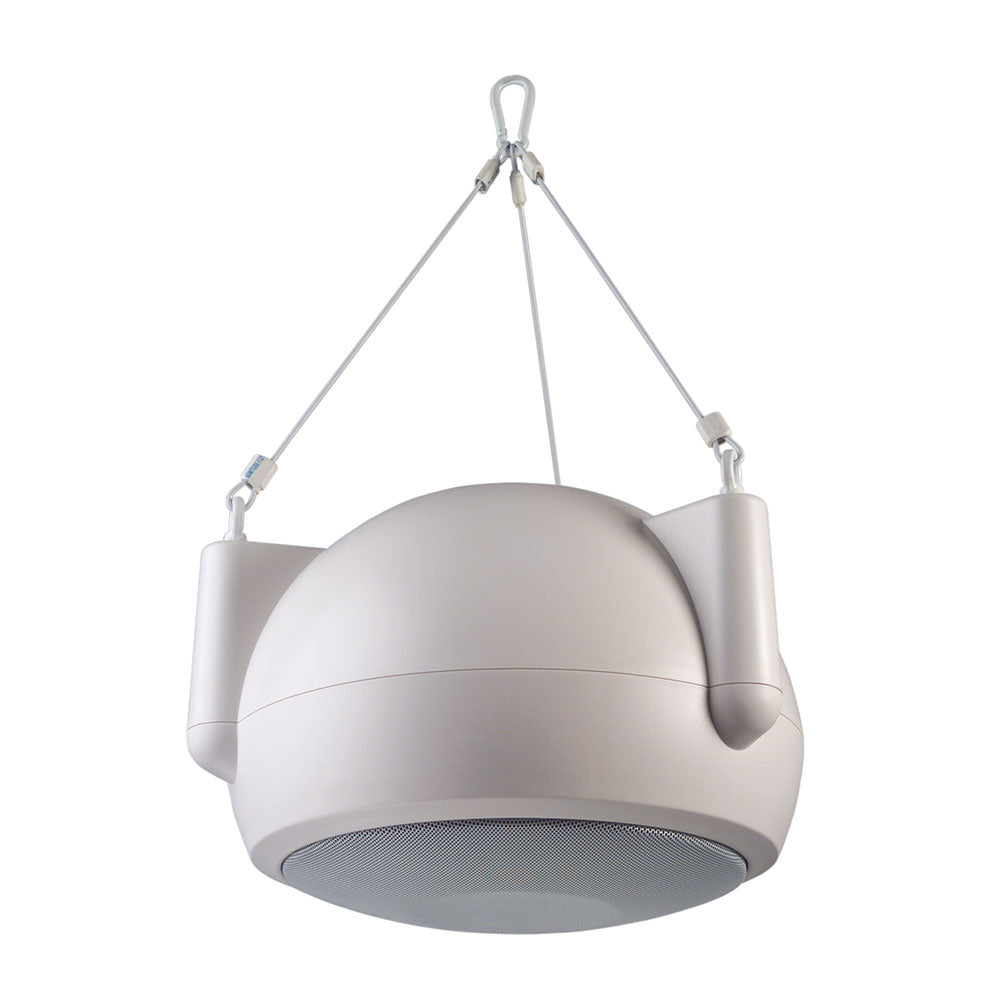

Bogen OPS1 Orbit Series Pendant Loudspeaker (White)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The Orbit Pendant Speaker (OPS1) is the ideal choice for high ceiling and open space environments.The OPS1 features NEAR's MLS™ and MDT™ technologies (see below), which improve sound quality and increase operating reliability.The low-distortion speaker design, featuring NEAR's spiderless driver and one-piece metal-alloy cone structure, delivers superb articulation and the highest intelligibility for both music and speech.
Features:- Wide dispersion coaxial driver for broad, even 140° coverage
- Stable, high definition metal-alloy cone
- MDT™ cone design delivers detailed sound
- MLS™ eliminates conventional centering "spider" for more accurate voice coil centering
- High-efficiency drivers deliver superior performance
- Extremely good off-axis response
- Computer-matched venting system for full bass output
- High power handling capability for foreground sound
- Selectable power taps via front-mounted control
- 16-ohm input for non-transformer multi-speaker systems
- Easy wiring with snap-on connector
- Connector provides loop-through to next speaker
- Easy to use cable suspension system that includes three suspension cables with attached forged eyebolts
- Threaded brass insert point for optional safety cable eye bolt
- Low-resonance cabinet structure
- Off-white or dark gray textured finish; easily painted to match theme decors
- Attractive, contemporary, sturdy steel grille assembly with fine perforations
- Accessory 10-foot long cable kit for use as main drop cable or safety cable (Model CK10 sold separately)
| Frequency Response | (-10 dB) 45 Hz to 19 kHz |
| LF Driver | 6-1/2 MDT Metal-Alloy Cone (MLS Voice Coil Centering System) |
| HF Driver | 20mm (3/4) Polycarbonate Dome |
| Sensitivity (1W/1M) | 89.5 dBspl (Average 100 Hz - 10 kHz) |
| Impedance Ratings | Low (16 ohms) / High (70V/100V) |
| Power Input (Max.) | 100W @ 16 ohms; 32W @ 70V/100V |
| Power Settings (in watts) | |
| 70V | 32, 16, 8, 4, 2, 1 |
| 100V | 32, 16, 8, 4, 2 |
| Enclosure Material | Fire-rated (94VO) ABS |
| Grille Material | Powder-Coated Perforated Metal |
| Terminations | 4 Terminal Snap-Lock Input Connector |
| Product Weight | 10 lb. |
| Speaker Dimensions | 15 dia. x 9-1/4 D |
| Included Accessories | (3) Suspension Cables; (3) Forged Eye Bolts; (3) Nuts;(1) Quick-Snap Clip; (1) Snap-Lock Input Connector |
| Optional Accessories | Cable Kit (CK10) |
| Enclosure Finish / Color | Textured Off-white or Dark Gray |
