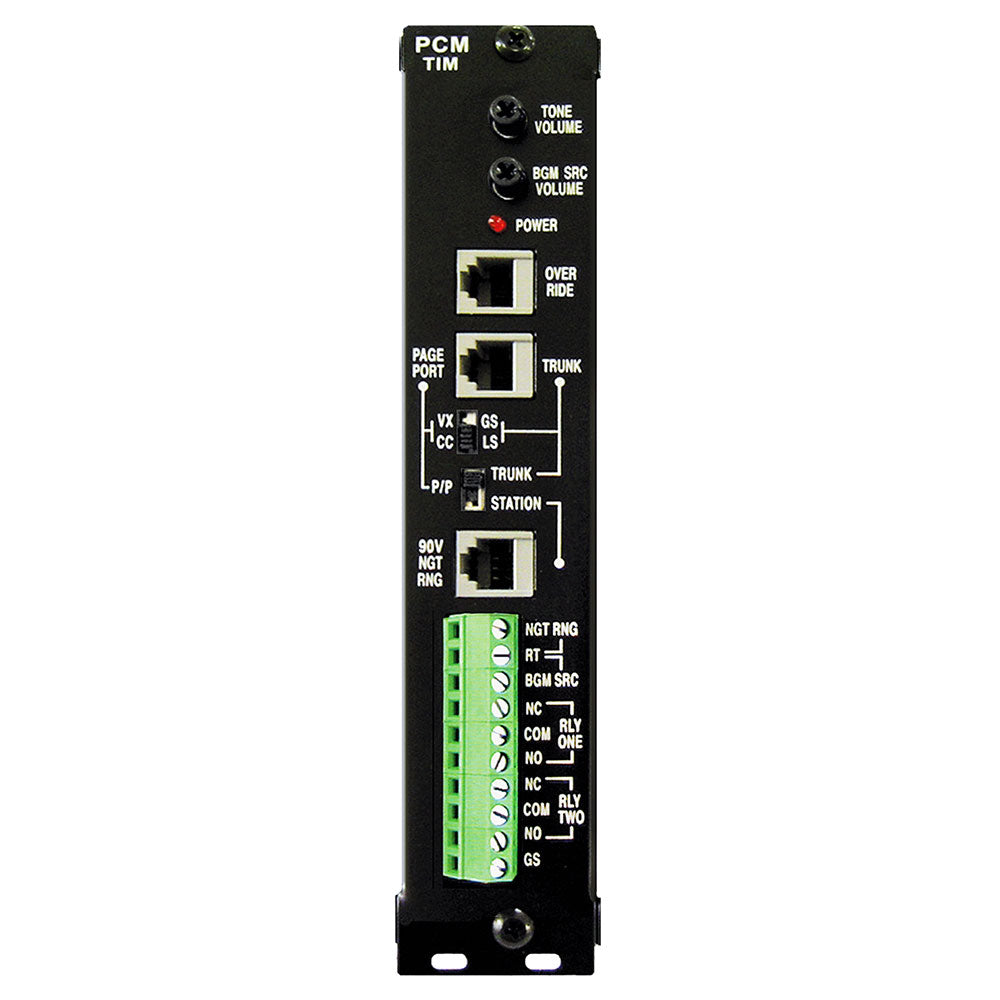

Bogen PCMTIM Telephone Interface Module for PCM2000 Paging System

The PCMTIM telephone interface module incorporates a universal interface so that connection to any telephone system is rapid and trouble-free. The module connects to the telephone system via a standard RJ11 plug and port type is selected simply by using slide switches. All other connections are made to built-in terminal blocks. Setup is also easy. Zone group programming, selection of all signaling functions, and all other parameters are set by simply dialing in with a touch-tone telephone. The telephone interface module is equipped with three RJ11 jacks for Override, Page Port/Trunk, and 90V Night Ring/Station. The Night Ringer feature can be activated from 90V ring signal or contact closure. The Page Port/Trunk jack can be used to program the system locally and provides 48V talk battery. The Override feature permits all-zone override paging from a dedicated telephone, trunk, or microphone (with suitable pre-amp).
