Bogen RIO1S Relay Input/Output Module for VMIX System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

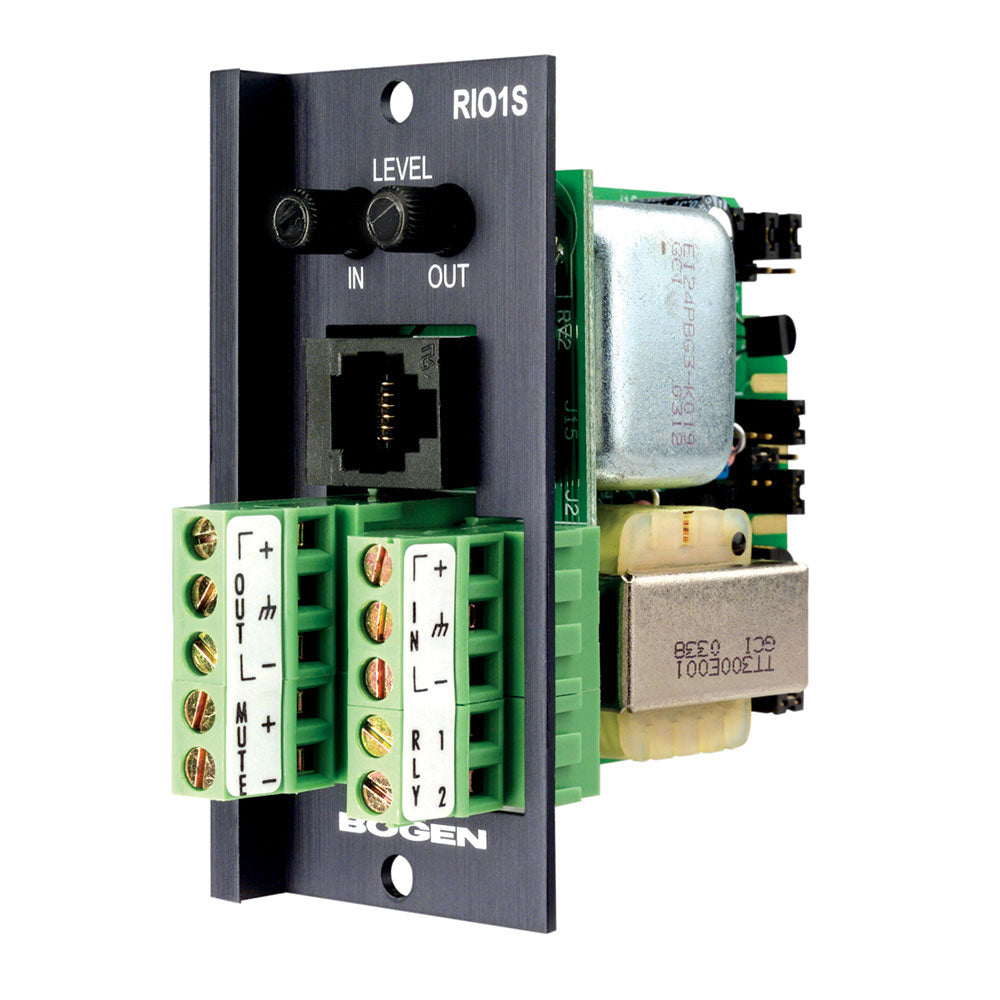

Bogen's RIO1S is a multi-functional module with a priority-controlled relay contact, transformer-balanced input, transformer-balanced output, and an RJ11 output for direct connection to the override input of a zone paging system. The RIO1S provides a convenient way to integrate a Power Vector amplifier with a PCM zone paging system, allowing full use of the Power Vector's priority structure in zone paging applications for more sophisticated paging capabilities.
Features:
- Transformer-isolated, balanced line-level input
- 600-ohm or 10k-ohm (jumper selectable) input impedance
- Transformer-isolated, balanced line-level output
- 8-ohm, 0.75W output
- Input and output level controls
- Relay responds to jumper selectable priority level
- N.O. or N.C. jumper-selectable relay contact
- External control of priority muting buses
- Input can be muted from higher priority modules, with signal fade back
- Output (normally gate) can be synched with priority relay operation
- Output gating can be defeated via jumper
- RJ11 connection with line output and dedicated N.O. relay contact (allows easy connection to O/R port of Bogen telephone paging interfaces)
| Gain | Input: -11 dB to +19 dB Output: OFF to 0 dB/+7 dB (8-ohm/600-ohm load) |
| Frequency Response | Input: 10 Hz to 40 kHz (+0/-3 dB) Output: 30 Hz to 20 kHz (+0/0.5 dB) with 8-ohm load, 0.75W |
| Distortion | Input: <0.3% 20 Hz to 20 kHz @ 1V Output: <1% w/8-ohm load, 0.75W (30 Hz - 20 kHz) |
| Impedance | Input: 600 ohms/10k ohms (jumper selectable), balanced Output: 8 ohms minimum, balanced |
| Priority | Input: Mute Low (jumper defeatable) Output: Three Levels (normally gated) |
| S/N (20 Hz - 20 kHz) | -75 dBV |
| Muting | >50 dB |
| Controls | Level IN, Level OUT |
| Connector(s) | Screw terminals and RJ11 |
| Power | ± 24V DC |
| Product Weight | 4.1 oz. |
| Dimensions | 1 3/8" W x 3 1/8" H x 3 1/2" D |
Bogen's RIO1S is a multi-functional module with a priority-controlled relay contact, transformer-balanced input, transformer-balanced output, and an RJ11 output for direct connection to the override input of a zone paging system. The RIO1S provides a convenient way to integrate a Power Vector amplifier with a PCM zone paging system, allowing full use of the Power Vector's priority structure in zone paging applications for more sophisticated paging capabilities.
Features:
- Transformer-isolated, balanced line-level input
- 600-ohm or 10k-ohm (jumper selectable) input impedance
- Transformer-isolated, balanced line-level output
- 8-ohm, 0.75W output
- Input and output level controls
- Relay responds to jumper selectable priority level
- N.O. or N.C. jumper-selectable relay contact
- External control of priority muting buses
- Input can be muted from higher priority modules, with signal fade back
- Output (normally gate) can be synched with priority relay operation
- Output gating can be defeated via jumper
- RJ11 connection with line output and dedicated N.O. relay contact (allows easy connection to O/R port of Bogen telephone paging interfaces)
| Gain | Input: -11 dB to +19 dB Output: OFF to 0 dB/+7 dB (8-ohm/600-ohm load) |
| Frequency Response | Input: 10 Hz to 40 kHz (+0/-3 dB) Output: 30 Hz to 20 kHz (+0/0.5 dB) with 8-ohm load, 0.75W |
| Distortion | Input: <0.3% 20 Hz to 20 kHz @ 1V Output: <1% w/8-ohm load, 0.75W (30 Hz - 20 kHz) |
| Impedance | Input: 600 ohms/10k ohms (jumper selectable), balanced Output: 8 ohms minimum, balanced |
| Priority | Input: Mute Low (jumper defeatable) Output: Three Levels (normally gated) |
| S/N (20 Hz - 20 kHz) | -75 dBV |
| Muting | >50 dB |
| Controls | Level IN, Level OUT |
| Connector(s) | Screw terminals and RJ11 |
| Power | ± 24V DC |
| Product Weight | 4.1 oz. |
| Dimensions | 1 3/8" W x 3 1/8" H x 3 1/2" D |
