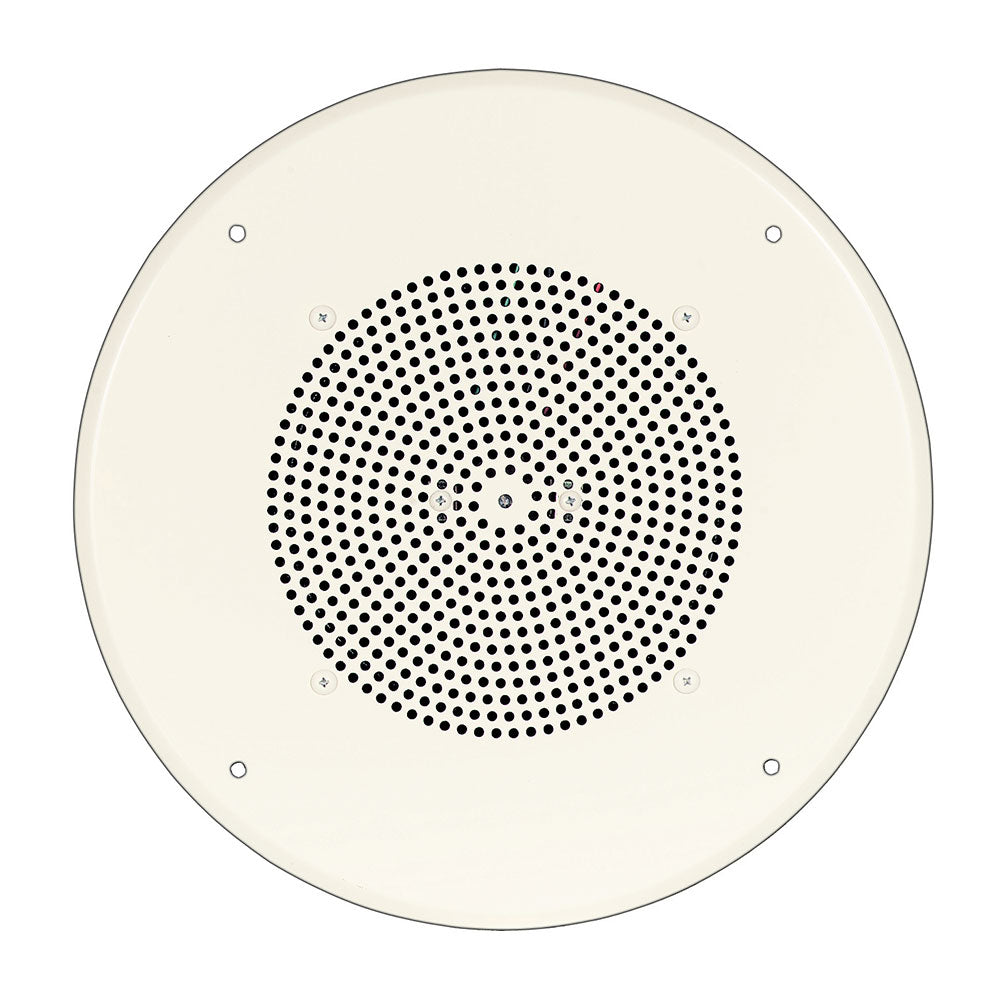

Bogen S810T725PG8U 8-Inch Ceiling Loudspeaker with Transformer/Recessed Volume Control/Bright White Grille
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Bogen's Ceiling Speaker Assemblies consist of an 8" Cone Speaker (S86 or S810) pre-assembled onto a 13" steel ceiling grille painted with off-white (PG8W) or bright white (PG8U) enamel. Options for these assemblies are recessed volume control (VR), volume control with knob (VK), and rear-mounted screw terminal strip for power taps (BR).
Features:
- 4-watt capacity
- 8" cone speaker for excellent audio quality
- 6 different power taps available (4, 2, 1, 1/2, 1/4, 1/8 W)
- T725 4-watt transformer
- Off-white enamel over steel grille ("W" versions)
- Bright white enamel over steel grille ("U" versions)
- Pre-assembled for faster installation
- Works with both 70V and 25V amplifier outputs
- Available with volume control - recessed or with knob (VR and VK models only)
- Screw terminals (BR models only)
- 10 oz. magnet weight
| Power Taps | 4, 2, 1, 1/2, 1/4, 1/8 @ 25 / 70V |
| Frequency Response | 50 Hz - 12 kHz |
| Sensitivity (4 ft./1W) | 95 dBspl |
| Magnet Weight | 10 oz. |
| Volume Control | Recessed |
| Connections | Bare Wire |
| Shipping Weight (per 6) | 27 lbs / carton |
| Dimensions | 13" Dia x 3-1/4" D |
Bogen's Ceiling Speaker Assemblies consist of an 8" Cone Speaker (S86 or S810) pre-assembled onto a 13" steel ceiling grille painted with off-white (PG8W) or bright white (PG8U) enamel. Options for these assemblies are recessed volume control (VR), volume control with knob (VK), and rear-mounted screw terminal strip for power taps (BR).
Features:
- 4-watt capacity
- 8" cone speaker for excellent audio quality
- 6 different power taps available (4, 2, 1, 1/2, 1/4, 1/8 W)
- T725 4-watt transformer
- Off-white enamel over steel grille ("W" versions)
- Bright white enamel over steel grille ("U" versions)
- Pre-assembled for faster installation
- Works with both 70V and 25V amplifier outputs
- Available with volume control - recessed or with knob (VR and VK models only)
- Screw terminals (BR models only)
- 10 oz. magnet weight
| Power Taps | 4, 2, 1, 1/2, 1/4, 1/8 @ 25 / 70V |
| Frequency Response | 50 Hz - 12 kHz |
| Sensitivity (4 ft./1W) | 95 dBspl |
| Magnet Weight | 10 oz. |
| Volume Control | Recessed |
| Connections | Bare Wire |
| Shipping Weight (per 6) | 27 lbs / carton |
| Dimensions | 13" Dia x 3-1/4" D |
