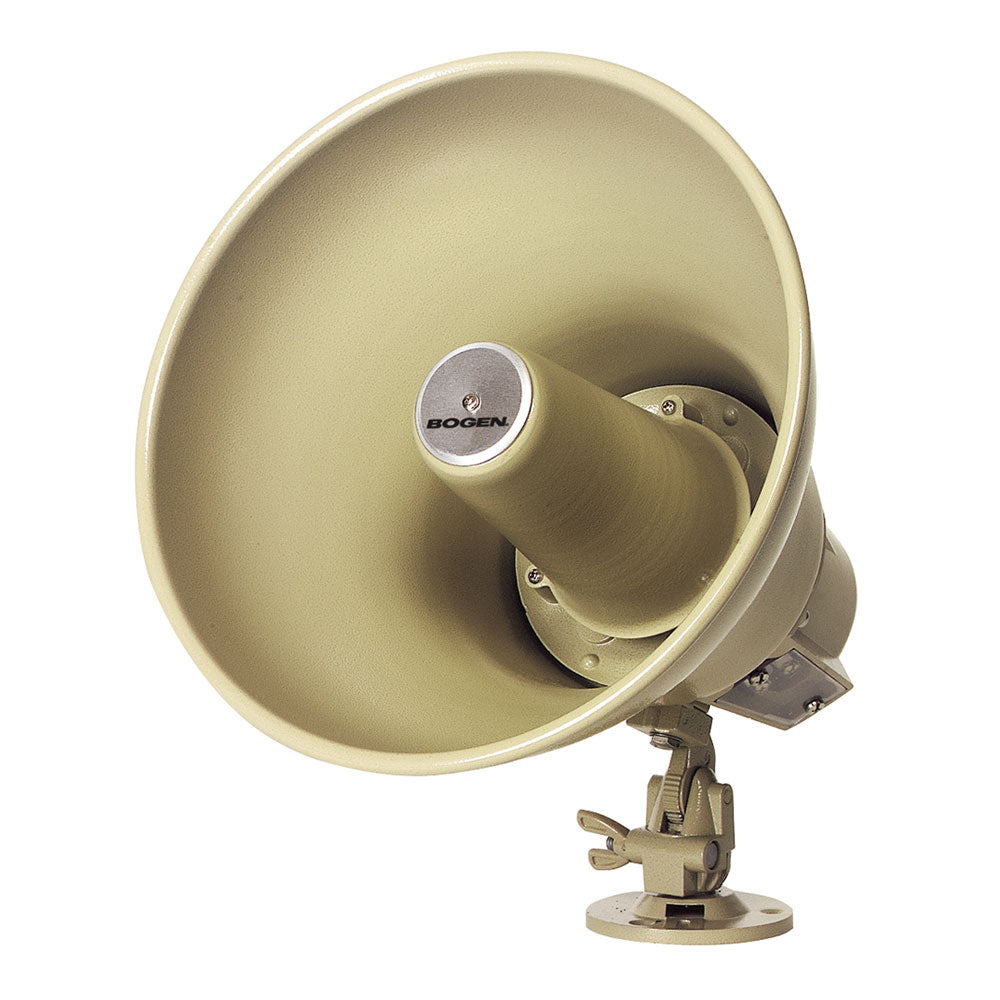

Bogen SP158A 15-Watt 8-Ohm Paging Horn Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Bogen SP158A are compact, high intelligibility, reentrant type loudspeakers, designed for one-way or two-way sound and communication systems. Their sturdy, weatherproof, all-metal construction is ideal for indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas. The model SP158A has an 8-ohm impedance only.
Features:
- High intelligibility and efficiency; ideal for both one-way and talk back applications
- Weatherproof, all-metal construction
- 15 watts 8-ohm operation
- Tilt and swivel base for easy positioning
- Screw terminals make installation fast and easy
- All-purpose mounting bracket
- Self-aligning, field replaceable diaphragm
- Mocha enamel finish
- Limited lifetime warranty
- Mountable to I-beam flange using Bogen's BC1 Beam Clamp (sold separately)
- Mountable to electrical box using Bogen's HSES10 mounting strap (sold separately)
- Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
| Power Rating (RMS) | 15 watts continuous, 20 watts equalized |
| Frequency Response | 275 Hz to 14 kHz |
| Impedance | 8 ohms |
| Sound Pressure Level | 121 dB @ four feet on axis with 15 watt input @ 1000 Hz |
| Dispersion | 110¼ |
| Sensitivity as Microphone | -22 dBm [Ref: 10 dynes/cm2] |
| Dimensions | 9" Diameter x 9-1/4" D |
| Product Weight | 3 lb. |
| Finish | Textured mocha enamel |
The Bogen SP158A are compact, high intelligibility, reentrant type loudspeakers, designed for one-way or two-way sound and communication systems. Their sturdy, weatherproof, all-metal construction is ideal for indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas. The model SP158A has an 8-ohm impedance only.
Features:
- High intelligibility and efficiency; ideal for both one-way and talk back applications
- Weatherproof, all-metal construction
- 15 watts 8-ohm operation
- Tilt and swivel base for easy positioning
- Screw terminals make installation fast and easy
- All-purpose mounting bracket
- Self-aligning, field replaceable diaphragm
- Mocha enamel finish
- Limited lifetime warranty
- Mountable to I-beam flange using Bogen's BC1 Beam Clamp (sold separately)
- Mountable to electrical box using Bogen's HSES10 mounting strap (sold separately)
- Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
| Power Rating (RMS) | 15 watts continuous, 20 watts equalized |
| Frequency Response | 275 Hz to 14 kHz |
| Impedance | 8 ohms |
| Sound Pressure Level | 121 dB @ four feet on axis with 15 watt input @ 1000 Hz |
| Dispersion | 110¼ |
| Sensitivity as Microphone | -22 dBm [Ref: 10 dynes/cm2] |
| Dimensions | 9" Diameter x 9-1/4" D |
| Product Weight | 3 lb. |
| Finish | Textured mocha enamel |
