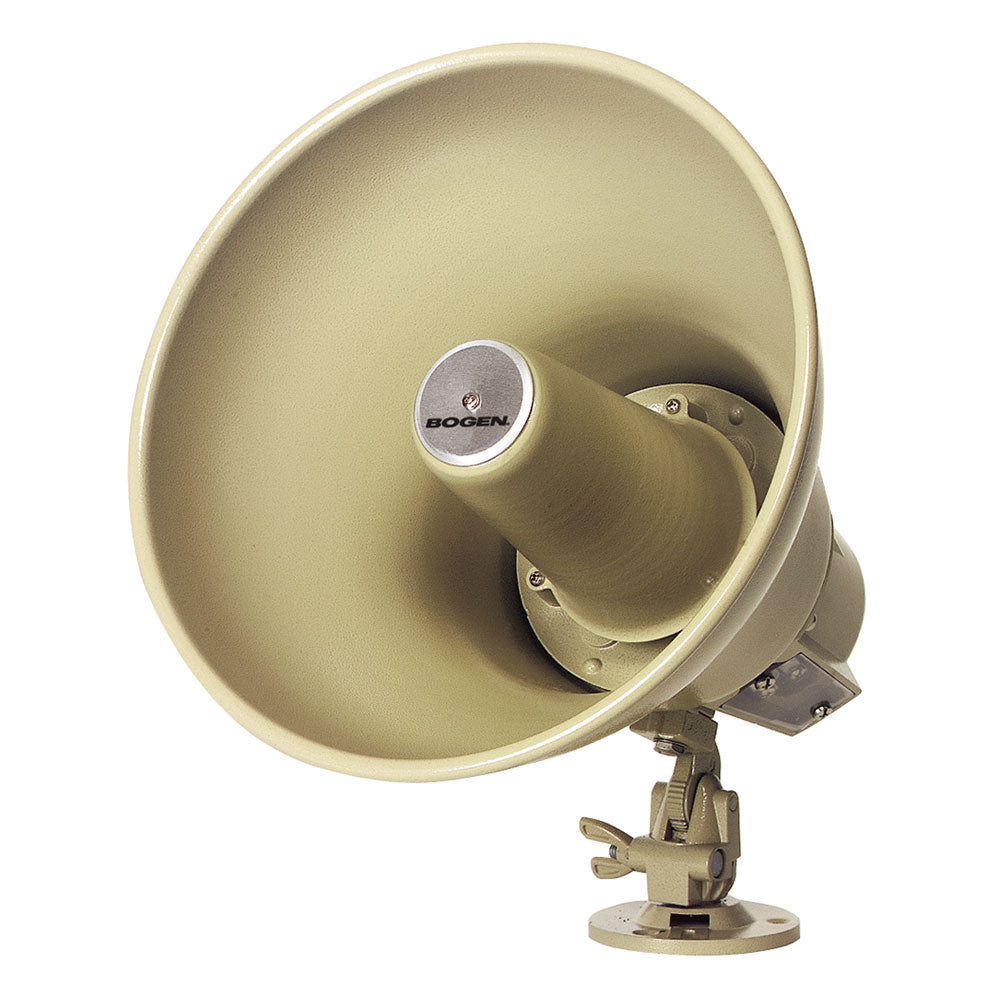

Bogen SPT15A 15-Watt Paging Horn Loudspeaker
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The Bogen SPT15A are compact, high intelligibility, reentrant type loudspeakers, designed for one-way or two-way sound and communication systems. Their sturdy, weatherproof, all-metal construction is ideal for indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas. The Model SPT15A has a built-in, rotary impedance selector switch for matching the speaker power requirements to a 25V or 70V constant-voltage line.
Features:
- High intelligibility and efficiency; ideal for both one-way and talk back applications
- Weatherproof, all-metal construction
- 15 watts; 25/70 volt operation
- Tap settings for 70V: 15, 7.5, 3.8, 1.8, 0.9 watts; for 25V: 15, 7.5, 1.8, 0.94, 0.46 watts
- Rotary tap impedance selector
- Tilt and swivel base for easy positioning
- Screw terminals make installation fast and easy
- All-purpose mounting bracket
- Self-aligning, field replaceable diaphragm
- Mocha enamel finish
- Limited lifetime warranty
- Mountable to I-beam flange using Bogen's BC1 Beam Clamp (sold separately)
- Mountable to electrical box using Bogen's HSES10 mounting strap (sold separately)
- Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
| Power Rating (RMS) | 15 watts continuous, 20 watts equalized |
| Frequency Response | 275 Hz to 14 kHz |
| Impedance | 25/70 volts |
| Sound Pressure Level | 121 dB @ four feet on axis with 15 watt input @ 1000 Hz |
| Dispersion | 110¼ |
| Sensitivity as Microphone | -22 dBm [Ref: 10 dynes/cm2] |
| Dimensions | 9" Diameter x 9-1/4" D |
| Product Weight | 4 lb. |
| Finish | Textured mocha enamel |
| Impedance Selector Switch Settings | 25V @ 15, 7.5, 1.8, 0.94, 0.46 watts 70V @ 15, 7.5, 3.8, 1.8, 0.9 watts |
The Bogen SPT15A are compact, high intelligibility, reentrant type loudspeakers, designed for one-way or two-way sound and communication systems. Their sturdy, weatherproof, all-metal construction is ideal for indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas. The Model SPT15A has a built-in, rotary impedance selector switch for matching the speaker power requirements to a 25V or 70V constant-voltage line.
Features:
- High intelligibility and efficiency; ideal for both one-way and talk back applications
- Weatherproof, all-metal construction
- 15 watts; 25/70 volt operation
- Tap settings for 70V: 15, 7.5, 3.8, 1.8, 0.9 watts; for 25V: 15, 7.5, 1.8, 0.94, 0.46 watts
- Rotary tap impedance selector
- Tilt and swivel base for easy positioning
- Screw terminals make installation fast and easy
- All-purpose mounting bracket
- Self-aligning, field replaceable diaphragm
- Mocha enamel finish
- Limited lifetime warranty
- Mountable to I-beam flange using Bogen's BC1 Beam Clamp (sold separately)
- Mountable to electrical box using Bogen's HSES10 mounting strap (sold separately)
- Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
| Power Rating (RMS) | 15 watts continuous, 20 watts equalized |
| Frequency Response | 275 Hz to 14 kHz |
| Impedance | 25/70 volts |
| Sound Pressure Level | 121 dB @ four feet on axis with 15 watt input @ 1000 Hz |
| Dispersion | 110¼ |
| Sensitivity as Microphone | -22 dBm [Ref: 10 dynes/cm2] |
| Dimensions | 9" Diameter x 9-1/4" D |
| Product Weight | 4 lb. |
| Finish | Textured mocha enamel |
| Impedance Selector Switch Settings | 25V @ 15, 7.5, 1.8, 0.94, 0.46 watts 70V @ 15, 7.5, 3.8, 1.8, 0.9 watts |
