Bogen SPT5A 7.5-Watt Paging Horn Loudspeaker
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

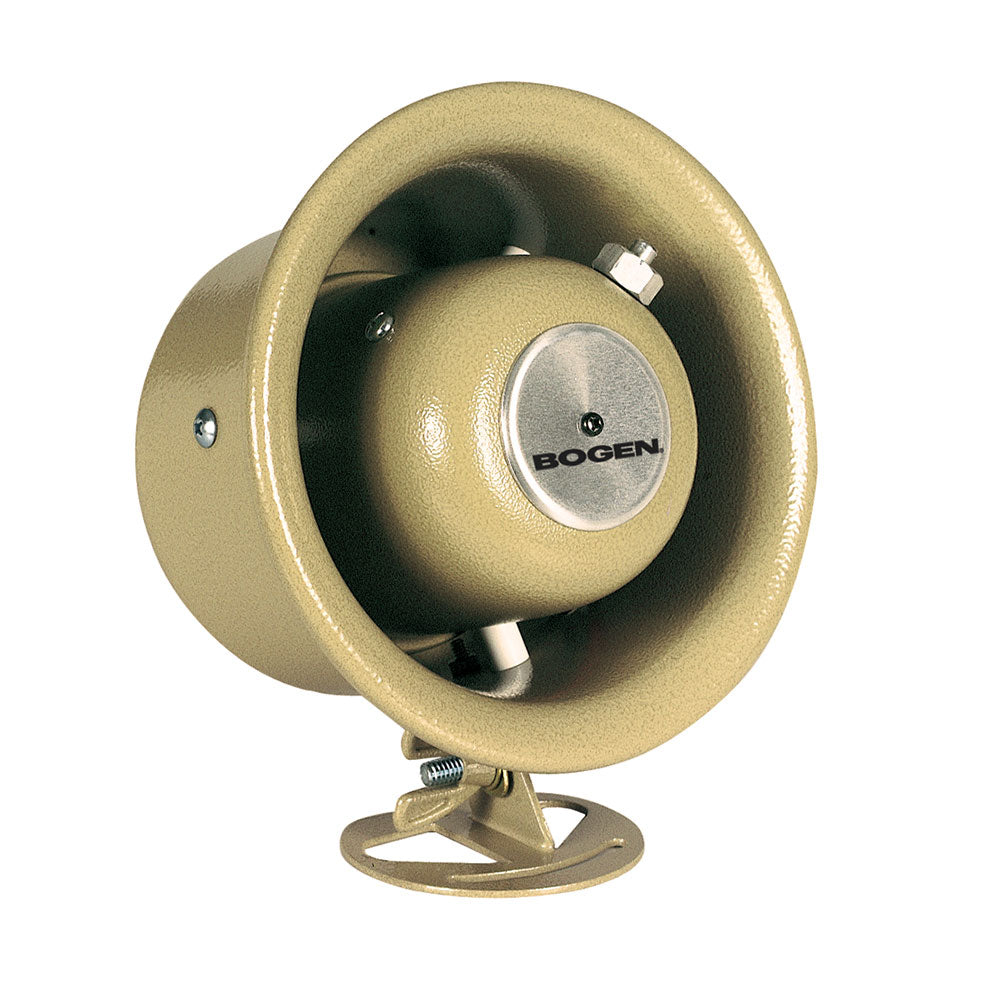

The Bogen SPT5A and SP58A are compact, reflex horn-type loudspeakers, designed for one-way or two-way sound and communications systems.Their wide frequency response assures full-range background music reproduction, making these loudspeakers an excellent choice for multi-purpose applications, indoor or outdoor, for use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas. The SPT5A has a built-in, variable impedance selector switch for matching the speaker power requirements to a 25V or 70V constant-voltage line. The loudspeakers measure 6" in diameter and 4" deep. Connections are made through a 12" connecting cable.
Features:
- High intelligibility and efficiency
- Passive loudspeaker
- Ideal for both one-way and two-way applications
- 7.5 watts
- 25/70V operation
- Variable-tap impedance selector
- All-purpose mounting bracket for precise positioning, both vertically and horizontally
- Weatherproof, all-metal construction
- Textured mocha enamel finish
| Power Rating (RMS) | 7.5 watts continuous |
| Frequency Response | 250Hz to 14kHz |
| Impedance | 25/70V |
| Sound Pressure Level | 105dB @ four feet on axis with 7.5 watt input @ 1000Hz |
| Dispersion | 120¼ |
| Sensitivity as Microphone | -22dBm [Ref: 10 dynes/cm2] |
| Dimensions | 6" Dia. x 4" D |
| Weight | 2 lbs. |
| Finish | Textured mocha enamel |
| Impedance Selector Switch Settings | 25V @ 1, 0.62, 0.31 watts 70V @ 7.5, 5, 2.5, 1.25, 0.65 watts |
The Bogen SPT5A and SP58A are compact, reflex horn-type loudspeakers, designed for one-way or two-way sound and communications systems.Their wide frequency response assures full-range background music reproduction, making these loudspeakers an excellent choice for multi-purpose applications, indoor or outdoor, for use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas. The SPT5A has a built-in, variable impedance selector switch for matching the speaker power requirements to a 25V or 70V constant-voltage line. The loudspeakers measure 6" in diameter and 4" deep. Connections are made through a 12" connecting cable.
Features:
- High intelligibility and efficiency
- Passive loudspeaker
- Ideal for both one-way and two-way applications
- 7.5 watts
- 25/70V operation
- Variable-tap impedance selector
- All-purpose mounting bracket for precise positioning, both vertically and horizontally
- Weatherproof, all-metal construction
- Textured mocha enamel finish
| Power Rating (RMS) | 7.5 watts continuous |
| Frequency Response | 250Hz to 14kHz |
| Impedance | 25/70V |
| Sound Pressure Level | 105dB @ four feet on axis with 7.5 watt input @ 1000Hz |
| Dispersion | 120¼ |
| Sensitivity as Microphone | -22dBm [Ref: 10 dynes/cm2] |
| Dimensions | 6" Dia. x 4" D |
| Weight | 2 lbs. |
| Finish | Textured mocha enamel |
| Impedance Selector Switch Settings | 25V @ 1, 0.62, 0.31 watts 70V @ 7.5, 5, 2.5, 1.25, 0.65 watts |
