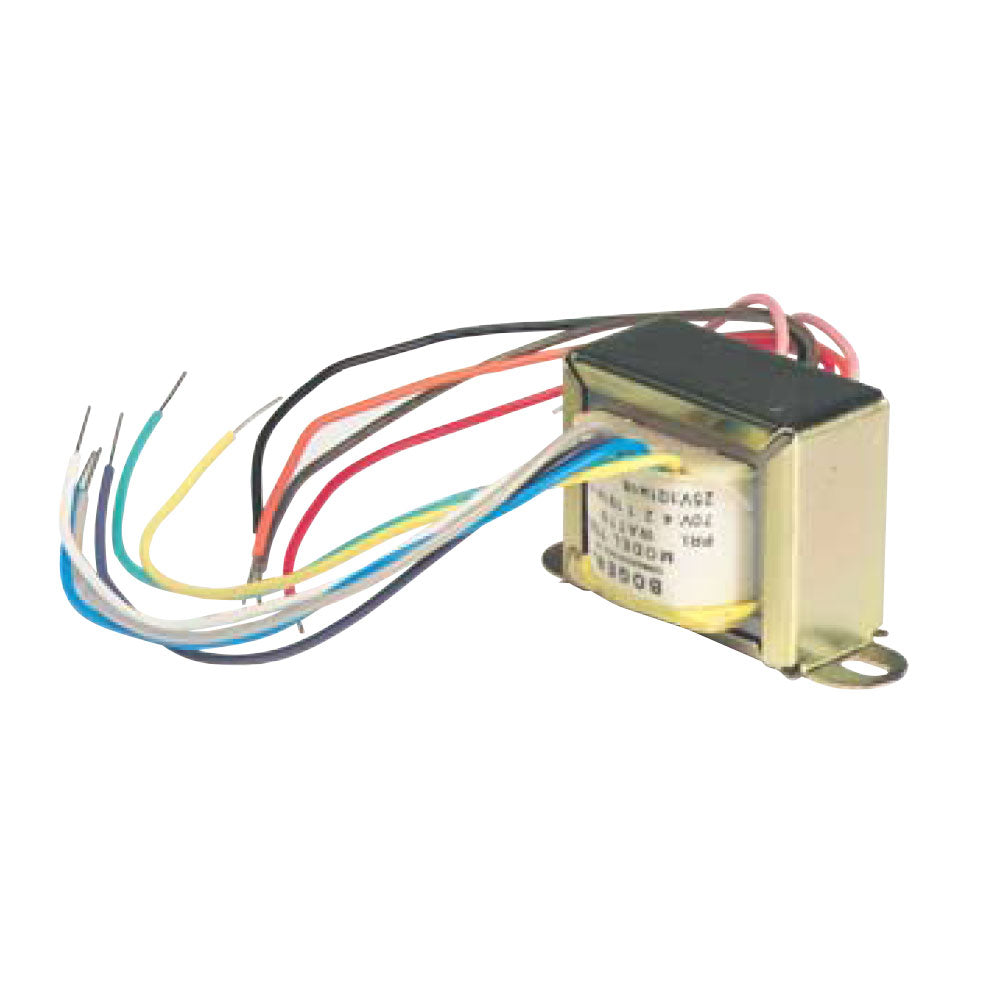

Bogen T725 Speaker Impedance Matching Transformer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Bogen Model T725 transformers are speaker-matching transformers that allow an 8-ohm speaker to be connected to 70V or 25V amplifier outputs. An 8-ohm secondary connects to the speaker and the multi-tap primary connects to the 70V or 25V amplifier output. The T725 can be tapped at 4, 2, 1, 1/2, 1/4, and 1/8 watts. All wires are easily accessible.
Features:
- Allows an 8-ohm speaker to connect to 70V or 25V amplifier outputs
- T725 Power Taps: 4, 2, 1, 1/2, 1/4, 1/8 watts
- Easily-accessed, stripped and tinned wire terminations
- Small, compact, and cost-effective
| Function | Allows 8-ohm speaker to connect to 70V or 25V amplifier outputs |
| Frequency Response | 70 Hz to 10 kHz |
| Taps | 4, 2, 1, 1/2, 1/4, and 1/8 watts |
| Dimensions | 2-1/2" W _ 1-1/4" H _ 1-3/8" D |
| Product Weight | 6 oz. |
The Bogen Model T725 transformers are speaker-matching transformers that allow an 8-ohm speaker to be connected to 70V or 25V amplifier outputs. An 8-ohm secondary connects to the speaker and the multi-tap primary connects to the 70V or 25V amplifier output. The T725 can be tapped at 4, 2, 1, 1/2, 1/4, and 1/8 watts. All wires are easily accessible.
Features:
- Allows an 8-ohm speaker to connect to 70V or 25V amplifier outputs
- T725 Power Taps: 4, 2, 1, 1/2, 1/4, 1/8 watts
- Easily-accessed, stripped and tinned wire terminations
- Small, compact, and cost-effective
| Function | Allows 8-ohm speaker to connect to 70V or 25V amplifier outputs |
| Frequency Response | 70 Hz to 10 kHz |
| Taps | 4, 2, 1, 1/2, 1/4, and 1/8 watts |
| Dimensions | 2-1/2" W _ 1-1/4" H _ 1-3/8" D |
| Product Weight | 6 oz. |
