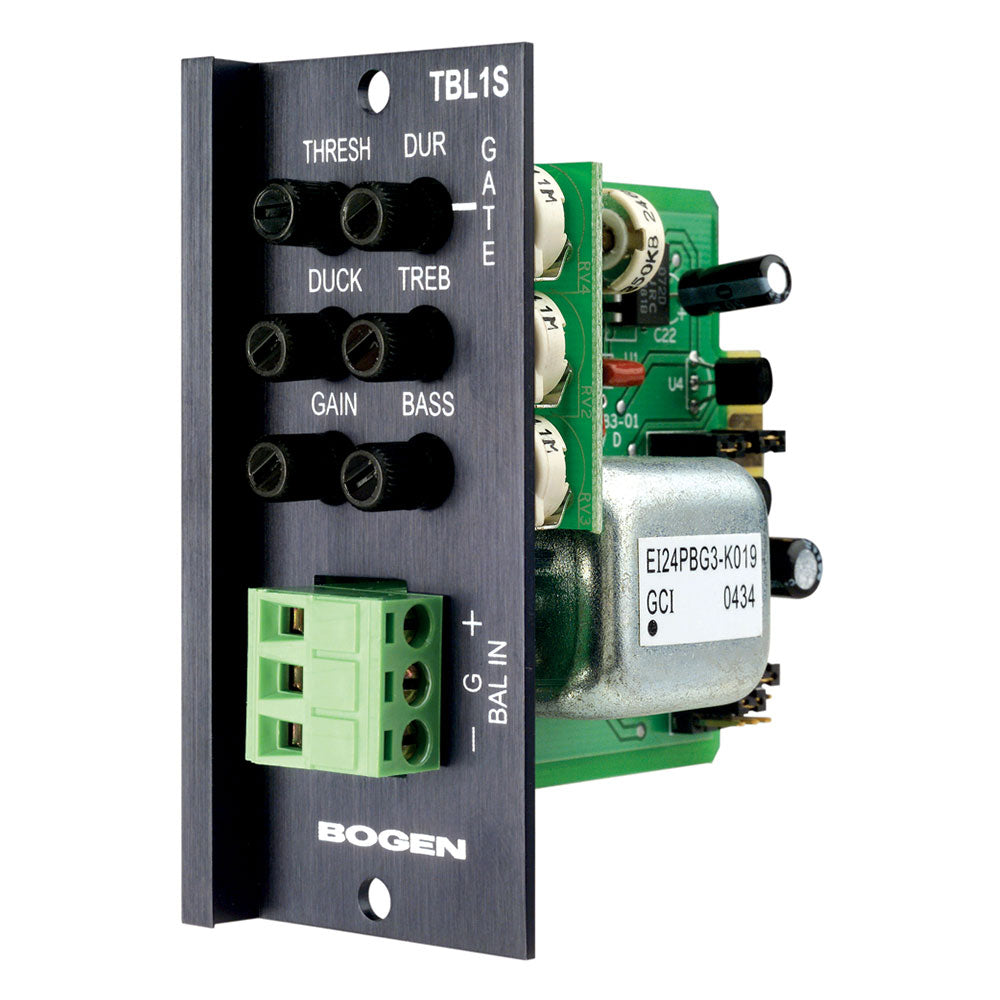

Bogen TBL1S Transformer Balanced Aux Input Module (for Bogen Matrix Systems)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Bogen's advanced plug-in modules provide a wide range of functions to support a variety of applications. These modules support different signal-source requirements, including the ability to interface to balanced and unbalanced high- and low-level inputs, stereo or mono, telco systems, and microphones.
Features:
- Transformer-isolated line-level input
- Gain/Trim control
- Bass & Treble controls
- Gating w/Threshold & Duration
- Mute send & receive
- Variable ducking level when muted/gated
- Fade back from mute/gate
- 4 Priority levels
- Bus assignable
- Pluggable screw terminal connections
| Gain | -11 dB to +19 dB |
| Frequency Response | 10 - 40 kHz (+0/-3 dB) |
| S/N (20 Hz - 20 kHz) | -75 dBV |
| Distortion | < 0.3%, 20 Hz - 20 kHz @ 1V |
| Input Impedance | 10k ohms/600 ohms (jumper selectable) |
| Gate Threshold | 5 mV to disable |
| Gate Duration | 0.5s to 5s |
| Priority | Four levels |
| Duck Level | -10 dB to -72 dB |
| Tone | +/- 10 dB @ 100 Hz / 10 kHz |
| CMRR | > 80 dB @ 1 kHz |
| Controls | Gain, Bass, Treble, Duck, Gate Threshold, Gate Duration |
| Connector | Pluggable Euro Screw Type |
| Dimensions | 1-3/8" W x 3-1/8" H x 3-1/2" D |
| Weight | 3.8 oz. |
Bogen's advanced plug-in modules provide a wide range of functions to support a variety of applications. These modules support different signal-source requirements, including the ability to interface to balanced and unbalanced high- and low-level inputs, stereo or mono, telco systems, and microphones.
Features:
- Transformer-isolated line-level input
- Gain/Trim control
- Bass & Treble controls
- Gating w/Threshold & Duration
- Mute send & receive
- Variable ducking level when muted/gated
- Fade back from mute/gate
- 4 Priority levels
- Bus assignable
- Pluggable screw terminal connections
| Gain | -11 dB to +19 dB |
| Frequency Response | 10 - 40 kHz (+0/-3 dB) |
| S/N (20 Hz - 20 kHz) | -75 dBV |
| Distortion | < 0.3%, 20 Hz - 20 kHz @ 1V |
| Input Impedance | 10k ohms/600 ohms (jumper selectable) |
| Gate Threshold | 5 mV to disable |
| Gate Duration | 0.5s to 5s |
| Priority | Four levels |
| Duck Level | -10 dB to -72 dB |
| Tone | +/- 10 dB @ 100 Hz / 10 kHz |
| CMRR | > 80 dB @ 1 kHz |
| Controls | Gain, Bass, Treble, Duck, Gate Threshold, Gate Duration |
| Connector | Pluggable Euro Screw Type |
| Dimensions | 1-3/8" W x 3-1/8" H x 3-1/2" D |
| Weight | 3.8 oz. |
