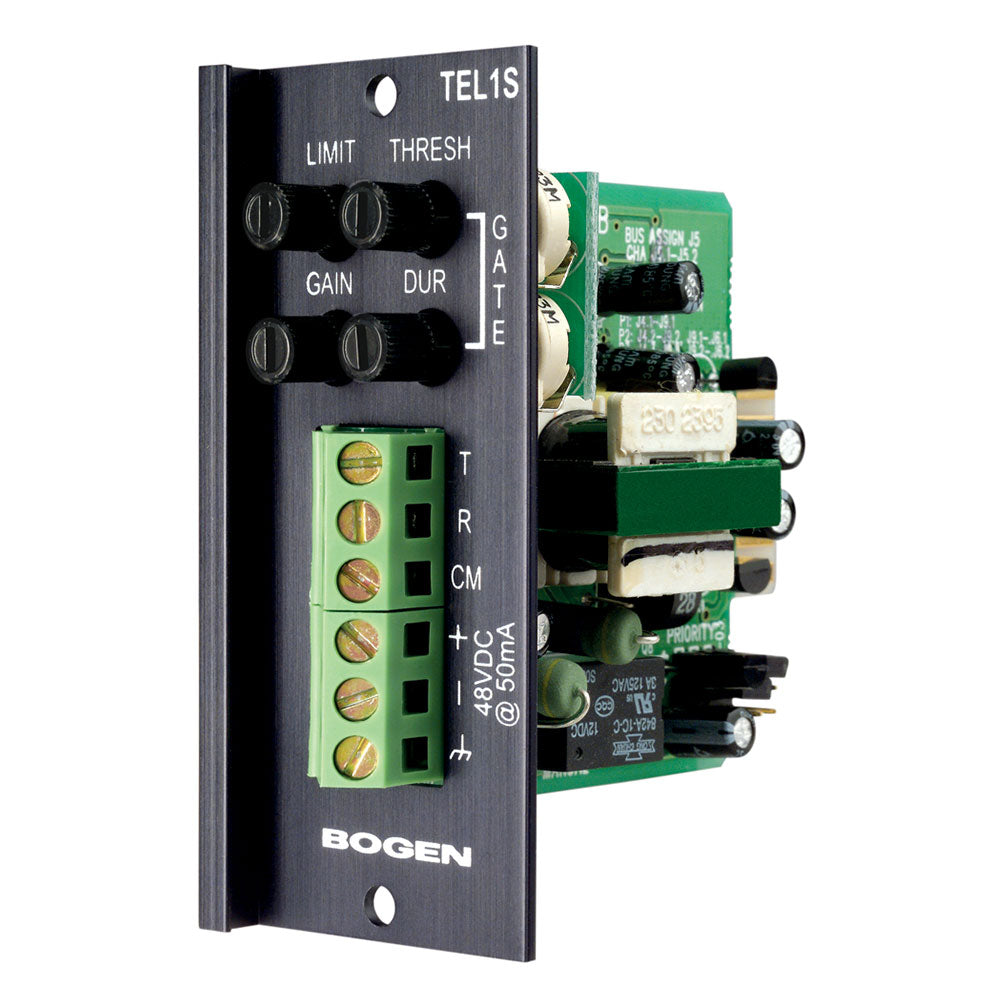

Bogen TEL1S Telephone Input Module (for Bogen Matrix Systems)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Bogen's advanced plug-in modules provide a wide range of functions to support a variety of applications. These modules support different signal-source requirements, including the ability to interface to balanced and unbalanced high- and low-level inputs, stereo or mono, telco systems, and microphones.
Features:
- Loop start or ground start trunk interfacing (requires external power supply)
- Dry loop interface to paging ports
- Audio-activated paging in dry loop
- Gain/Trim control
- Limiter
- Noise gate w/Threshold & Duration
- Mute send & receive
- 4 Priority levels
- Bus assignable
- Transformer-isolated
- Screw terminal connections
| Gain | 0 dB to 30 dB |
| Frequency Response | +0/-3 dB, 20 Hz - 20 kHz |
| S/N (20 Hz - 20 kHz) | -90 dBV @ 30 dB of gain, -120 dBV EIN |
| Distortion | < 0.1%, 20 Hz - 20 kHz |
| Input Impedance | Dry loop 30k ohms, Wet loop 1k ohms |
| Limit (threshold) | -10 dBV to off |
| Gate Threshold | 3 mV to 30 mV |
| Gate Duration | 0.5s to 5s |
| Priority | Four levels |
| External Power | 48V DC (for talk battery) |
| CMRR | > 80 dB @ 1 kHz |
| Controls | Gain, Limit, Gate Threshold, Gate Duration |
| Connector | 6-position barrier strip |
| Dimensions | 1-3/8" W x 3-1/8" H x 3-1/2" D |
| Weight | 2.8 oz. |
