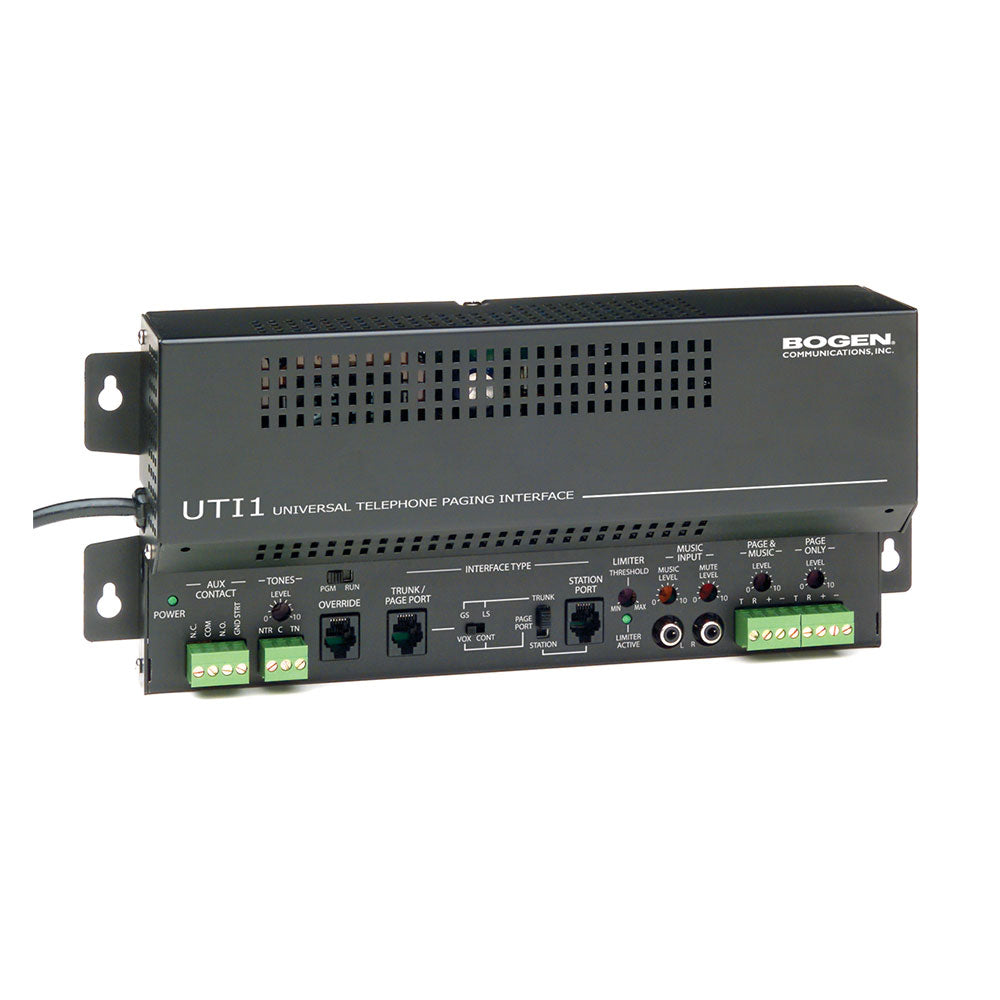

Bogen UTI1 Universal Telephone Interface (for Single-Zone Paging Systems)


  • Dale #:

    BOGE-UTI1
  • Availability:

    Not in Stock - Reserve Yours
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The UTI1 Universal Telephone Interface provides single-zone paging for one-way applications such as self-amplified speaker systems. It is compatible with all standard analog port types and includes two audio outputs with level controls, each of which can provide audio for 150 Bogen self-amplified... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The UTI1 Universal Telephone Interface provides single-zone paging for one-way applications such as self-amplified speaker systems. It is compatible with all standard analog port types and includes two audio outputs with level controls, each of which can provide audio for 150 Bogen self-amplified speakers. A 24V DC @ 1A internal power supply is available to power external equipment.

Features:

  • Single-zone paging
  • Telephone interfaces: loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, page port voice activation
  • Simple 2-switch interface setup
  • Override paging (using loop start trunk or page port contact closure activation)
  • Programmable activation of AUX contacts
  • C-form contact
  • Two audio outputs (Page Only and Page with Background Music) both with level controls
  • Each output can provide audio drive for 150 selfamplified speakers
  • High impedance transformer-isolated background music input with volume control
  • Variable music mute
  • Night Ringer (contact closure activation)
  • Tone Trigger (tone and duration selectable, closureactivated)
  • Tone burst (2 to 7 sec), chime, and slow whoop tone selections
  • Pre-Announce/Confirmation Tone
  • Adjustable output limiter with threshold control and active indicator
  • Programmable timers control page duration (station and trunk)
  • DTMF programming
  • DTMF Block to help suppress DTMF tones over paging system
  • Non-volatile memory for setup data (no backup battery required)
  • Setup Tone to assist in volume setting
  • Pluggable terminal strips
  • Microcontroller-based operation
  • Wall mounting flanges
  • Rack panel kit with security cover available (RPKUTI1 sold separately)
  • Two-Year Warranty

More +

Product Specs

Input Impedance 600 ohms (nominal)
Input Level -10 dBm (nominal)
VOX Sensitivity -30 dBm
BGM Input Impedance 20k ohms
Music Input Level -10 dBm (nominal)
Output Level -10 dBm (nominal)
Output Impedance 8 ohms
Speaker Drive Capacity 150
Timer Duration Default: 10s to 990s
VOX: 1s to 9s
(both defeatable)
CPC Disconnect Pulse greater than 300ms
Contact Closure 2A @ 30V DC
0.6A @ 125V AC
DC Output 1A @ 24V DC
Voltage: 120V AC
Current: 0.5A
Temperature 0 to 104º F (-18 to 40º C)
Humidity 0 to 85% non-precipitating
Approvals C-UL (UL60950);
FCC Part 68 Registered;
FCC Part 15 Compliant;
Industry Canada CS-03
Dimensions 12-1/4" W x 5-1/4" H x 2-1/2" D
Product Weight 5 lb.
