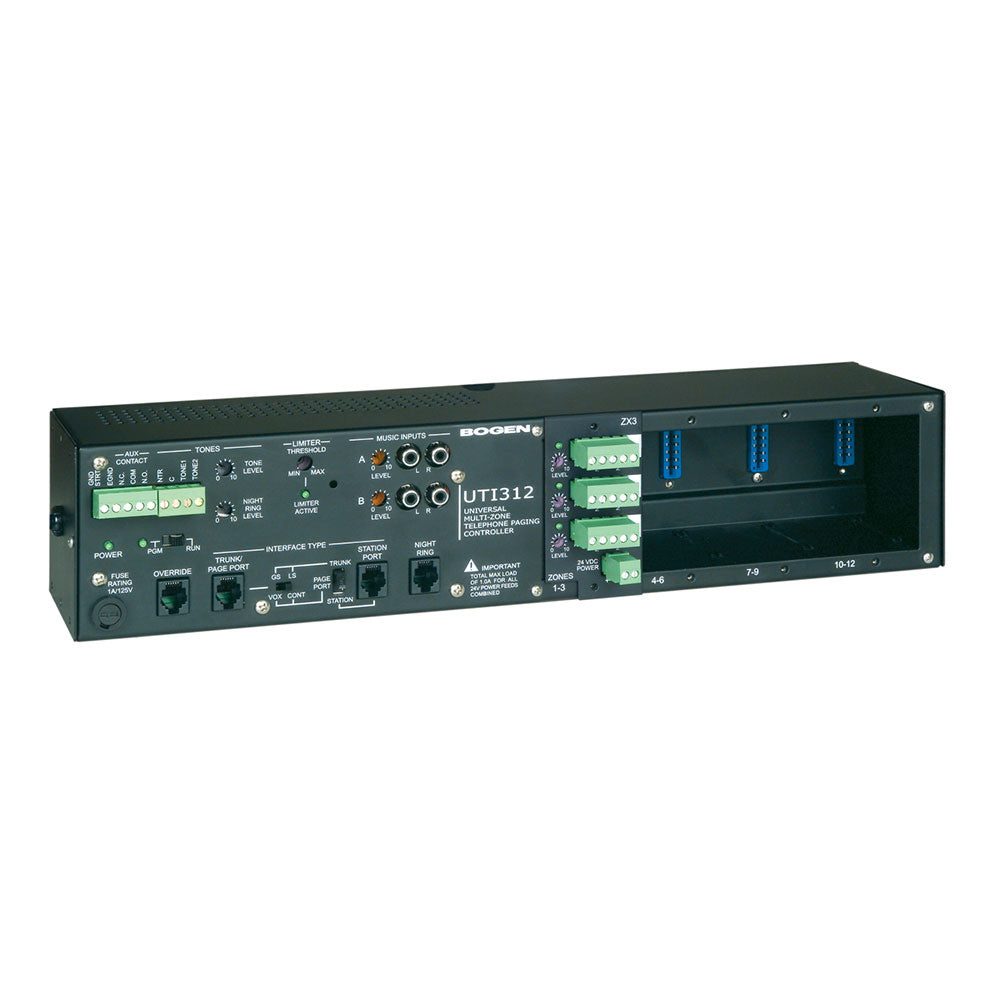

Bogen UTI312 Universal Telephone Interface (for Multi-Zone Paging Systems)


  • Dale #:

    BOGE-UTI312
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The UTI312 Zone Paging Contoller provides multi-zone paging for one-way applications such as self-amplified speaker systems, with each output capable of providing audio for up to 150 self-amplified speakers.The UTI312 is compatible with all standard analog port types. Each UTI312 comes with a pre... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The UTI312 Zone Paging Contoller provides multi-zone paging for one-way applications such as self-amplified speaker systems, with each output capable of providing audio for up to 150 self-amplified speakers.The UTI312 is compatible with all standard analog port types. Each UTI312 comes with a pre-installed ZX3 module for three zones of paging and is expandable up to 12 zones. The UTI312 offers up to 24 programmable paging zone groups as well as all-call, auto select, override, night ring, two tone triggers, and code calling zone groups.The UTI312 also offers flexible dialing.

Features:

  • Expandable from 3 up to 12 zones using ZX3 modules
  • Up to 24 programmable paging zone groups
  • Telephone interfaces: loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, page port voice activation
  • Simple 2-switch interface setup
  • Programmable activation of AUX contacts
  • C-form contact per zone
  • 24V DC, 1A internal power supply
  • Provides audio drive for up to 150 one-way self-amplified speakers per zone
  • Adjustable output limiter with threshold control and active indicator
  • Two background music busses, selectable per zone
  • Two high-impedance transformer isolated background music inputs
  • Stereo combining inputs for background music busses
  • All-Call paging zone group
  • Auto Select paging zone group
  • Override paging (using loop start trunk or page port contact closure activation) with zone group
  • Night Ringer (90V and contact closure activation) with zone group
  • Two Tone Triggers (tone and duration selectable, closure activated) with individual zone groups
  • Select tone burst, chime, double chime, or slow whoop
  • Code Calling with zone group
  • 2 to 5 Digit dialing with flexible dialing plan for zone and zone group numbers
  • Non-volatile memory for setup data (no backup battery required)
  • Pre-Announce Tone
  • Confirmation Tone
  • Setup Tone to assist in volume setting
  • Pluggable terminal strips
  • Microcontroller-based operation
  • DTMF programming
  • DTMF Block to help suppress DTMF tones over paging system
  • Programmable timers control page duration (station and trunk)
  • Wall- or Rack-mountable
  • Two-Year Warranty (both UTI312 and ZX3)

More +

Product Specs

Input Impedance 600 ohms (nominal)
Input Level -10 dBm (nominal)
VOX Sensitivity -30 dBm
Background Music Input Impedance 20k ohms
Music Input Level -10 dBm (nominal)
Output Level -10 dBm nominal
Output Impedance 8 ohms
Speaker Drive Capacity 150 per zone
Timer Duration Default: 10s to 990s
VOX: 1s to 9s
(both defeatable)
CPC Disconnect Pulse greater than 300ms
ZX3 Contact Closure 2A @ 30V AC, 0.5A @ 125V AC
AUX Contact Closure 2A @ 30V DC, 0.6A @ 125V AC
DC Output 1A @ 24V DC
Voltage: 120V AC
Current: 0.75A
Temperature 0 to 104º F (-18 to 40º C)
Humidity 0 to 85% non-precipitating
Approvals C-UL (UL60950);
FCC Part 68 Registered;
FCC Part 15 Compliant;
Industry Canada CS-03
Dimensions 16-3/8" W x 3-1/2" H x 4-7/8" D
19" W x 3-1/2" H x 4-7/8" D (with mounting flanges)
Product Weight 8 lb.
