Bogen V60 Power Vector Series Mixer Amplifier with Modular Inputs - 60 Watts


  • Dale #:

    BOGE-V60
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Bogen's Power Vector modular amplifiers offer a wide range of power levels from which to choose, with five models from 35W to 250W. The amplifiers are designed to work with both high- (70/25V) and low- (4/8-ohm) impedance speaker systems. Each model includes eight module bays for plug-in input mo... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

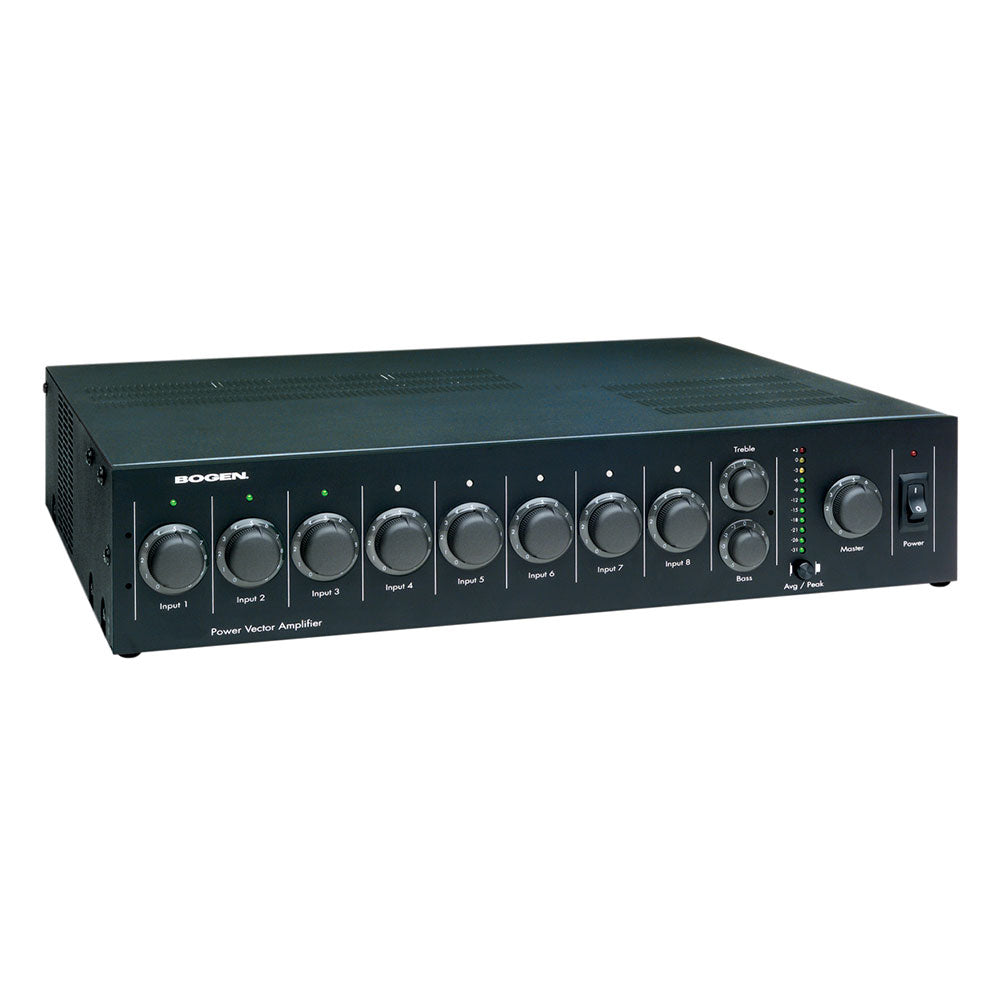

Bogen's Power Vector modular amplifiers offer a wide range of power levels from which to choose, with five models from 35W to 250W. The amplifiers are designed to work with both high- (70/25V) and low- (4/8-ohm) impedance speaker systems. Each model includes eight module bays for plug-in input modules and allows up to four levels of priority between modules. Two module bays are capable of accepting plug-in signal-processing output modules. Each module is controlled by an independent volume control with an associated signal/clip LED for signal status. An 11-segment LED output meter monitors output signal level. Each model includes a motorized master volume control that can be controlled using a remote volume control panel (RVCP, sold separately).

Features:

  • 5 models ranging from 35W to 250W each; a mixer-only version (VMIX) is also available
  • Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
  • 8 module bays
  • Wide selection of advanced plug-in modules (modules sold separately)
  • 4 levels of priority between modules
  • 2 module bays capable of handling plug-in signalprocessing output modules
  • 11-segment LED output level meter monitors the output level of the power amplifier with Avg./Peak meter switch
  • Motorized master volume control can be remotely operated

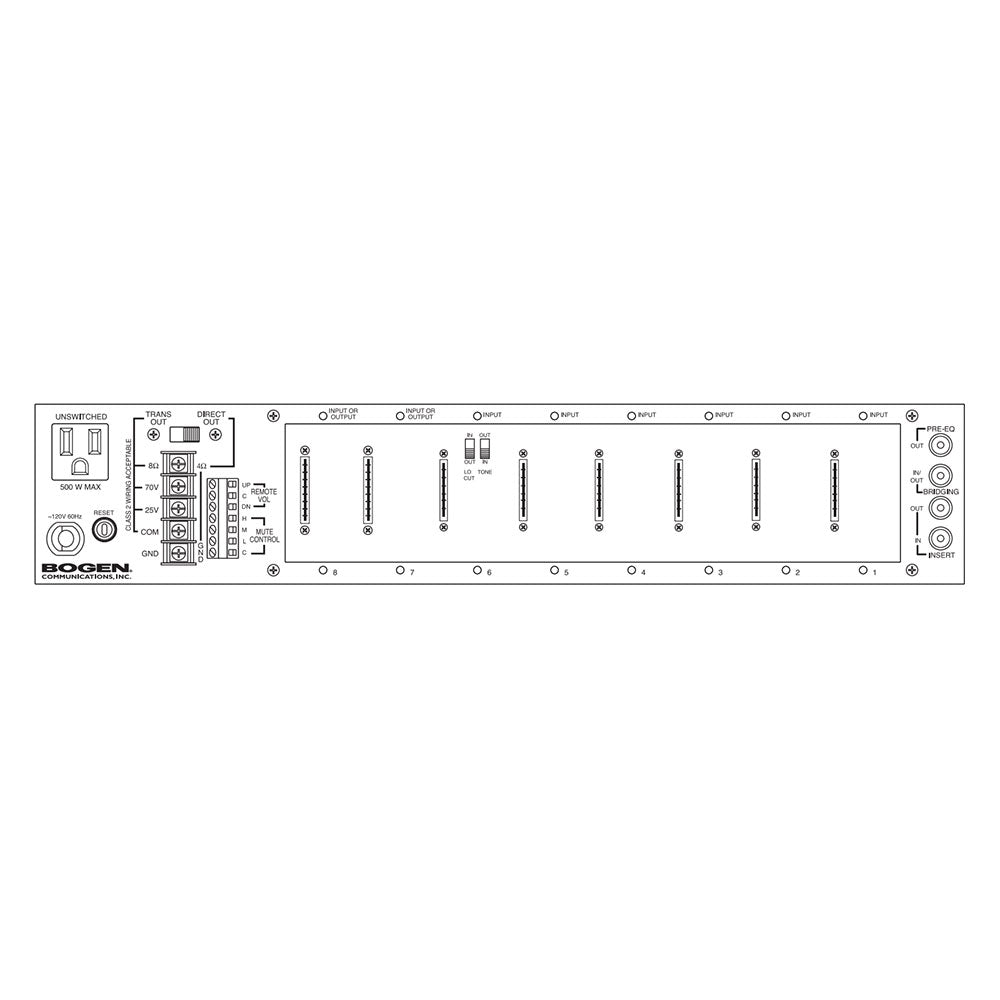

  • Lockable switch permits user to select either transformer-coupled outputs or a direct lowimpedance output
  • 5-position barrier strip, with clamping washers, provides connections for speaker loads
  • Bridging In/Out connector
  • External access to priority mute buses
  • Bridging jack and Mute terminals join multiple Power Vector amps and mixers together
  • Independent volume control for each of the eight module bays
  • Two-color LED for each channel indicates input signal or clipping
  • Bass and treble control with bypass switch (located in module bay 6)
  • 125 Hz Low Cut switch (located in module bay 6)
  • Signal-processing insert jacks allow external equipment to be inserted between the pre-amp output and the power amp input
  • Pre-EQ, unbalanced, buffered output signal (“post” all unit controls, but “pre” any external “Insert” equipment connected)
  • Grounded, unswitched AC convenience receptacle with a 500W maximum capacity provided for external equipment
  • 8 module security cover/filler plates included with amplifier (PVMC)
  • Push-button remote volume control panel (Model RVCP, sold separately)
  • Security cover to selectively protect volume, bass, and treble controls (Model PVSC, sold separately)
  • Rack mountable (with rack mounting kit RPK87, sold separately)
  • 2 rack spaces high (3-1/2")
  • Listed to UL Standard 60065 for U.S. and Canada

More +

Product Specs

Power Output (RMS) Rated: 60W
Typical @ 1KHz: 85W
Frequency Response Transformer: 45 Hz to 20 kHz; +0/-2 dB
Direct: 20 Hz to 20 kHz; +0/-1 dB
Distortion Transformer: < 0.5%
Direct: < 0.1% (.05 typical @ 1 kHz)
Signal-to-Noise Fundamental: -94 dB
With SAX1R Module: -70 dB
With MIC1S Module: -60 dB
With TEL1S Module: -70 dB
Tone Controls Bass Frequency: @100 Hz (+/- 10 dB minimum)
Treble Frequency: @10 kHz (+/- 10 dB minimum)
Low Cut Frequency: @125 Hz (-6 dB/octave)
Sensitivity 0.4V (at backplane connector)
Output Regulation 2 dB or better, no load to full load
Output Impedance Transformer-Coupled: 70V, 25V, 8 ohms (bal or unbal)
Direct Coupled: 4 ohms (minimum)
Thermal Emissions (BTU/hr.) 204.9
Inserts Insert "OUT" Level: 1VRMS (@FRP)
Insert "OUT" Impedance: 50 ohms maximum
Insert "IN" Sensitivity: 1VRMS
Insert "IN" Impedance: 10k ohms minimum
Bridging In/Out Bus Level: 250 mVRMS (@FRP)
Bus Impedance: 10k ohms maximum
Pre-EQ Output Output Level: 4VRMS (@FRP)
Output Impedance: 50 ohms maximum
AC Power Receptacle 500 watts maximum power, unswitched
AC Voltage 120V AC, 60 Hz
AC Current 1.3A
Product Weight (lb.) 26
Dimensions 17-1/4" W x 3-7/8" H x 14-3/4" D
