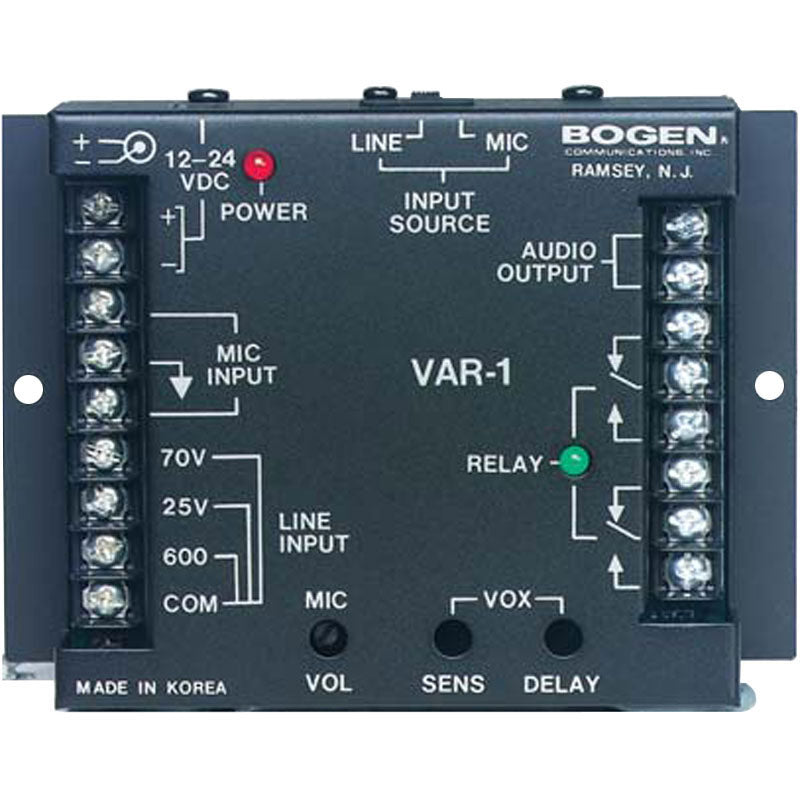

Bogen VAR1 Voice Acitvated Relay


  • Dale #:

    BOGE-VAR1
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm

Description

The VAR1 is a relay device that monitors audio activity over a wide range of input voltages and operates two sets of C-Form relay contacts in response to detected activity. The VAR1 can be used to detect voltages as low as signals directly from a microphone or as high as signals from 70V speaker ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The VAR1 is a relay device that monitors audio activity over a wide range of input voltages and operates two sets of C-Form relay contacts in response to detected activity. The VAR1 can be used to detect voltages as low as signals directly from a microphone or as high as signals from 70V speaker systems. A low-level output of the detected audio, transformer-isolated from the input, is also made available for use with other equipment. The VAR1 can also be used as a balanced, low-impedance microphone pre-amp. The VAR1 is ideally suited to provide a set of contact closures for paging ports of lower cost telephone systems that do not have a set of AUX contacts to trigger paging equipment. An adjustable release delay (up to 25 seconds) keeps the paging system from dropping out in the middle of a page.

Features

  • Monitors audio activity over a wide range of input voltages
  • Two sets of C-Form (both N.O. and N. C.) relay contacts respond to audio activity
  • Four levels of signals: microphone, 600-ohm line, 25V, and 70V speaker systems
  • Built-in balanced, low noise, high gain microphone pre-amp
  • Transformer-isolated, 600-ohm small signal level output of detected audio available
  • Works with self-amplified or central-amplified paging systems
  • Separate microphone pre-amp gain control
  • Adjustable release delay: 0.25s to 25s
  • Trigger threshold adjustment
  • Relay active indicator light
  • Accessories: PRS40C 12V DC Power Supply (sold separately)

More +

Product Specs

LINE INPUT
Impedance600 ohms
Frequency Response100 Hz to 10 kHz
70V Input Impedance200k ohms
Output Level400 mVrms
25V Input Impedance75k ohms
Output Level420 mVrms
Gain62 dB
Sensitivity750 microvolts, rms for 1Vrms out
Distortion< 2%
Frequency Response200 Hz to 10 kHz
Output Signal-to-Noise Ratio55 dB
GENERAL
VOX Sensitivity20 mV to 150 mVrms @ 600 ohms Line input
Time Delay Range (approx.)0.25 to 25 sec.
Relay Contact Rating2A/30V DC, 0.5A/120V AC
Power RequirementsExternal 12V to 24V DC @ 100mA (sold separately)
Dimensions5-3/8" W × 3-7/8" H × 1-3/8" D
Product Weight1 lb.
