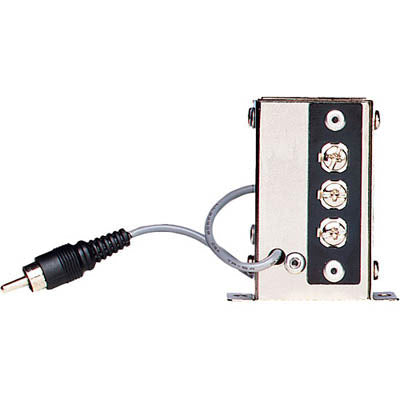

Bogen WMT1A Hi-Z Line Input - 500 Ohm Matching Transformer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Model WMT1A transformer is designed especially for matching inputs from, or outputs to, a 600-ohm line. As an input-matching transformer, it may be used to connect telephone systems to most Bogen public address amplifiers for telephone paging. It also functions as an output-matching transformer in feeding program material over a 600-ohm telephone line for music-on-hold. It is compatible with any amplifier having a 25V output terminal.
Features
- Hi-Z, 10k-ohm primary impedance
- Lo-Z, 600-ohm secondary impedance, balanced with center tap
- Matches high-to-low impedance or low-to-high impedance
- Adapts line level signals to microphone inputs
- RCA connector for Hi-Z side
- Screw terminals for Lo-Z side
Model WMT1A transformer is designed especially for matching inputs from, or outputs to, a 600-ohm line. As an input-matching transformer, it may be used to connect telephone systems to most Bogen public address amplifiers for telephone paging. It also functions as an output-matching transformer in feeding program material over a 600-ohm telephone line for music-on-hold. It is compatible with any amplifier having a 25V output terminal.
Features
- Hi-Z, 10k-ohm primary impedance
- Lo-Z, 600-ohm secondary impedance, balanced with center tap
- Matches high-to-low impedance or low-to-high impedance
- Adapts line level signals to microphone inputs
- RCA connector for Hi-Z side
- Screw terminals for Lo-Z side
