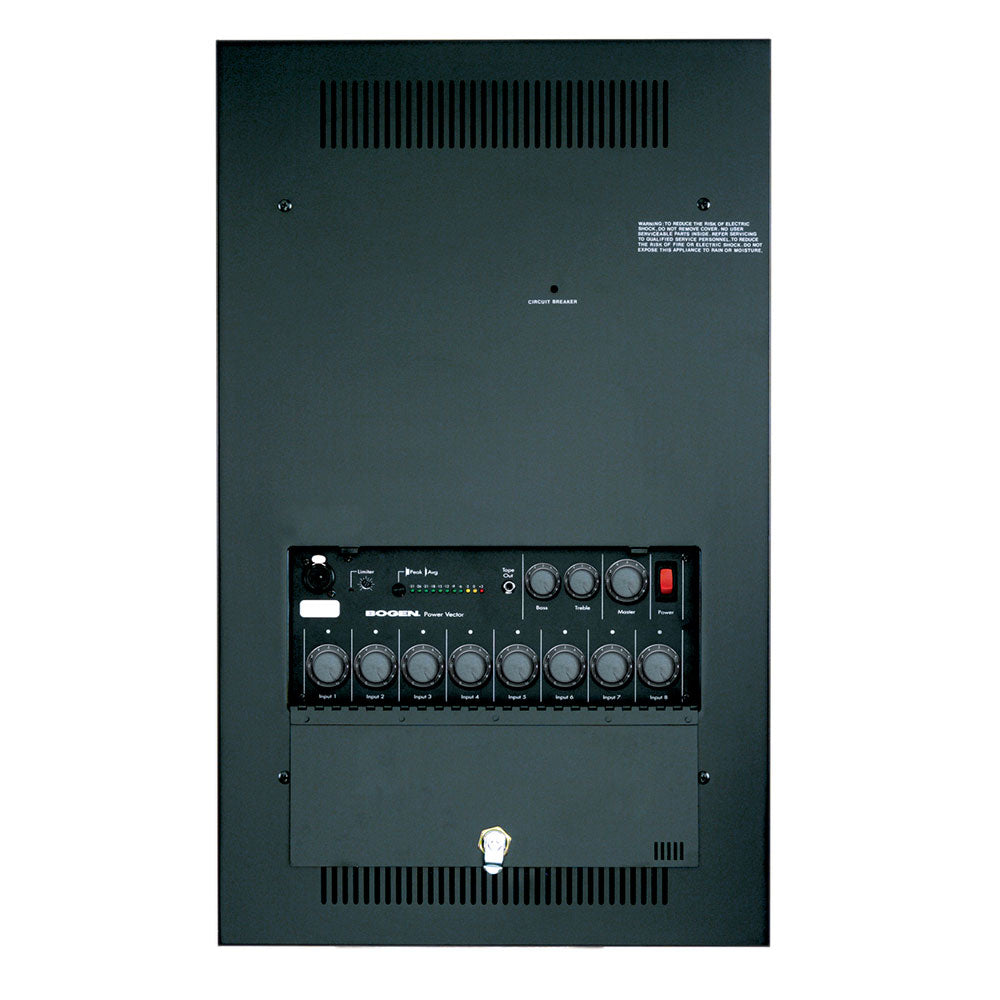

Bogen WV100 Wall Mount 100-Watt Mixer Amplifier


  • Dale #:

    BOGE-WV100
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Bogen's Wall-Mount Power Vector modular amplifiers offer a wide range of power from which to choose from, with three models ranging from 100W to 250W. The amplifiers are designed to work with both high- (70/25V) and low- (4/8-ohm) impedance speaker systems. Each model includes eight module bays f... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Bogen's Wall-Mount Power Vector modular amplifiers offer a wide range of power from which to choose from, with three models ranging from 100W to 250W. The amplifiers are designed to work with both high- (70/25V) and low- (4/8-ohm) impedance speaker systems. Each model includes eight module bays for plug-in input modules and allows for up to four levels of priority between modules. Two module bays are capable of accepting signal processing plug-in output modules. Each module is controlled by an independent volume control with an associated signal/clip LED for signal status. An 11-segment LED-output meter monitors output signal level. Each model includes a motorized master volume control that can be controlled using a remote volume control panel (RVCP, sold separately).

Features:

  • 100-watts, with a large power reserve
  • Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
  • 8 module bays
  • Wide selection of advanced plug-in modules
  • 2 module bays capable of handling signal processing plug-in output modules
  • 4 levels of priority between modules
  • 11-segment LED-output level meter monitors the output level of the power amplifier with Peak and Average meter switch
  • Adjustable output level limiter with limit indicator
  • Tape output available on front of unit
  • Optional front-mounted input combo jack with 1/4" stereo phone and female XLR capabilities
  • Motorized master volume control can be remotely operated
  • Bass and treble controls with center detent
  • Two-color LED for each channel indicates input active/clipping
  • Switch permits user to select either transformer coupled outputs or a direct low-impedance output
  • Bass and treble control bypass switch (located in module bay 6)
  • 125 Hz Lo-cut feature (switch located in module bay 6)
  • 5-position barrier strip, with clamping washers, provides connections for speaker loads
  • Master mute function overrides all audio from the mixer section of the amplifier
  • Screw terminal for master mute and remote volume control functions
  • Each of the 8 module bays has an associated independent volume control
  • Remote volume control panel (RVCP) (sold separately)
  • Requires flush-mount (Model BBF) or surfacemount (Model BBS) back boxes (sold separately)
  • Requires front cover door (WMAD-sold separately)
  • Listed to UL Standard 60065 for US and Canada

More +

Product Specs

Power Output (RMS) 100W (140W Typical, @1 kHz/0.1%/4W)
Frequency Response Transformer: 45 Hz to 20 kHz; 0/-2 dB @ FRP
Direct: 20 Hz to 20 kHz; 0/-1 dB @ FRP
Distortion Transformer: 0.5% THD+N, Maximum,
Full-rated bandwidth @ FRP
Direct: 0.1% THD+N, Maximum,
Full-rated bandwidth @ FRP
Signal-to-Noise Fundamental: -94 dB*
With Aux Module: -70 dB*
With Mic Module: -60 dB*
With Tel Module: -70 dB*
* Referenced to full-rated power (FRP) output level, 20 Hz to 20 kHz bandwidth limited.
Tone Controls Bass Frequency: 100 Hz (+/- 10 dB minimum)
Treble Frequency: 10 kHz (+/- 10 dB minimum)
Low Cut Frequency: 125 Hz @ -6 dB/octave
Sensitivity 0.4V (at backplane connector)
Output Regulation 2 dB or better, no load to full load
Output Impedance Transformer-Coupled: 70V, 25V, 8 ohms; balanced or unbalanced
Direct Coupled: 4 ohms unbalanced
Tape Out Output Level: 4 VRMS @ FRP
Output Impedance: 50 ohms maximum
Overload Protection Electronic overload protection (auto reset)
Thermal Protection Thermistor attached to heat sink
Line Fusing Resettable circuit breaker
Cooling Thermally controlled 3-speed fan
Power Consumption 2.0A @ 120V AC, 60 Hz
Thermal Emissions 495.2 BTU/hr.
Dimensions 14-1/8" W x 21" H
Product Weight 27 lb.
