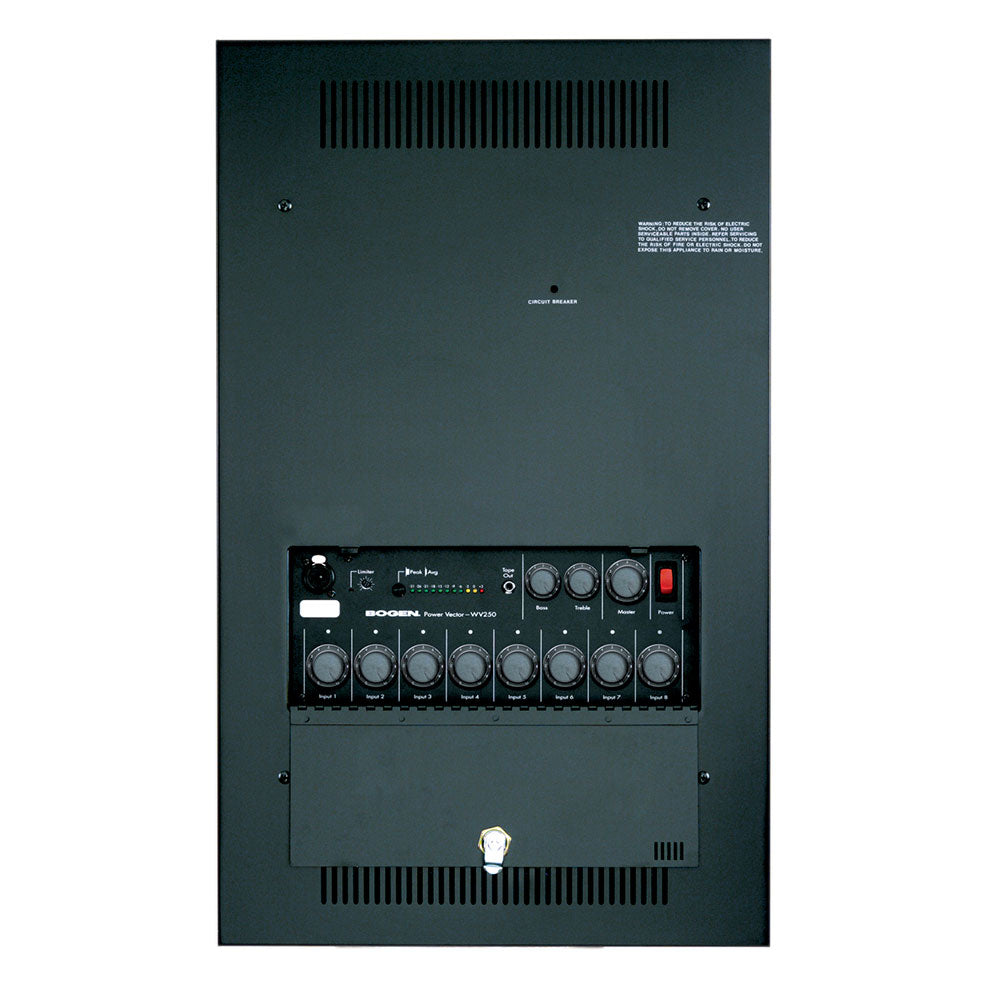

Bogen WV250 Wall Mount 250-Watt Mixer Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Bogen's Wall-Mount Power Vector modular amplifiers offer a wide range of power from which to choose from, with three models ranging from 100W to 250W. The amplifiers are designed to work with both high- (70/25V) and low- (4/8-ohm) impedance speaker systems. Each model includes eight module bays for plug-in input modules and allows for up to four levels of priority between modules. Two module bays are capable of accepting signal processing plug-in output modules. Each module is controlled by an independent volume control with an associated signal/clip LED for signal status. An 11-segment LED-output meter monitors output signal level. Each model includes a motorized master volume control that can be controlled using a remote volume control panel (RVCP, sold separately).
Features:
- 250-watts, with a large power reserve
- Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
- 8 module bays
- Wide selection of advanced plug-in modules
- 2 module bays capable of handling signal processing plug-in output modules
- 4 levels of priority between modules
- 11-segment LED-output level meter monitors the output level of the power amplifier with Peak and Average meter switch
- Adjustable output level limiter with limit indicator
- Tape output available on front of unit
- Optional front-mounted input combo jack with 1/4" stereo phone and female XLR capabilities
- Motorized master volume control can be remotely operated
- Bass and treble controls with center detent
- Two-color LED for each channel indicates input active/clipping
- Switch permits user to select either transformer coupled outputs or a direct low-impedance output
- Bass and treble control bypass switch (located in module bay 6)
- 125 Hz Lo-cut feature (switch located in module bay 6)
- 5-position barrier strip, with clamping washers, provides connections for speaker loads
- Master mute function overrides all audio from the mixer section of the amplifier
- Screw terminal for master mute and remote volume control functions
- Each of the 8 module bays has an associated independent volume control
- Remote volume control panel (RVCP) (sold separately)
- Requires flush-mount (Model BBF) or surfacemount (Model BBS) back boxes (sold separately)
- Requires front cover door (WMAD-sold separately)
- Listed to UL Standard 60065 for US and Canada
| Power Output (RMS) | 250W (340W Typical, @1 kHz/0.1%/4W) |
| Frequency Response | Transformer: 45 Hz to 20 kHz; 0/-2 dB @ FRP Direct: 20 Hz to 20 kHz; 0/-1 dB @ FRP |
| Distortion | Transformer: 0.5% THD+N, Maximum, Full-rated bandwidth @ FRP Direct: 0.1% THD+N, Maximum, Full-rated bandwidth @ FRP |
| Signal-to-Noise | Fundamental: -94 dB* With Aux Module: -70 dB* With Mic Module: -60 dB* With Tel Module: -70 dB* * Referenced to full-rated power (FRP)_output level, 20 Hz to 20 kHz bandwidth limited. |
| Tone Controls | Bass Frequency: 100 Hz (+/- 10 dB minimum) Treble Frequency: 10 kHz (+/- 10 dB minimum) Low Cut Frequency: 125 Hz @ -6 dB/octave |
| Sensitivity | 0.4V (at backplane connector) |
| Output Regulation | 2 dB or better, no load to full load |
| Output Impedance | Transformer-Coupled: 70V, 25V, 8 ohms; balanced or unbalanced Direct Coupled: 4 ohms unbalanced |
| Tape Out | Output Level: 4 VRMS @ FRP Output Impedance: 50 ohms maximum |
| Overload Protection | Electronic overload protection (auto reset) |
| Thermal Protection | Thermistor attached to heat sink |
| Line Fusing | Resettable circuit breaker |
| Cooling | Thermally controlled 3-speed fan |
| Power Consumption | 5.5A @ 120V AC, 60 Hz |
| Thermal Emissions | 911.9 BTU/hr. |
| Dimensions | 14-1/8" W x 21" H |
| Product Weight | 28 lb. |
