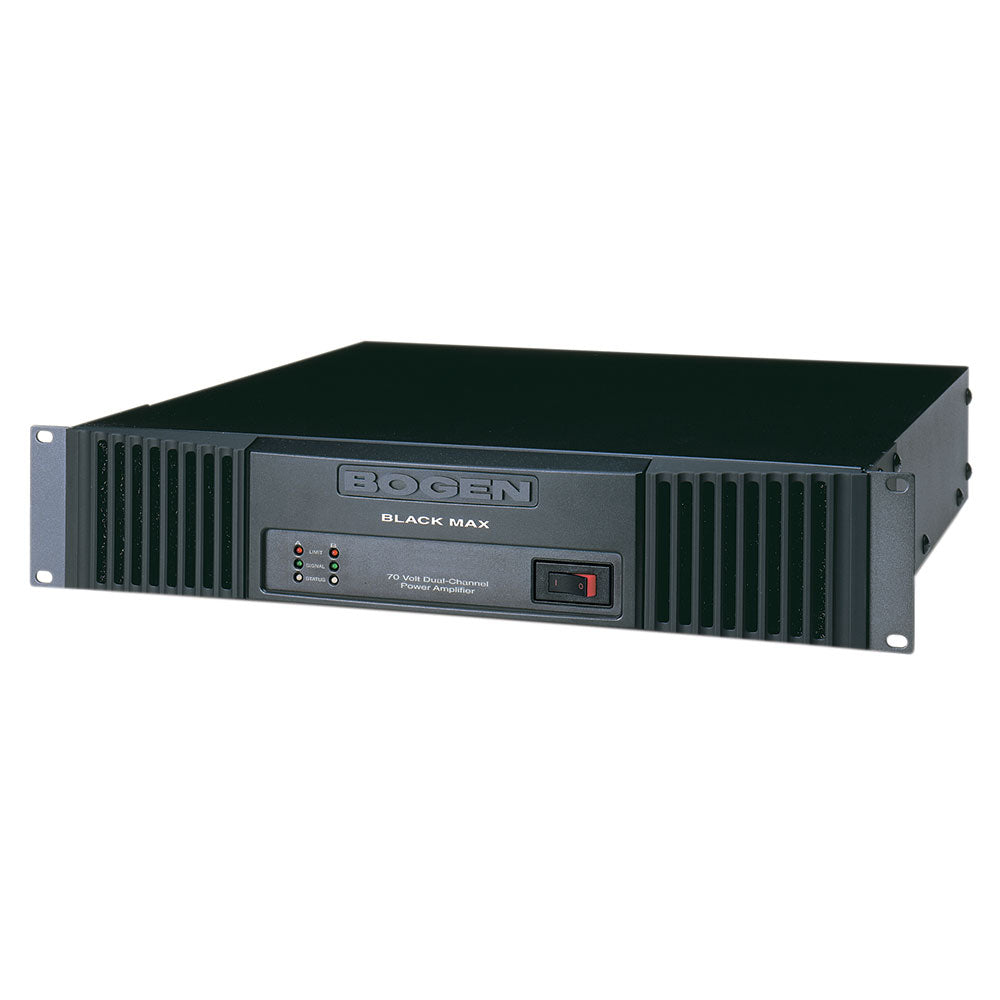

Bogen X600 Black Max Series 600-Watt Install Power Amplifier


  • Dale #:

    BOGE-X600
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Bogen's Black Max amplifiers are designed to provide maximum performance in constant voltage speaker systems. Dual 70V transformerless outputs deliver exceptionally clean, full bandwidth audio to speaker systems. Up to 1200 watts of total output power on two separate channels of audio (up to 600W... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Bogen's Black Max amplifiers are designed to provide maximum performance in constant voltage speaker systems. Dual 70V transformerless outputs deliver exceptionally clean, full bandwidth audio to speaker systems. Up to 1200 watts of total output power on two separate channels of audio (up to 600W per channel/zone) are available in a single unit. High efficiency class H amplifier design and auto-sleep feature reduce power consumption on continuously-powered systems. Specifically designed for the fixed install market with features like: rear-mounted volume controls, independent Low Cut filters, independent input sensitivity switches, input channel link switch, and pluggable input screw terminals. Built-in power sequencing for controlling multiple Black Max amplifiers combats AC current in-rush problems of large audio systems. Massive power toroid and heat sinks; heavy 14-gauge chassis; Back-Slope™ AC voltage stabilization; clip limiters; and DC voltage, over-current, and thermal protection circuits make this a true workhorse amplifier.

Features:

  • Dual 70V output amplifier channels
  • 3 power levels: 600W, 450W, or 300W per channel for 70V speaker systems
  • Low noise, low distortion, and high slew rate
  • High efficiency class H amplifier design
  • Transformerless direct drive outputs
  • Electronically balanced high-impedance inputs
  • Pluggable screw terminals for input connections
  • Independent Low Cut filters (per channel)
  • Independent input sensitivity switches (per channel)
  • Built-in power sequencing for multiple Black Max amplifier installations
  • Pluggable screw terminals for sequencing wiring
  • Rear-panel power sequencing status indicator
  • Overload, short circuit, and thermal protection circuits
  • Input signal channel link switch
  • DC and clip limiting circuits for speaker protection
  • Power-saving sleep mode for intermittent use applications
  • Status, Signal, and Limit indicators
  • Back-Slope™ AC voltage stabilization for dependable performance over varying AC line voltage
  • Heavy-gauge steel chassis with cast aluminum front panel
  • Rear-mounted volume controls
  • Directly stackable, mounts in 2 rack spaces (2 R.U.) without need for extra space above or below
  • 2 independent, continuously variable, cooling fans for dependable and quiet operation
  • Easily removable front fan grilles with filters
  • Listed to UL Standard 60065 for US and Canada

More +

Product Specs

Power Output 600W per channel @ 70V
Input Sensitivity 1V/0.1V
S/N Ratio (20k BW) 104 dB ref. 70V, F.P.
Class of Operation H
Product Weight 46 lb.
Connectors
Power 20A line cord
Requires 20A, NEMA 5-20R Type Receptacle.
Input Pluggable 3-pin screw terminal strips
Output 5-pin "touch-proof" screw terminal barrier strip
Power Bandwidth 20-40 kHz < .5% THD
THD @ 1 kHz rated power less than .02%
Rated Load Impedance (per ch) 11 ohms
Frequency Response @ 1 watt 20 Hz to 20 kHz +/- 0.25 dB
Output Regulation, 1 kHz direct 1.5 dB @ 70V
Inputs 10k-ohm electronically balanced, 3-pin pluggable screw terminal strips
Low Cut Filter 60 Hz, 2nd order roll-off, switch defeatable per channel
AC Input Voltage Range 95-130V AC, 60Hz
Maximum AC Current 20A
Indicators Status, Signal, Limit, AC Power Status (rear)
Temperature Range 15 to 105° F
Thermal Emissions (Full Power) 1667 BTU/hr.
Cooling Dual Forced Air Variable Speed Fan
Physical Dimensions (W x H x D) 17" X 3-1/2" x 18-1/4" (without rack mount brackets attached)
Protection RF, DC, Low-frequency, Thermal, Low-Impedance, Short Circuit, Circuit-Breaker, Clip Limiting
Special Features Sequential Turn-On Circuitry (defeatable), Sleep Mode (defeatable), Back-Slope™ AC voltage regulation, Toroidal Power Transformer, Input Sens, CHB Input Select
