Description

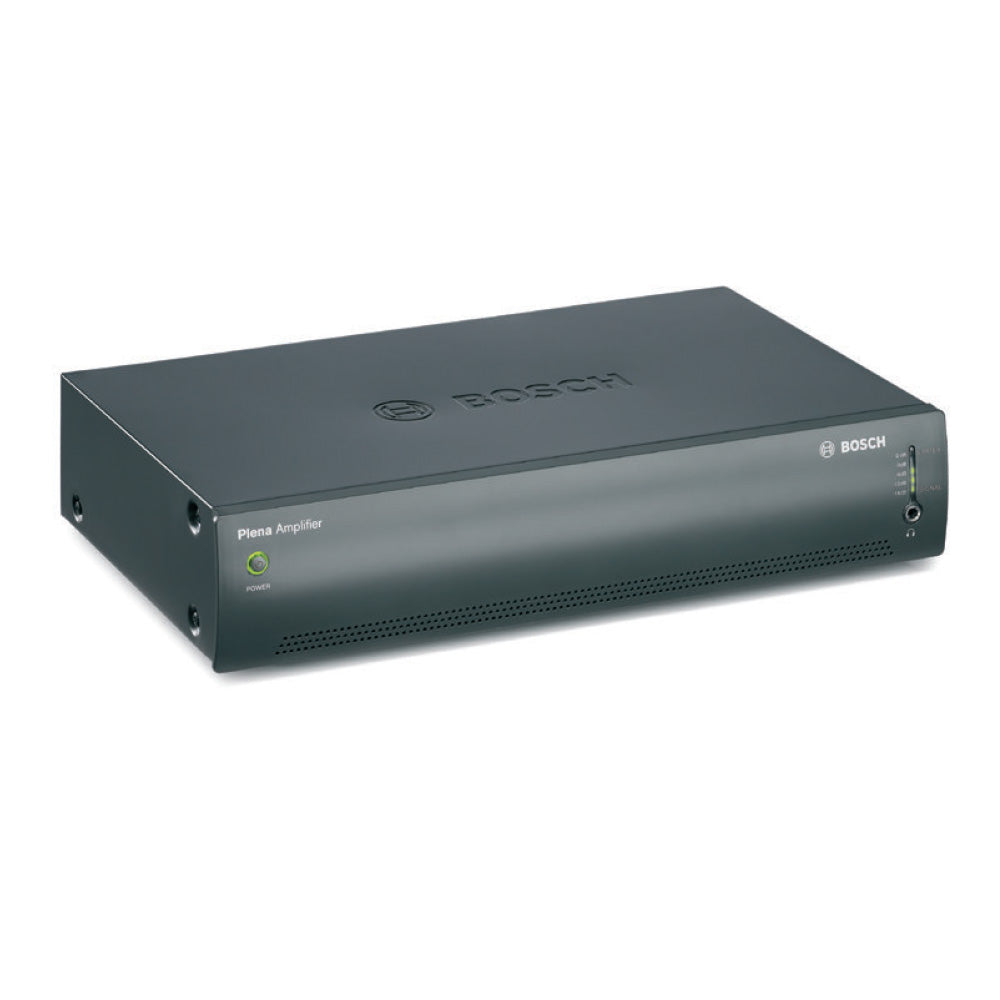

The PLE-1P240-US is a high‑power plug-and‑play cost effective power amplifier that delivers 120 and 240 Watts to constant voltage or 4 ohm loads. Built with premium quality and protections, they offer basic functionality at a budget price. The amplifiers offer straight 1 V and 70 V line in, and 25/70 V and 4 ohm outputs. They can extend the power of the PLE- series mixer‑amplifiers or be combined with the PLE-10M2-US mixer, or work anywhere where more power on an existing 70 V line is needed or when a line level signal is provided.
Features:
- 120 and 240 W power amplifier in a compact housing
- 1 V line level balanced input
- 70 V, 25 V and 4 ohm outputs
- 70 V input for slave operation on 70 V speaker line
- Temperature-controlled forced front to back ventilation (directly stackable)
- 24 VDC backup power with built‑in charger
Protection
The amplifier is protected against overload and short circuits. A limiter protects the amplifier and loudspeaker against accidental overdriving. A temperature-controlled fan ensures proper cooling without producing acoustic noise at lower output levels.
Power input and output

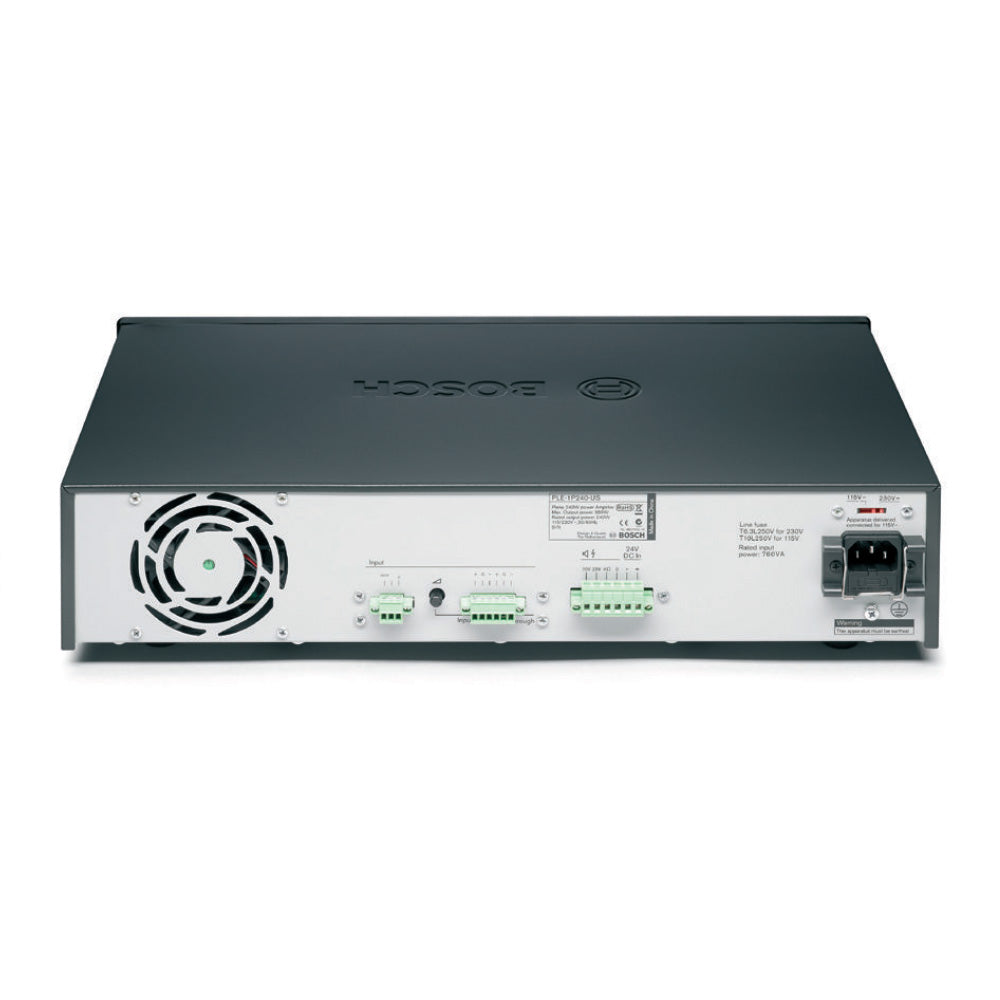

The unit operates both on mains power and on a 24 V battery power supply for emergency backup, with automatic switchover. The amplifier also has a built‑in charger to charge the connected battery. The system has a balanced input and loop‑through facility. This makes it easy to connect multiple amplifiers. The secondary input is a 70 V line input to connect the amplifier to a 25/70 V loudspeaker line to provide more power in remote locations. Gain or level control is located on the rear of the unit to avoid accidental setting change. An LED VU meter shows the output level. The amplifier has 25 and 70 V outputs for constant voltage loudspeaker systems, and a low impedance output for 4 ohm loudspeaker loads.
Mains power supply | |
Voltage | 115 - 230ÊVAC ±10%, 50/60ÊHz |
Inrush Current PLE-1P120-US | 4.5/9ÊA (230/115ÊVAC) |
Inrush Current PLE-1P240-US | 9/18ÊA (230/115ÊVAC) |
Power consumption PLE-1P120-US | 380ÊVA |
Power consumption PLE-1P240-US | 760ÊVA |
Battery power supply | |
Voltage | 24ÊVDC ±15% |
Current PLE-1P120-US | 5.5ÊA |
Current PLE-1P240-US | 11ÊA |
Charge current | 0.5ÊADC |
Charge float voltage | 27.3ÊVDC |
Power consumption (PLE-1P120-US) | |
Max power (mains) | 227ÊW |
-6dB (mains) | 130ÊW |
Idle (mains) | 12ÊW |
Max power (24ÊV) | 7ÊA (150ÊW) |
-6 dB (24ÊV) | 4.4ÊA (194ÊW) |
Idle (24ÊV) | 0.3ÊA (7ÊW) |
Power consumption (PLE-1P240-US) | |
Max power (mains) | 451ÊW |
-6dB (mains) | 244ÊW |
Idle (mains) | 16ÊW |
Max power (24ÊV) | 12ÊA (290ÊW) |
-6 dB (24ÊV) | 8.1ÊA (194ÊW) |
Idle (24ÊV) | 0.3ÊA (7ÊW) |
Performance | |
Max / rated power PLE-1P120-US | 180ÊW / 120ÊW |
Max / rated power PLE-1P240-US | 360ÊW / 240ÊW |
Power reduction on backup power | -1ÊdB |
Frequency response | 50ÊHz to 20ÊkHz (+1/_3ÊdBÊ@ _10ÊdB ref. rated output) |
Distortion | <1%Ê@Êrated output power, 1ÊkHz |
Inputs | |
Connector 1 | 3-pin Euro style, balanced |
Sensitivity | 1ÊVÊ |
Impedance | 20Êkohm |
Connector 2 | 3-pin Euro style, balanced |
Sensitivity | 70ÊVÊ |
Impedance | 300Êkohm |
Dynamic range | 100ÊdB |
CMRR (mic) | >40ÊdB (50ÊHz to 20ÊkHz) |
Loudspeaker outputs 25ÊV and 70ÊV | |
Connector | Euro style pluggable screw terminals |
Loudspeaker output 4Êohm | |
Connector | Euro style pluggable screw terminals |
PLE-1P120-US | 31ÊV (120ÊW) |
PLE-1P240-US | 44ÊV (240ÊW) |
Dimensions (HÊxÊWÊxÊD) | 100 x 430 x 270Êmm (19" wide, 2U high) |
Mounting | Stand-alone, 19"Êrack |
Color | Charcoal |
Weight (PLE-1P120-US) | Approx. 23.2Êlb |
Weight (PLE-1P240-US) | Approx. 27.6Êlb |
Operating temperature | +14 ¼F to +131ʼF |
Storage temperature | -40 ¼F to +158ʼF |
Relative humidity | <95% |
Acoustic noise level of fan | <40ÊdB SPL @ 1Êm temperature controlled |
The PLE-1P240-US is a high‑power plug-and‑play cost effective power amplifier that delivers 120 and 240 Watts to constant voltage or 4 ohm loads. Built with premium quality and protections, they offer basic functionality at a budget price. The amplifiers offer straight 1 V and 70 V line in, and 25/70 V and 4 ohm outputs. They can extend the power of the PLE- series mixer‑amplifiers or be combined with the PLE-10M2-US mixer, or work anywhere where more power on an existing 70 V line is needed or when a line level signal is provided.
Features:
- 120 and 240 W power amplifier in a compact housing
- 1 V line level balanced input
- 70 V, 25 V and 4 ohm outputs
- 70 V input for slave operation on 70 V speaker line
- Temperature-controlled forced front to back ventilation (directly stackable)
- 24 VDC backup power with built‑in charger
Protection
The amplifier is protected against overload and short circuits. A limiter protects the amplifier and loudspeaker against accidental overdriving. A temperature-controlled fan ensures proper cooling without producing acoustic noise at lower output levels.
Power input and output
The unit operates both on mains power and on a 24 V battery power supply for emergency backup, with automatic switchover. The amplifier also has a built‑in charger to charge the connected battery. The system has a balanced input and loop‑through facility. This makes it easy to connect multiple amplifiers. The secondary input is a 70 V line input to connect the amplifier to a 25/70 V loudspeaker line to provide more power in remote locations. Gain or level control is located on the rear of the unit to avoid accidental setting change. An LED VU meter shows the output level. The amplifier has 25 and 70 V outputs for constant voltage loudspeaker systems, and a low impedance output for 4 ohm loudspeaker loads.
Mains power supply | |
Voltage | 115 - 230ÊVAC ±10%, 50/60ÊHz |
Inrush Current PLE-1P120-US | 4.5/9ÊA (230/115ÊVAC) |
Inrush Current PLE-1P240-US | 9/18ÊA (230/115ÊVAC) |
Power consumption PLE-1P120-US | 380ÊVA |
Power consumption PLE-1P240-US | 760ÊVA |
Battery power supply | |
Voltage | 24ÊVDC ±15% |
Current PLE-1P120-US | 5.5ÊA |
Current PLE-1P240-US | 11ÊA |
Charge current | 0.5ÊADC |
Charge float voltage | 27.3ÊVDC |
Power consumption (PLE-1P120-US) | |
Max power (mains) | 227ÊW |
-6dB (mains) | 130ÊW |
Idle (mains) | 12ÊW |
Max power (24ÊV) | 7ÊA (150ÊW) |
-6 dB (24ÊV) | 4.4ÊA (194ÊW) |
Idle (24ÊV) | 0.3ÊA (7ÊW) |
Power consumption (PLE-1P240-US) | |
Max power (mains) | 451ÊW |
-6dB (mains) | 244ÊW |
Idle (mains) | 16ÊW |
Max power (24ÊV) | 12ÊA (290ÊW) |
-6 dB (24ÊV) | 8.1ÊA (194ÊW) |
Idle (24ÊV) | 0.3ÊA (7ÊW) |
Performance | |
Max / rated power PLE-1P120-US | 180ÊW / 120ÊW |
Max / rated power PLE-1P240-US | 360ÊW / 240ÊW |
Power reduction on backup power | -1ÊdB |
Frequency response | 50ÊHz to 20ÊkHz (+1/_3ÊdBÊ@ _10ÊdB ref. rated output) |
Distortion | <1%Ê@Êrated output power, 1ÊkHz |
Inputs | |
Connector 1 | 3-pin Euro style, balanced |
Sensitivity | 1ÊVÊ |
Impedance | 20Êkohm |
Connector 2 | 3-pin Euro style, balanced |
Sensitivity | 70ÊVÊ |
Impedance | 300Êkohm |
Dynamic range | 100ÊdB |
CMRR (mic) | >40ÊdB (50ÊHz to 20ÊkHz) |
Loudspeaker outputs 25ÊV and 70ÊV | |
Connector | Euro style pluggable screw terminals |
Loudspeaker output 4Êohm | |
Connector | Euro style pluggable screw terminals |
PLE-1P120-US | 31ÊV (120ÊW) |
PLE-1P240-US | 44ÊV (240ÊW) |
Dimensions (HÊxÊWÊxÊD) | 100 x 430 x 270Êmm (19" wide, 2U high) |
Mounting | Stand-alone, 19"Êrack |
Color | Charcoal |
Weight (PLE-1P120-US) | Approx. 23.2Êlb |
Weight (PLE-1P240-US) | Approx. 27.6Êlb |
Operating temperature | +14 ¼F to +131ʼF |
Storage temperature | -40 ¼F to +158ʼF |
Relative humidity | <95% |
Acoustic noise level of fan | <40ÊdB SPL @ 1Êm temperature controlled |
