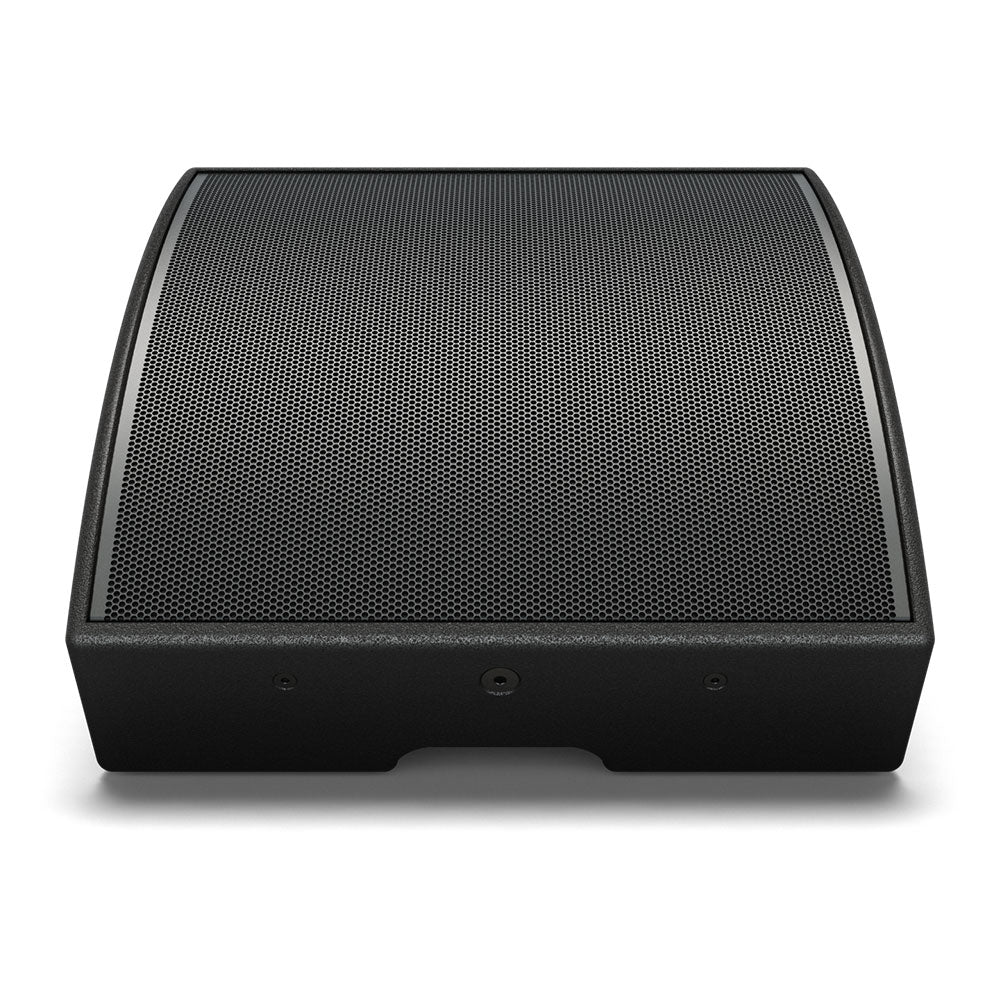

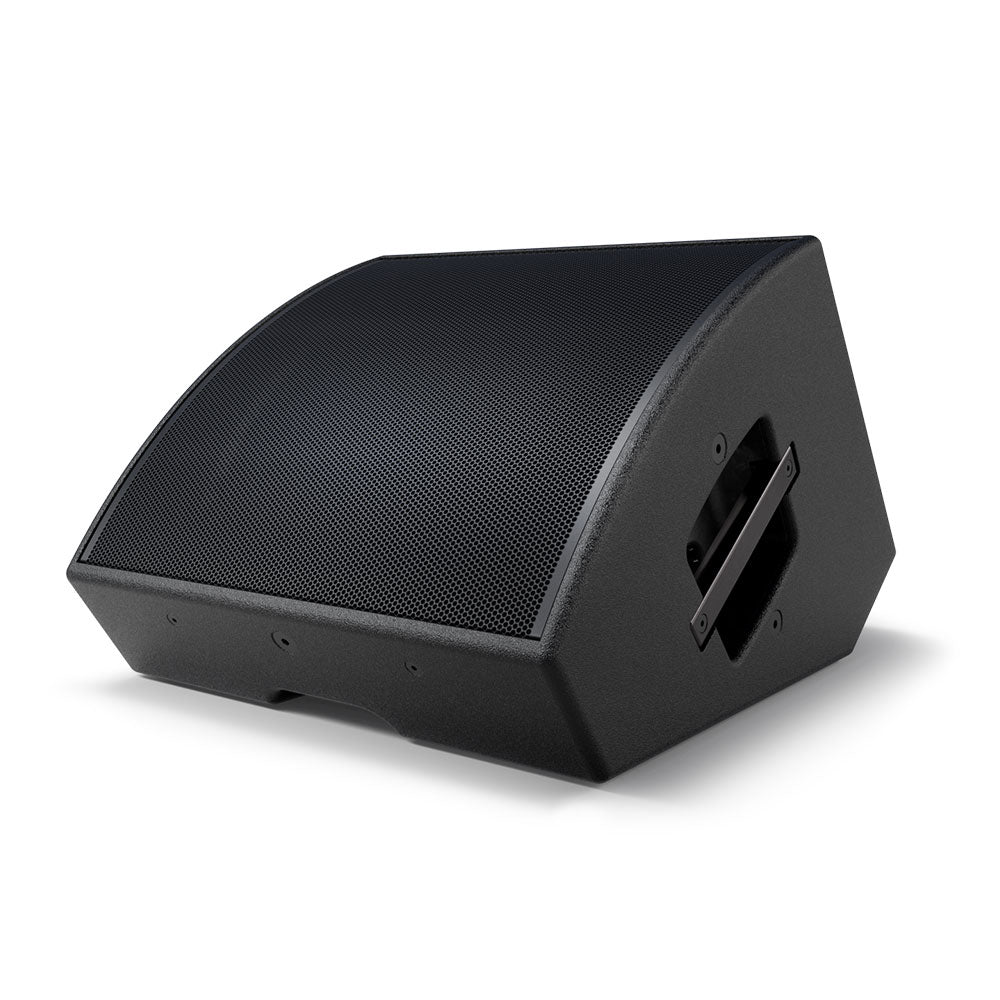

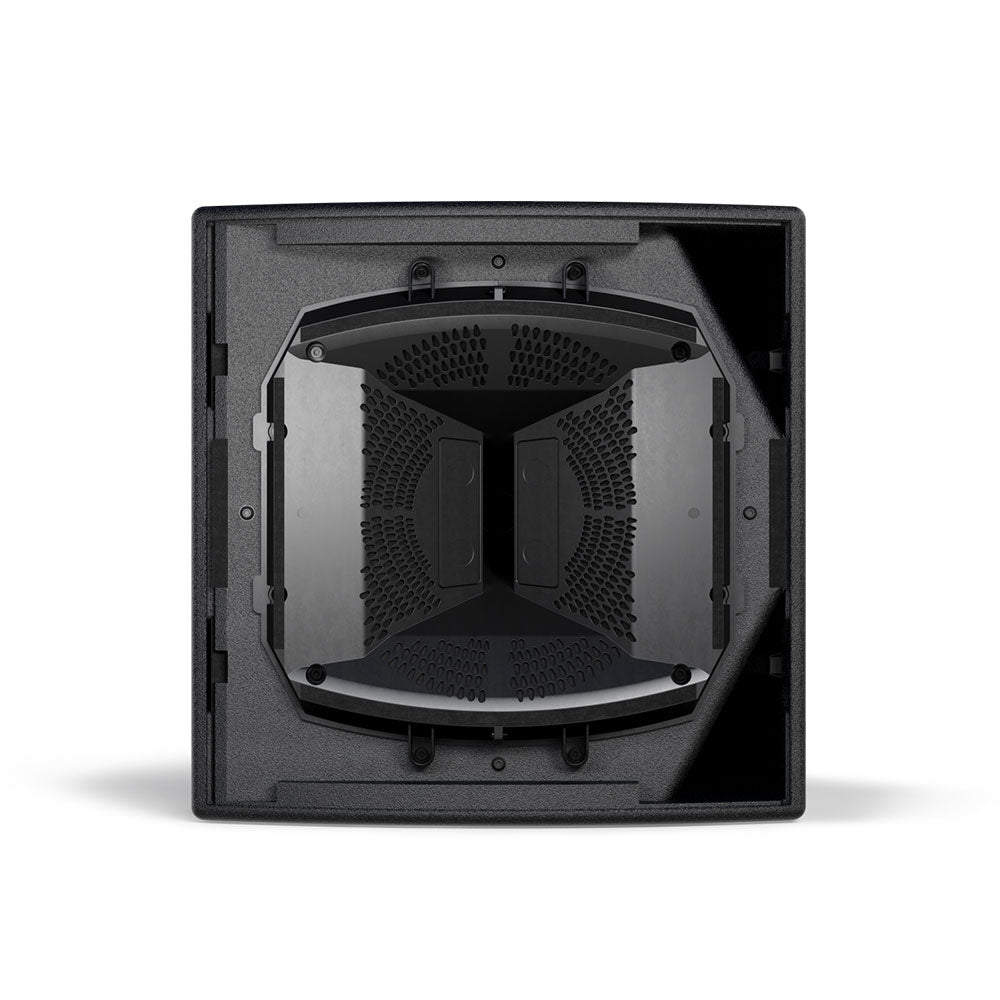

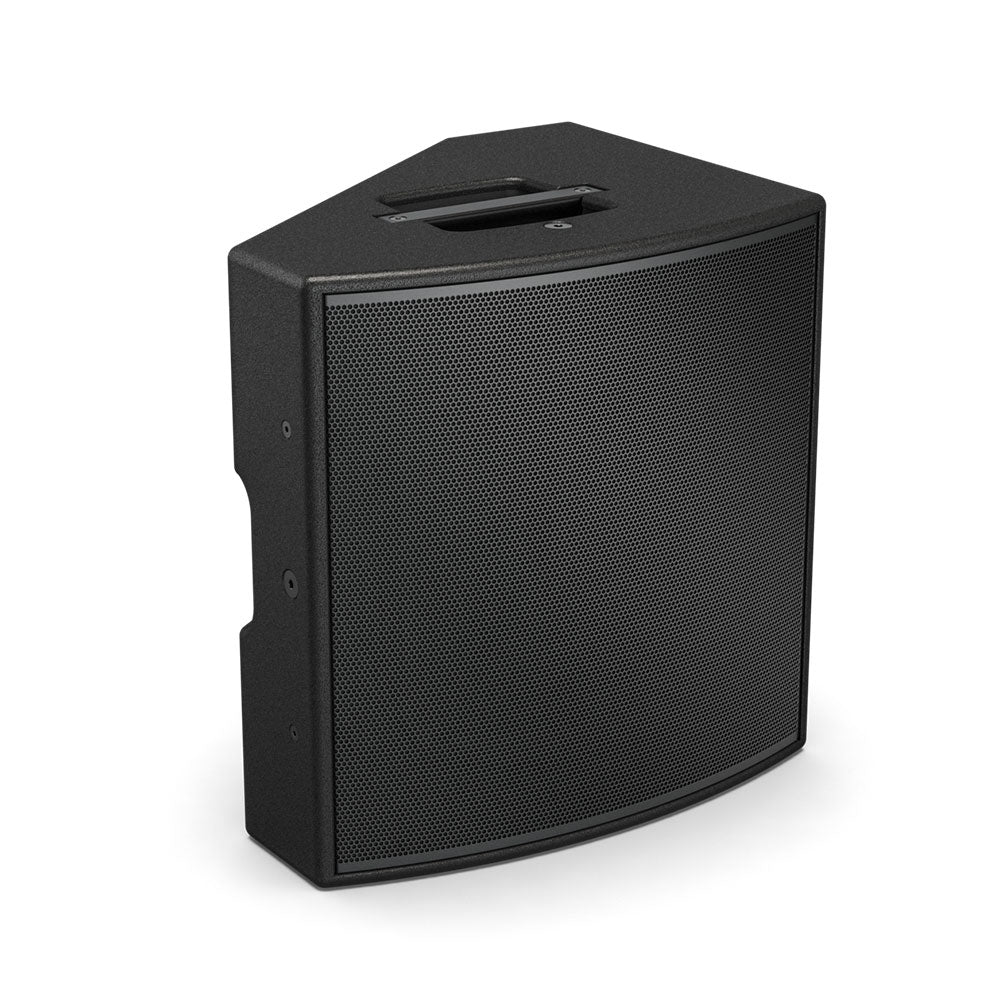

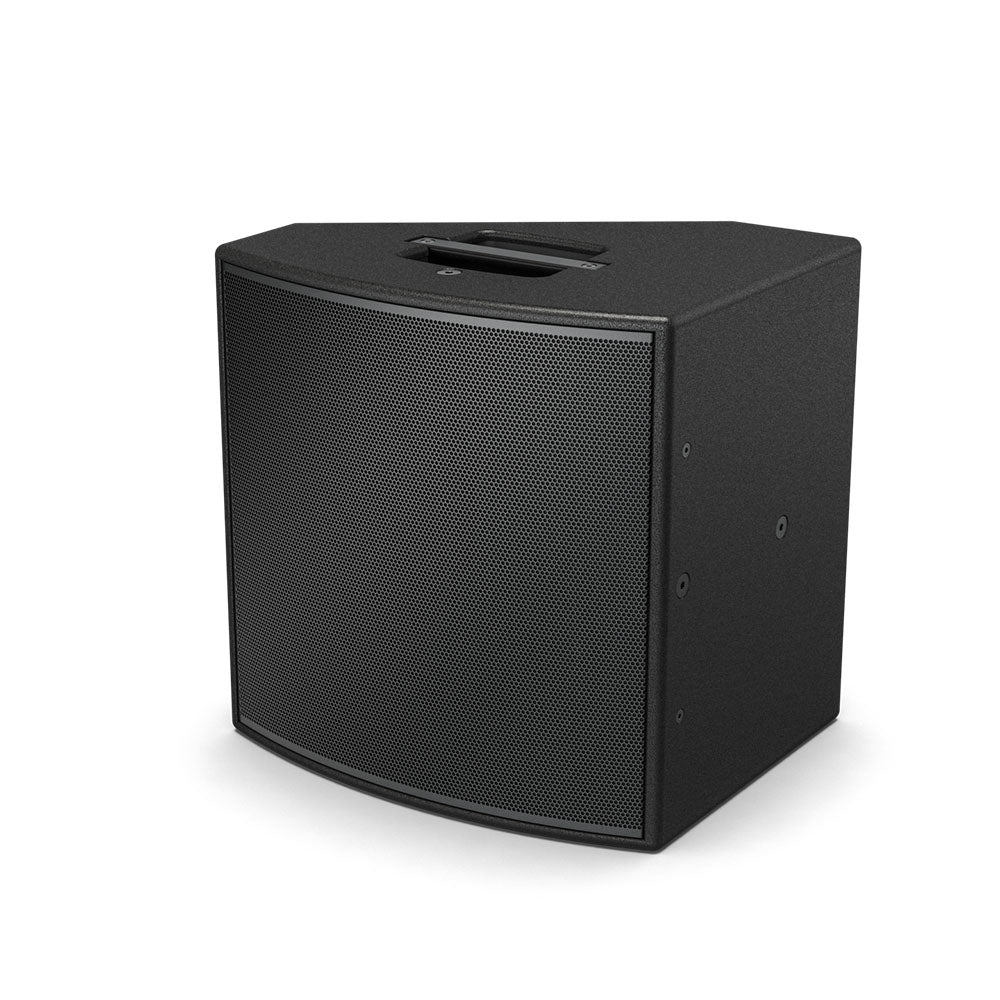

Bose AMM112 - Multipurpose Coaxial Loudspeaker

  • Dale #:

    BOSE-8431610110
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The AMM112 multipurpose loudspeaker features a passive, coaxial two-way design with a 3-inch compression driver, 12-inch low-frequency transducer, and high output: 131 dB peak. Its proprietary Beamwidth Matching Waveguide ensures signature Bose sound quality, delivering consistent frequency respo... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The AMM112 multipurpose loudspeaker features a passive, coaxial two-way design with a 3-inch compression driver, 12-inch low-frequency transducer, and high output: 131 dB peak. Its proprietary Beamwidth Matching Waveguide ensures signature Bose sound quality, delivering consistent frequency response, clarity, and projection across the coverage area — a remarkably powerful audio experience for both performers and audiences. The AMM112 is equally suited for a variety of medium-throw sound reinforcement, monitor, and fill applications in permanent or portable sound systems and offers outstanding vocal clarity and projection. The AMM112 features consistent voicing with Bose AM array modules and Bose AMU utility loudspeakers. So it’s easy to mix and match models from all three lines to create different types of systems.

Features:

  • Compact high-output design delivers 131 dB peak output via coaxial driver: 3-inch compression driver, 12-inch low frequency driver with shared neodymium magnet
    Multipurpose versatility for deployment as main, monitor, fill, or delay; extend bandwidth by pairing with the Bose ShowMatch SMS118 subwoofer (FoH applications) or the Bose AMS115 subwoofer (fill applications)
  • Consistent tonality and voicing with Bose AM array modules and Bose AMU utility loudspeakers — easily create entire systems and save substantial time during system configuration
  • Proprietary Beamwidth Matching Waveguide ensures signature Bose sound quality, aligning low and high beamwidth through crossover region to deliver excellent tonal consistency across the coverage area
  • Multi-position enclosure with 110° x 60° coverage angle — easily swap horizontal and vertical coverage by simply rotating cabinet, no disassembly or tools required
  • Lightweight 22 kg/49 lb cabinet with large, ergonomic handles and 35 mm pole stand adaptor for easy transportation and setup
  • Pair with Bose PowerMatch amps and ControlSpace DSP for best performance and loudspeaker protection
  • Deploy easily in permanent or portable applications with optional U-bracket and suspension bracket accessories or use the 7 integrated M10 inserts for custom suspension
  • Companion AMS115 multipurpose subwoofer also available — 15-inch transducer, low frequency down to 35 Hz, 130 dB peak output, 28 kg (63 lb) design with integrated M20 threaded pole mount and 12 M10 threaded inserts for suspension in permanent installations

More +

Product Specs

SINGLE-LOUDSPEAKER PERFORMANCE
Frequency Response (−3 dB) 70 – 18,000 Hz
Frequency Range (−10 dB) 60 – 20,000 Hz
Nominal Coverage Pattern 110° horizontal × 60° vertical
Tilt-back Angle 35°
Recommended High-pass Filter Use Bose-recommended presets for optimal performance
Crossover Internal passive or external bi-amp; use Bose-recommended presets for optimal performance
Power Handling, Long-term Continuous 300 W, passive
300 W (LF) + 45 W (HF), bi-amp
Power Handling, Peak 2800 W, passive
2800 W (LF) + 720 W (HF), bi-amp
Sensitivity (SPL/1 W @ 1 m) 96 dB
Calculated Maximum SPL @ 1 m 121 dB
Calculated Peak SPL @ 1 m 131 dB
TRANSDUCERS
Low Frequency 12-in (305 mm) woofer
High Frequency 3-in (76 mm) compression driver
Nominal Impedance 8 Ω, passive
8 Ω (LF) + 8 Ω (HF), bi-amp
PHYSICAL
Enclosure Material Baltic birch plywood
Finish 2-part spray polyurethane coating, black
Grille Perforated steel, powder-coated finish, black
Environmental 6 IP43-rated (front-of-house position only)

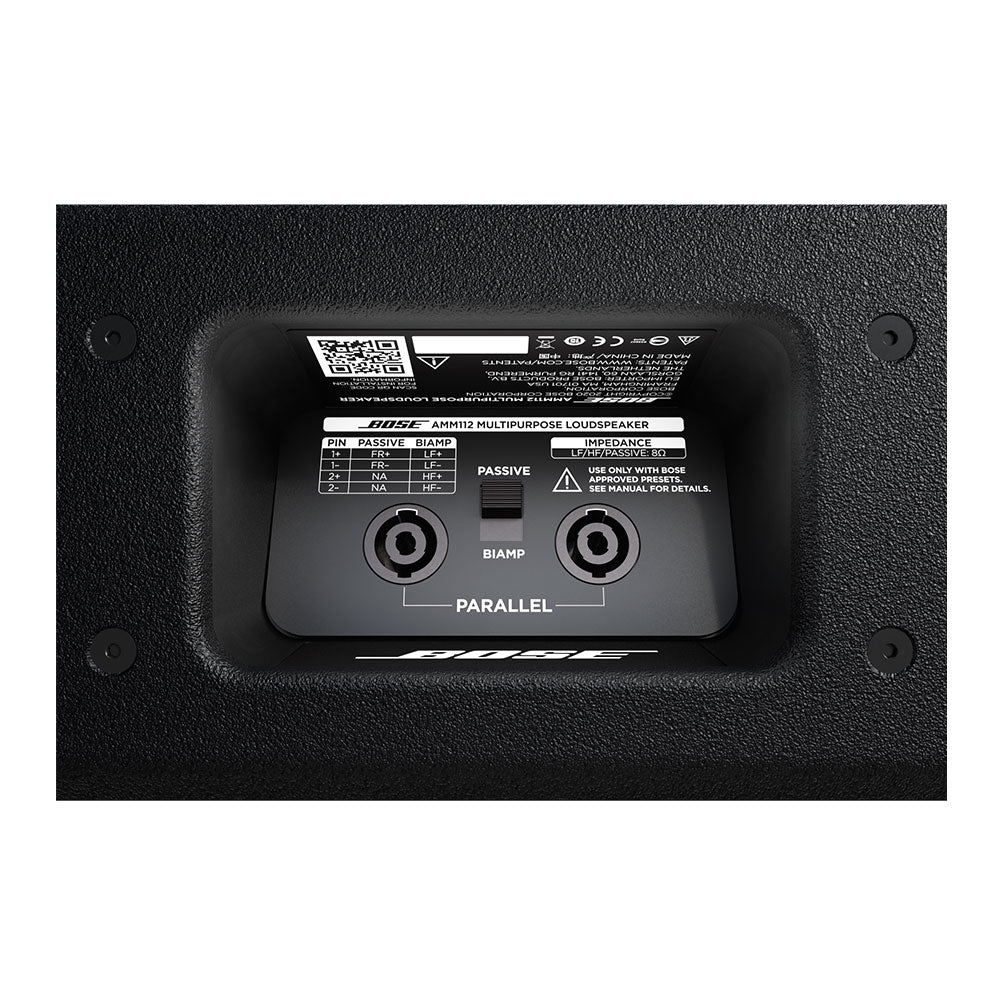

Connectors 2 × Neutrik® NL4 inputs with wired-parallel through
Suspension/Mounting 2 × 35 mm (1.4 in) pole cup (for pole-mounting)
7 × M10 threaded inserts (for accessory attachment or mounting)
Dimensions (Width × Height × Depth) 457 mm × 457 mm × 383 mm (18.0 in × 18.0 in × 15.0 in)
Net Weight 22.04 kg (48.60 lb)
Shipping Weight 26.22 kg (57.81 (lb)
Optional Accessories AMM112 U-Bracket Kit; AMM Suspension Bracket; ShowMatch SMS118 Speaker Pole Mount, M20 Thread
