Bose AMS115 - Multipurpose Passive Subwoofer
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

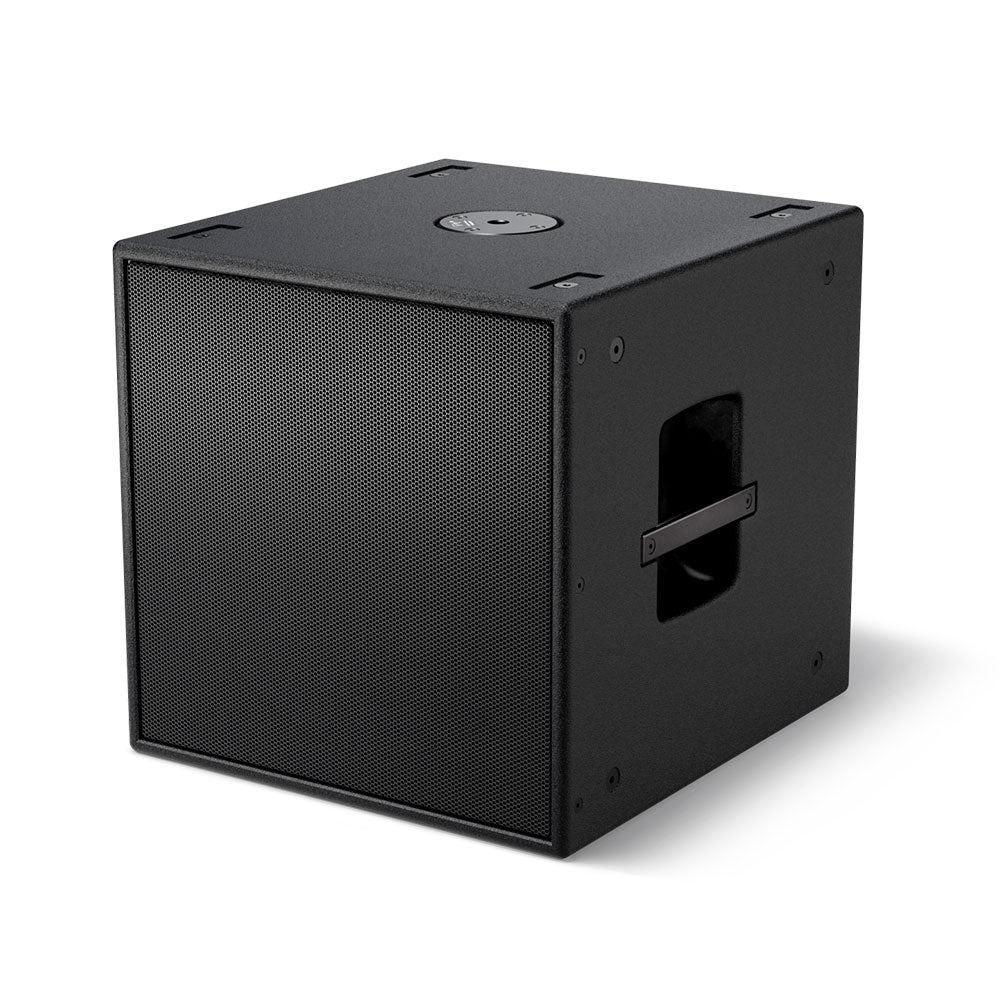

The AMS115 multipurpose subwoofer features a 15-inch neodymium transducer and offers low frequency down to 35 Hz. With a lightweight enclosure, ergonomic handles, M20 threaded pole mount, and 12 M10 suspension points, this passive subwoofer is ideal for a variety of applications in portable setups or permanent installations — especially when paired with Bose AMM multipurpose loudspeakers. For example, combine an AMM112 with the AMS115 subwoofer for fill applications. Or, for front-of-house applications, combine an AMM108 and AMS115 sub to give audiences an impactful, full-spectrum audio experience.
Features:
- Compact high-output design with a lightweight, 15-inch neodymium transducer, low frequency down to 35 Hz, and 130 dB peak output
- Direct-radiating bass reflex-tuned enclosure with large, ergonomic handles and caster mounting points
- Pair with Bose PowerMatch amps and ControlSpace DSP for best performance and loudspeaker protection
- Deploy easily in permanent or portable applications with 28 kg (63 lb) design featuring 12 M10 threaded inserts for suspension in permanent installations and integrated M20 threaded pole mount for use in temporary applications
| SINGLE-LOUDSPEAKER PERFORMANCE | |
| Frequency Response (_3 dB) | 40 Ð 100 Hz |
| Frequency Range (_10 dB) | 35 Ð 130 Hz |
| Nominal Coverage Pattern | Omnidirectional |
| Recommended Crossover | Use Bose-recommended presets for optimal performance |
| Power Handling, Long-term Continuous | 500 W |
| Power Handling, Peak | 2800 W |
| Sensitivity (SPL/1 W @ 1 m) | 90 dB (free-field) 96 dB (half-space) |
| Calculated Maximum SPL @ 1 m | 117 dB (free-field) 123 dB (half-space) |
| Calculated Peak SPL @ 1 m | 124 dB (free-field) 130 dB (half-space) |
| TRANSDUCERS | |
| Low Frequency | 15-in (381 mm) high-excursion woofer |
| Nominal Impedance | 8 ½ |
| PHYSICAL | |
| Enclosure Material | Baltic birch plywood |
| Finish | 2-part spray polyurethane coating, black |
| Grille | Perforated steel, powder-coated finish, black |
| Environmental | N/A |

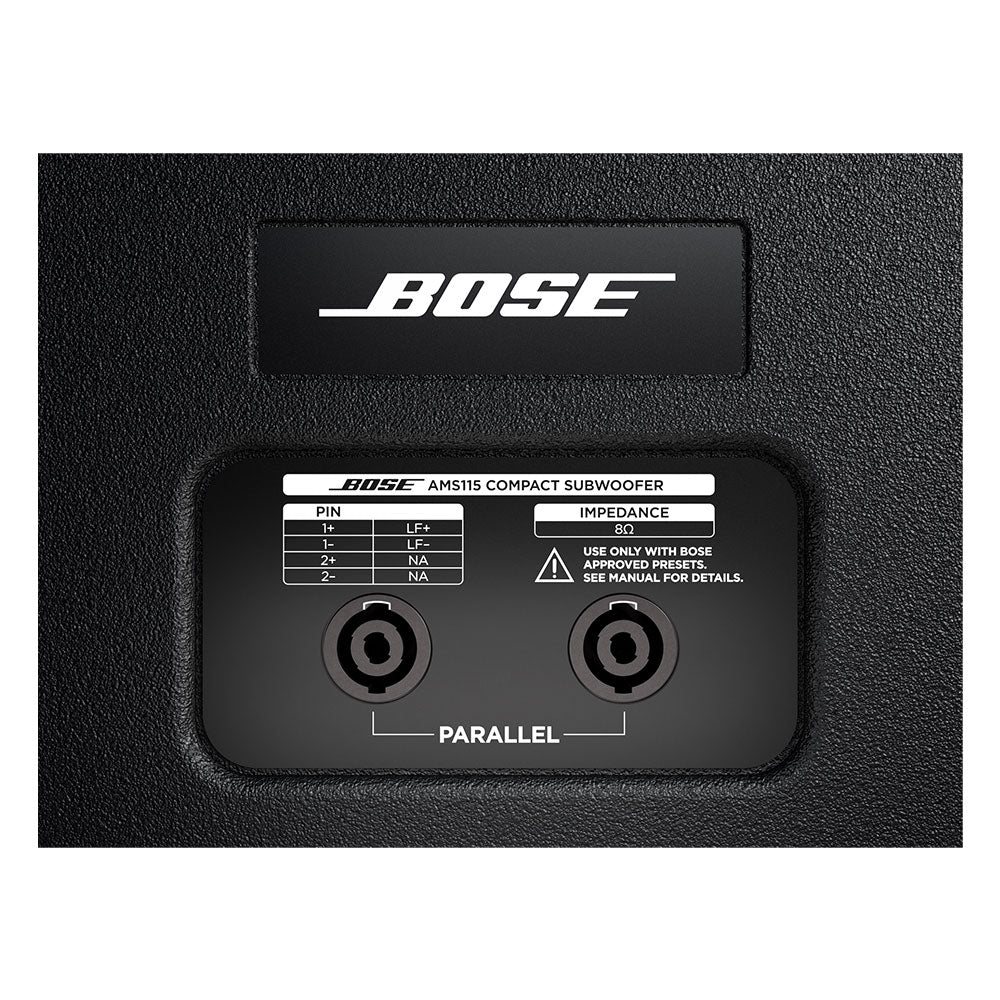

| Connectors | 2 _ Neutrik¨ NL4 inputs with wired-parallel through |
| Suspension/Mounting/Transport | 1 _ M20 threaded pole mount 12 _ M10 threaded inserts (for accessory attachment or mounting) 16 _ M8 caster attachment points |
| Dimensions (Width _ Height _ Depth) | 470 mm _ 470 mm _ 508 mm (18.5 in _ 18.5 in _ 20.0 in) |
| Net Weight | 28.39 kg (62.60 lb) |
| Shipping Weight | 33.27 kg (73.35 lb) |
The AMS115 multipurpose subwoofer features a 15-inch neodymium transducer and offers low frequency down to 35 Hz. With a lightweight enclosure, ergonomic handles, M20 threaded pole mount, and 12 M10 suspension points, this passive subwoofer is ideal for a variety of applications in portable setups or permanent installations — especially when paired with Bose AMM multipurpose loudspeakers. For example, combine an AMM112 with the AMS115 subwoofer for fill applications. Or, for front-of-house applications, combine an AMM108 and AMS115 sub to give audiences an impactful, full-spectrum audio experience.
Features:
- Compact high-output design with a lightweight, 15-inch neodymium transducer, low frequency down to 35 Hz, and 130 dB peak output
- Direct-radiating bass reflex-tuned enclosure with large, ergonomic handles and caster mounting points
- Pair with Bose PowerMatch amps and ControlSpace DSP for best performance and loudspeaker protection
- Deploy easily in permanent or portable applications with 28 kg (63 lb) design featuring 12 M10 threaded inserts for suspension in permanent installations and integrated M20 threaded pole mount for use in temporary applications
| SINGLE-LOUDSPEAKER PERFORMANCE | |
| Frequency Response (_3 dB) | 40 Ð 100 Hz |
| Frequency Range (_10 dB) | 35 Ð 130 Hz |
| Nominal Coverage Pattern | Omnidirectional |
| Recommended Crossover | Use Bose-recommended presets for optimal performance |
| Power Handling, Long-term Continuous | 500 W |
| Power Handling, Peak | 2800 W |
| Sensitivity (SPL/1 W @ 1 m) | 90 dB (free-field) 96 dB (half-space) |
| Calculated Maximum SPL @ 1 m | 117 dB (free-field) 123 dB (half-space) |
| Calculated Peak SPL @ 1 m | 124 dB (free-field) 130 dB (half-space) |
| TRANSDUCERS | |
| Low Frequency | 15-in (381 mm) high-excursion woofer |
| Nominal Impedance | 8 ½ |
| PHYSICAL | |
| Enclosure Material | Baltic birch plywood |
| Finish | 2-part spray polyurethane coating, black |
| Grille | Perforated steel, powder-coated finish, black |
| Environmental | N/A |
| Connectors | 2 _ Neutrik¨ NL4 inputs with wired-parallel through |
| Suspension/Mounting/Transport | 1 _ M20 threaded pole mount 12 _ M10 threaded inserts (for accessory attachment or mounting) 16 _ M8 caster attachment points |
| Dimensions (Width _ Height _ Depth) | 470 mm _ 470 mm _ 508 mm (18.5 in _ 18.5 in _ 20.0 in) |
| Net Weight | 28.39 kg (62.60 lb) |
| Shipping Weight | 33.27 kg (73.35 lb) |
