Bose ArenaMatch AMU108-120 - Compact High-Performance Install Loudspeaker (Black)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The newly expanded AMU multi-use loudspeaker series combines a powerful mix of driver configurations and coverage patterns with a variety of mounting options and orientations. Together with indoor/outdoor flexibility and two colors, AMU offers virtually endless installation options to solve your specific needs.
Featuring high-output sound, exceptional vocal clarity, and rich musical depth, the AMU Series shines in both large distributed and small- to mid-sized audio systems. The integrated 70/100V transformer includes a bypass switch for live sound reinforcement. Systems can be enhanced with the MB210-WR dual 10-inch weatherized subwoofer, and PowerShareX amplifiers include factory-optimized presets for peak performance and simplified installation.
AMU108-120 provides wide, even coverage with a rotatable 120° × 60° constant-directivity high-frequency horn, 90 Hz – 16 kHz frequency response, and 121 dB peak SPL, delivering excellent output in a compact enclosure.
Features:

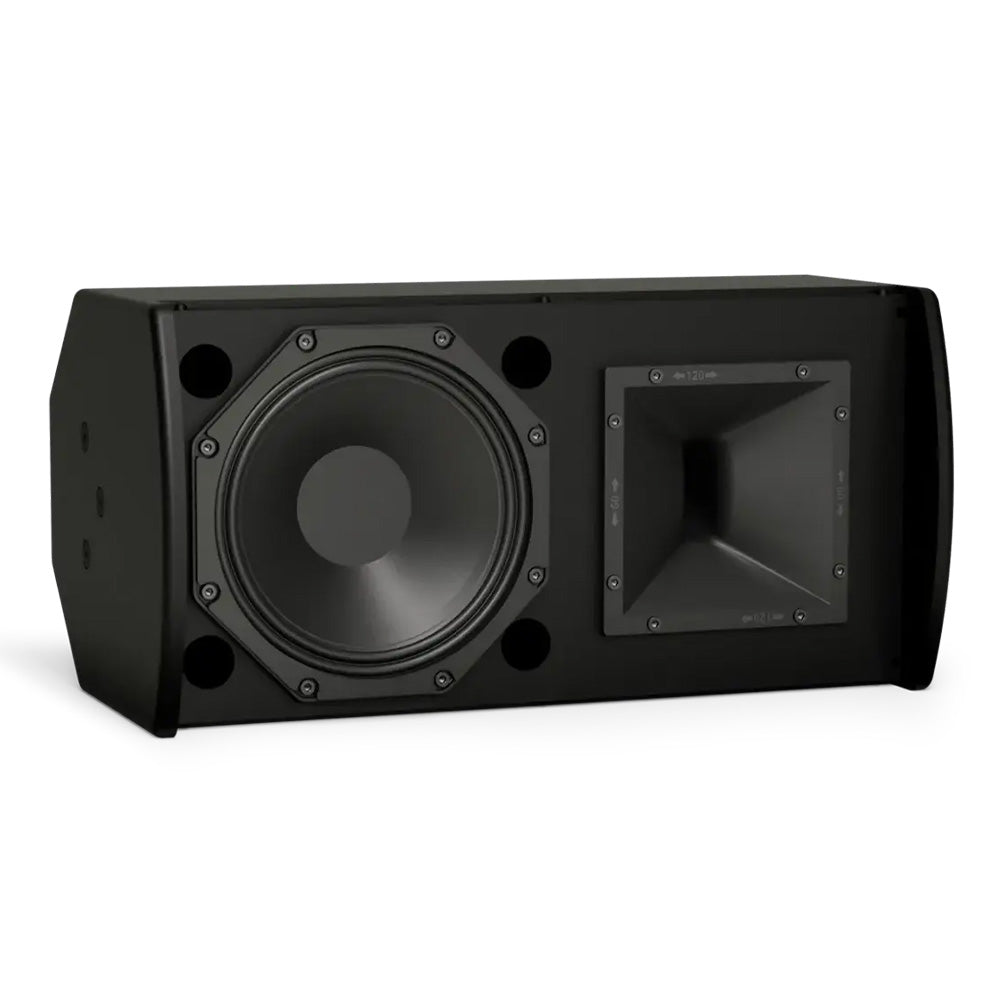

- Two-way transducer setup, featuring a high excursion woofer and high-frequency compression driver, enhanced by a passive crossover with optimized filters
- IP55 weather-rated with three-layer stainless steel grille, water-resistant woofer, industrial polyurethane exterior coating, and molded cover for input panel protection
- Weather-sealed internal 70/100V transformer with tap setting switch and 8-ohm bypass

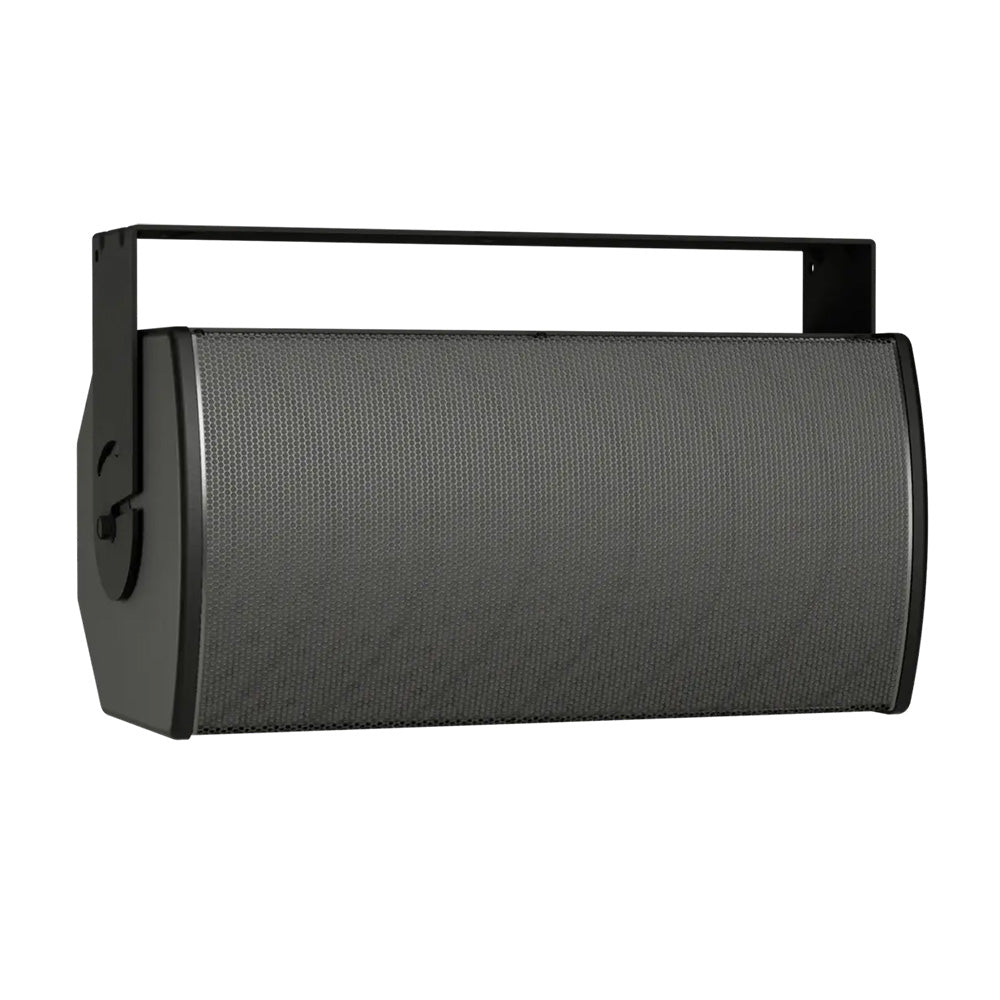

- Stainless-steel U-bracket with rear-enclosure M8 threaded inserts to accept third-party accessory mounting hardware
- Compatible accessories include: surface-mount pan-and-tilt bracket, single-point suspension bracket with multi-angle attachment points, and external pole adapter for portable use
- Compact cabinet construction with rust-resistant suspension points
- Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
- Easy integration with Bose Professional electronics and loudspeakers makes configuration and operation much simpler and quicker
- AMU is a stocked product with no custom order or surcharge
- Available in black or white finish to match the design of your project
Applications:
- Bars, high-energy restaurants
- Fitness centers
- Auditoriums
- Medium/small places of worship
- Gathering/common areas with live performances
- Indoor entertainment, sports and activity centers
- Multipurpose halls
- Outdoor dining and bar areas
- Hospitality/lodging
- Concourses
- Public walkways
- Outdoor pool and common areas
- Theme parks
- Stadia
| PHYSICAL | |
| Environmental | Indoor or outdoor. IP55-rated for direct exposure outdoor ratings |
| Colors | Black White |
| Enclosure Material | Exterior-grade plywood |

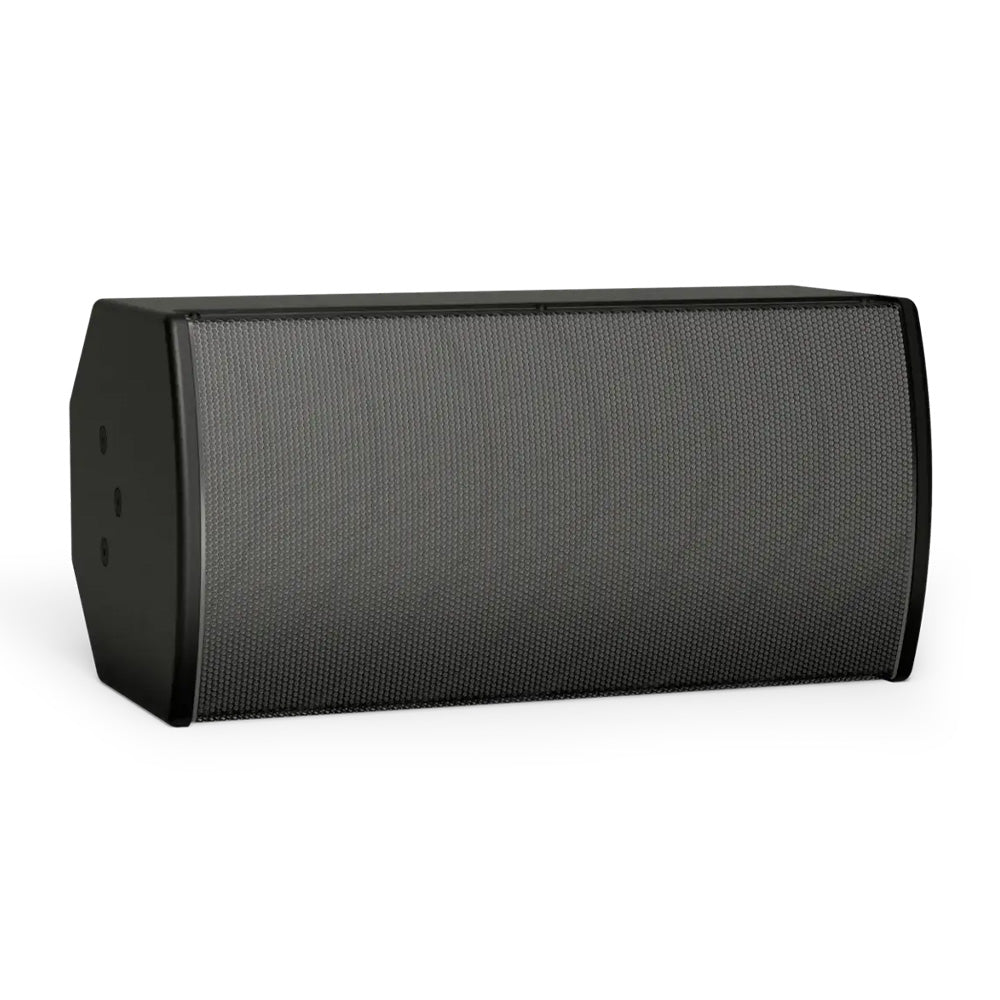

| Grille | 3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish |
| Ingress Protection | IP55 per EN60529; IP33C per EN 54-24 |

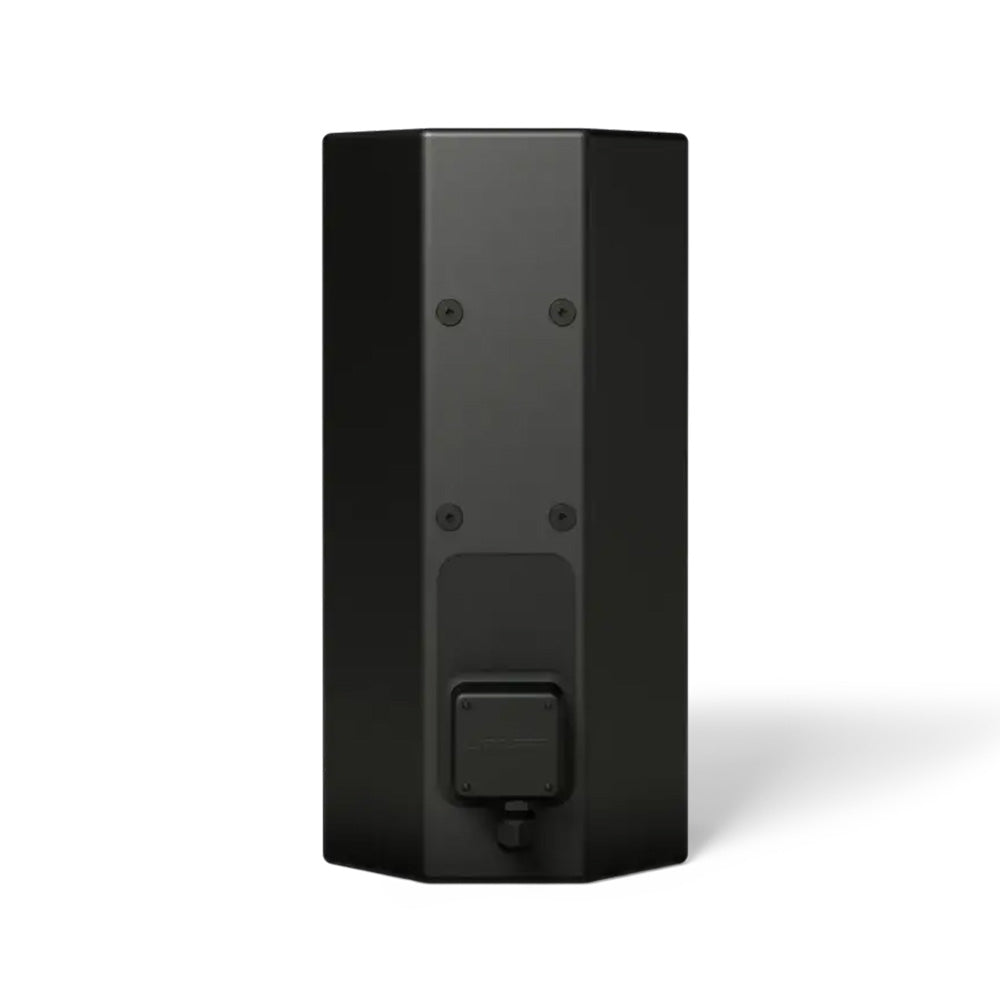

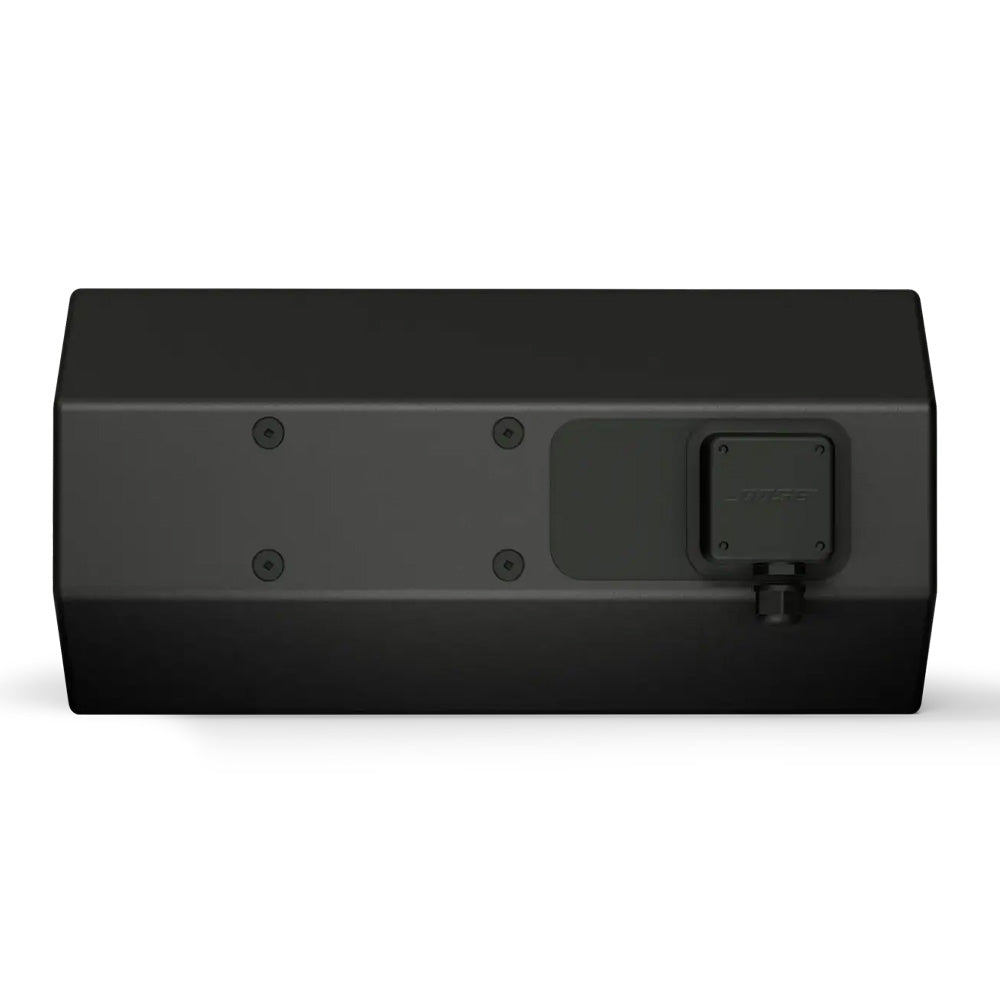

| Suspension/Mounting | 2 x M8 threaded inserts for U-bracket, 4 x M8 threaded inserts on rear (127 x 70 mm, 4-bolt pattern) |
| Net Weight | 23.3 lb (10.6 kg), loudspeaker / 27.7 lb (12.6 kg), loudspeaker with U-bracket |
| Product Dimensions (HxWxD) | 9.3 in x 18.5 in x 11.0 in (235 mm x 470 mm x 279 mm), loudspeaker with input cover |
| Shipping Weight | 31.2 lb (14.2 kg) |
| COMPLIANCE | |
| EN 54-24 Certified | Yes |
| Safety Agency Ratings | EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings |
| PERFORMANCE | |
| Frequency Range (-10 dB) | 80 Hz Ð 18,000 Hz |
| Frequency Response (±3 dB) | 90 Hz Ð 16,000 Hz |
| Coverage, Horizontal | 60¡ |
| Coverage, Vertical | 120¡ |
| Calculated Maximum SPL @ 1 m | 119 dB (free field), 121 dB (wall/ceiling) |
| Nominal Impedance | 8 ½ |
| Power Handling, long-term continuous | 200 W |
| Power Handling, Peak | 800 W |
| Sensitivity (SPL/1 W at 1 m) | 90 dB |
| Transformer Taps, 100V | 10, 20, 40, 80 W |
| Transformer Taps, 70V | 5 W, 10 W, 20 W, 40 W, 80 W |
| TRANSDUCERS | |
| Crossover | 1.4 kHz, passive |
| High-Frequency | 1 x Bose Professional EMB2S extended high-frequency compression driver |
| Low-Frequency | 1 x Bose Professional LF8 high-excursion 8 in (203 mm) woofer |
| Product codes | 893798-0100 AMU108-120 120x60, OUTDOOR LDSPK BLK 893798-0200 AMU108-120 120x60, OUTDOOR LDSPK WHT |
| Warranty Period | 5 years / 2 years |
| Included in Packaging | (1) AMU Loudspeaker (1) input cover (1) installation guide (1) T3 square drive (1) U-bracket (2) rubber washers (4) M4 screws (4) M8 screws |
