DALE SKU # BOSE-8937970200

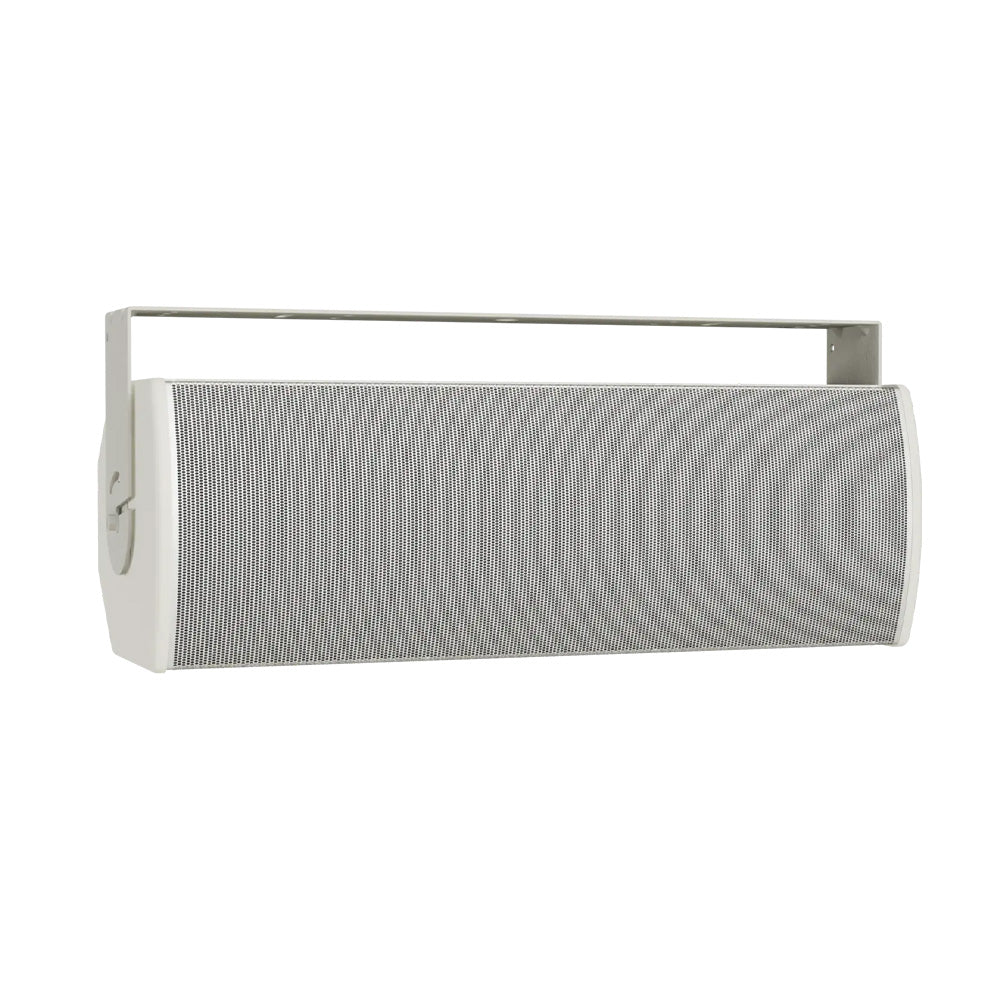

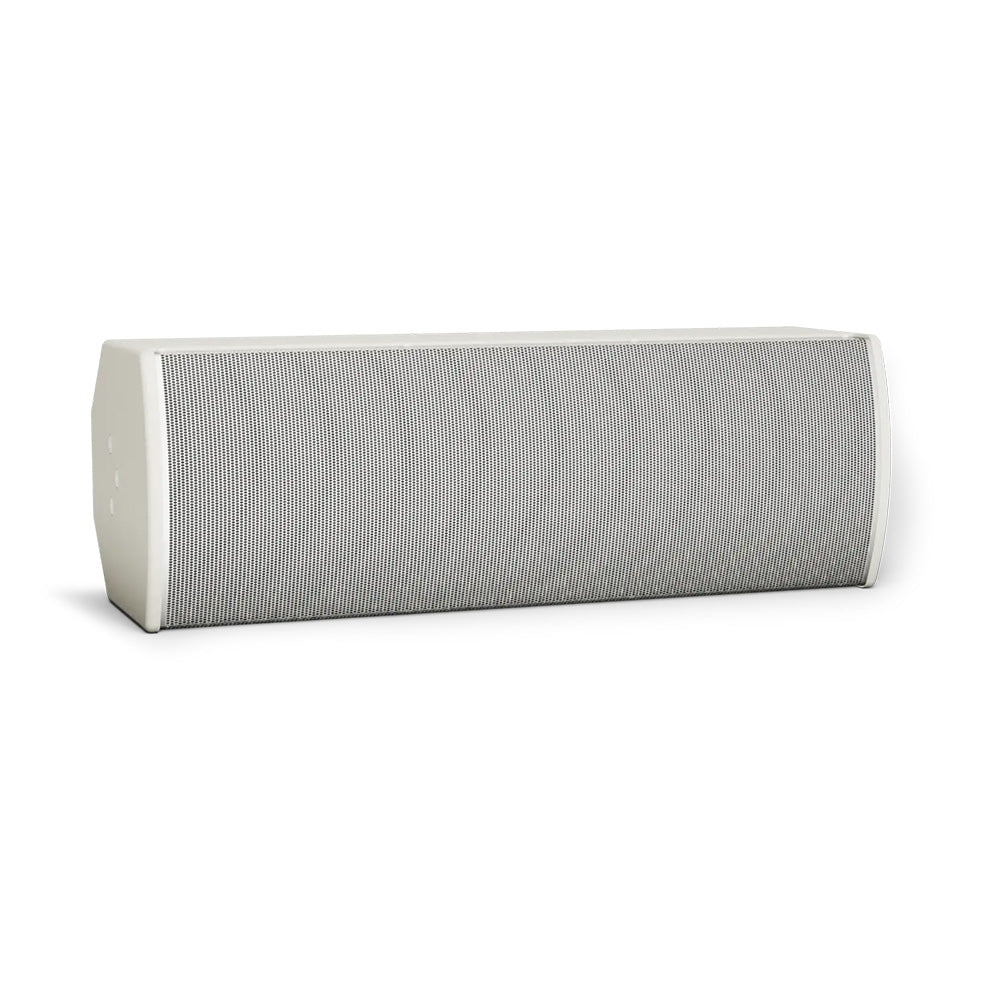

Bose ArenaMatch AMU208-120 - Compact High-Performance Install Loudspeaker (White)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The newly expanded AMU multi-use loudspeaker series combines a powerful mix of driver configurations and coverage patterns with a variety of mounting options and orientations. Together with indoor/outdoor flexibility and two colors, AMU offers virtually endless installation options to solve your specific needs.

    Featuring high-output sound, exceptional vocal clarity, and rich musical depth, the AMU Series shines in both large distributed and small- to mid-sized audio systems. The integrated 70/100V transformer includes a bypass switch for live sound reinforcement. Systems can be enhanced with the MB210-WR dual 10-inch weatherized subwoofer, and PowerShareX amplifiers include factory-optimized presets for peak performance and simplified installation.

    AMU208-120 provides wide, even coverage with a rotatable 120° × 60° constant-directivity high-frequency horn, 80 Hz – 16 kHz frequency response, and 127 dB peak SPL, for increased output and more low-frequency extension.

    Features:

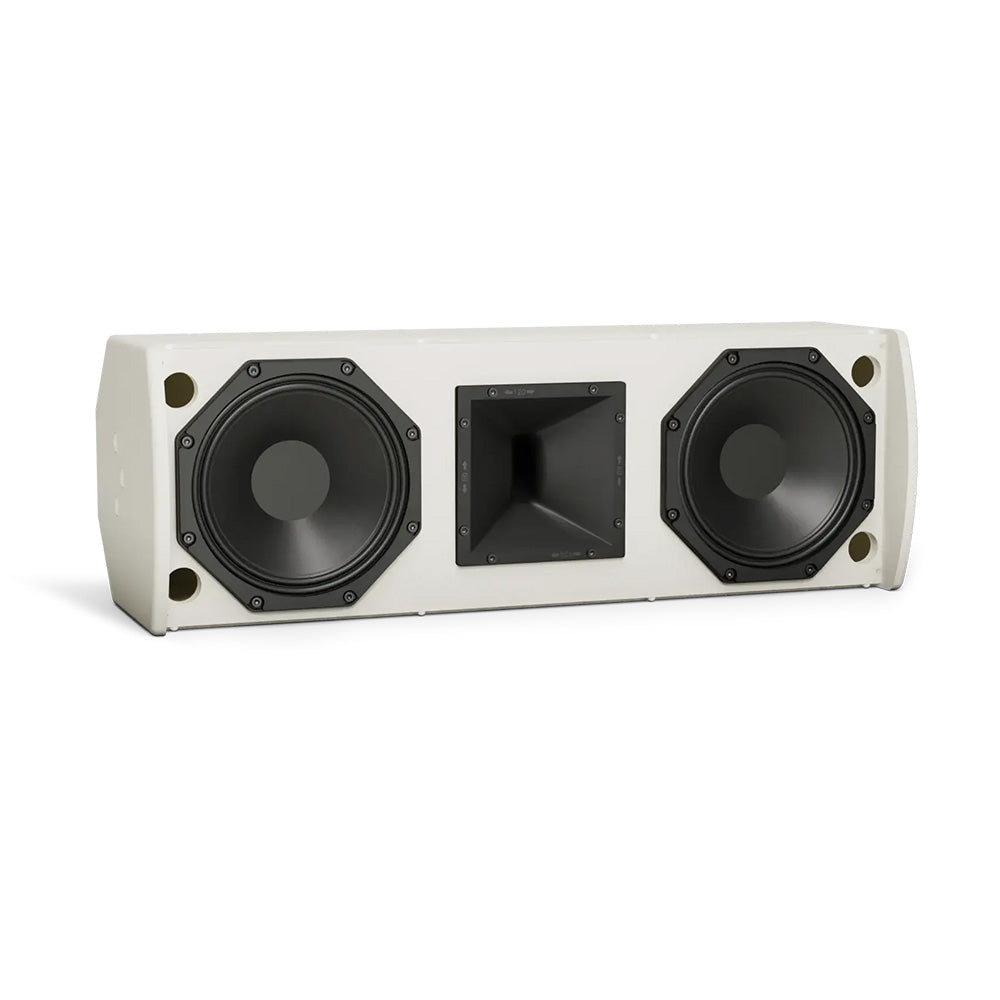

    • Two-way transducer setup, featuring a high excursion woofer and high-frequency compression driver, enhanced by a passive crossover with optimized filters
    • IP55 weather-rated with three-layer stainless steel grille, water-resistant woofer, industrial polyurethane exterior coating, and molded cover for input panel protection
    • Weather-sealed internal 70/100V transformer with tap setting switch and 8-ohm bypass

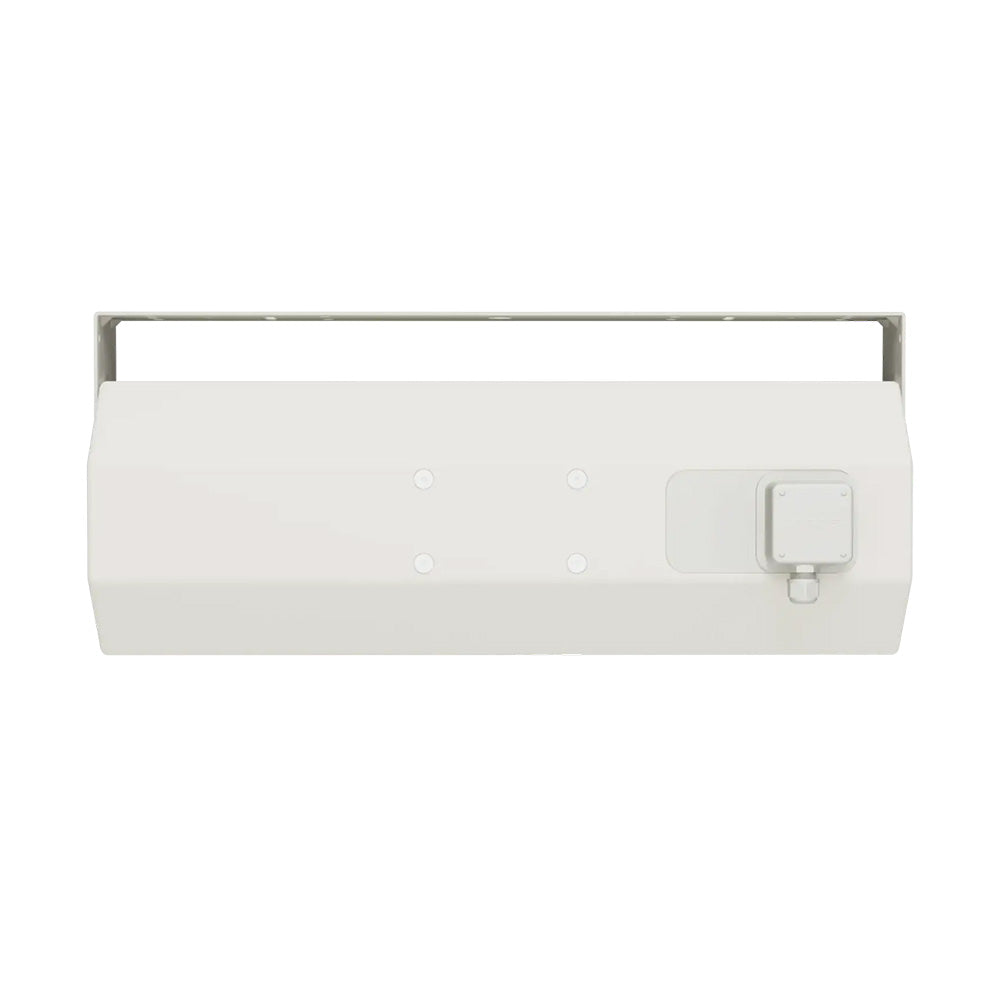

    • Stainless-steel U-bracket with rear-enclosure M8 threaded inserts to accept third-party accessory mounting hardware
    • Compatible accessories include: surface-mount pan-and-tilt bracket, single-point suspension bracket with multi-angle attachment points, and external pole adapter for portable use
    • Compact cabinet construction with rust-resistant suspension points
    • Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
    • Easy integration with Bose Professional electronics and loudspeakers makes configuration and operation much simpler and quicker
    • AMU is a stocked product with no custom order or surcharge requirements
    • Available in black or white finish to match the design of your project

    Applications:

    • Bars, high-energy restaurants
    • Fitness centers
    • Auditoriums
    • Medium/small places of worship
    • Gathering/common areas with live performances
    • Indoor entertainment, sports and activity centers
    • Multipurpose halls
    • Outdoor dining and bar areas
    • Hospitality/lodging
    • Concourses
    • Public walkways
    • Outdoor pool and common areas
    • Theme parks
    • Stadia
    PHYSICAL
    Environmental Indoor or outdoor. IP55-rated for direct exposure outdoor ratings
    Colors Black
    White
    Enclosure Material Exterior-grade plywood
    Grille 3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish
    Ingress Protection IP55 per EN60529; IP33C per EN 54-24
    Suspension/Mounting 2 _ M8 threaded inserts for U-bracket, 4 _ M8 threaded inserts on rear (127 _ 70 mm, 4-bolt pattern)
    Net Weight 37.5 lb (17.0 kg), loudspeaker / 43.0 lb (19.5 kg), loudspeaker with U-bracket
    Product Dimensions (H_W_D) 9.3 in _ 27.0 in _ 11.0 in (235 mm _ 686 mm _ 279 mm), loudspeaker with input cover
    Shipping Weight 51.0 lb (23.1 kg)
    COMPLIANCE
    EN 54-24 Certified Yes
    Safety Agency Ratings EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
    PERFORMANCE
    Frequency Range (-10 dB) 70 Hz Ð 18,000 Hz
    Coverage, Horizontal 60¡
    Coverage, Vertical 120¡
    Calculated Maximum SPL @ 1 m 119 dB (free field), 121 dB (wall/ceiling)
    Nominal Impedance 8 ½ (transformer bypass)
    Power Handling, long-term continuous 300 W
    Power Handling, Peak 1200 W
    Sensitivity (SPL/1 W at 1 m) 94 dB (free field), 96 dB (wall/ceiling)
    Transformer Taps, 100V 10, 20, 40, 80 W
    Transformer Taps, 70V 5 W, 10 W, 20 W, 40 W, 80 W
    TRANSDUCERS
    Crossover 200 Hz / 1.2 kHz, passive, separate bandpass filters per transducer
    High-Frequency 1 _ Bose Professional EMB2S extended high-frequency compression driver, 2 in (51 mm) voice coil
    Low-Frequency 2 _ Bose Professional LF8 high-excursion 8 in (203 mm) woofer, 2 in (51 mm) voice coil
    Product codes 893797-0100
    AMU208-120 120_60, OUTDOOR LDSPK BLK
    893797-0200
    AMU208-120 120_60, OUTDOOR LDSPK WHT
    Warranty Period 5 years / 2 years
    Included in Packaging (1) ArenaMatch Utility AMU208-120 loudspeaker
    (1) input cover
    (1) installation guide
    (1) T3 square drive
    (1) U-bracket
    (2) rubber washers
    (4) M4 screws
    (4) M8 screws

    The newly expanded AMU multi-use loudspeaker series combines a powerful mix of driver configurations and coverage patterns with a variety of mounting options and orientations. Together with indoor/outdoor flexibility and two colors, AMU offers virtually endless installation options to solve your specific needs.

    Featuring high-output sound, exceptional vocal clarity, and rich musical depth, the AMU Series shines in both large distributed and small- to mid-sized audio systems. The integrated 70/100V transformer includes a bypass switch for live sound reinforcement. Systems can be enhanced with the MB210-WR dual 10-inch weatherized subwoofer, and PowerShareX amplifiers include factory-optimized presets for peak performance and simplified installation.

    AMU208-120 provides wide, even coverage with a rotatable 120° × 60° constant-directivity high-frequency horn, 80 Hz – 16 kHz frequency response, and 127 dB peak SPL, for increased output and more low-frequency extension.

    Features:

    • Two-way transducer setup, featuring a high excursion woofer and high-frequency compression driver, enhanced by a passive crossover with optimized filters
    • IP55 weather-rated with three-layer stainless steel grille, water-resistant woofer, industrial polyurethane exterior coating, and molded cover for input panel protection
    • Weather-sealed internal 70/100V transformer with tap setting switch and 8-ohm bypass
    • Stainless-steel U-bracket with rear-enclosure M8 threaded inserts to accept third-party accessory mounting hardware
    • Compatible accessories include: surface-mount pan-and-tilt bracket, single-point suspension bracket with multi-angle attachment points, and external pole adapter for portable use
    • Compact cabinet construction with rust-resistant suspension points
    • Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
    • Easy integration with Bose Professional electronics and loudspeakers makes configuration and operation much simpler and quicker
    • AMU is a stocked product with no custom order or surcharge requirements
    • Available in black or white finish to match the design of your project

    Applications:

    • Bars, high-energy restaurants
    • Fitness centers
    • Auditoriums
    • Medium/small places of worship
    • Gathering/common areas with live performances
    • Indoor entertainment, sports and activity centers
    • Multipurpose halls
    • Outdoor dining and bar areas
    • Hospitality/lodging
    • Concourses
    • Public walkways
    • Outdoor pool and common areas
    • Theme parks
    • Stadia
    PHYSICAL
    Environmental Indoor or outdoor. IP55-rated for direct exposure outdoor ratings
    Colors Black
    White
    Enclosure Material Exterior-grade plywood
    Grille 3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish
    Ingress Protection IP55 per EN60529; IP33C per EN 54-24
    Suspension/Mounting 2 _ M8 threaded inserts for U-bracket, 4 _ M8 threaded inserts on rear (127 _ 70 mm, 4-bolt pattern)
    Net Weight 37.5 lb (17.0 kg), loudspeaker / 43.0 lb (19.5 kg), loudspeaker with U-bracket
    Product Dimensions (H_W_D) 9.3 in _ 27.0 in _ 11.0 in (235 mm _ 686 mm _ 279 mm), loudspeaker with input cover
    Shipping Weight 51.0 lb (23.1 kg)
    COMPLIANCE
    EN 54-24 Certified Yes
    Safety Agency Ratings EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
    PERFORMANCE
    Frequency Range (-10 dB) 70 Hz Ð 18,000 Hz
    Coverage, Horizontal 60¡
    Coverage, Vertical 120¡
    Calculated Maximum SPL @ 1 m 119 dB (free field), 121 dB (wall/ceiling)
    Nominal Impedance 8 ½ (transformer bypass)
    Power Handling, long-term continuous 300 W
    Power Handling, Peak 1200 W
    Sensitivity (SPL/1 W at 1 m) 94 dB (free field), 96 dB (wall/ceiling)
    Transformer Taps, 100V 10, 20, 40, 80 W
    Transformer Taps, 70V 5 W, 10 W, 20 W, 40 W, 80 W
    TRANSDUCERS
    Crossover 200 Hz / 1.2 kHz, passive, separate bandpass filters per transducer
    High-Frequency 1 _ Bose Professional EMB2S extended high-frequency compression driver, 2 in (51 mm) voice coil
    Low-Frequency 2 _ Bose Professional LF8 high-excursion 8 in (203 mm) woofer, 2 in (51 mm) voice coil
    Product codes 893797-0100
    AMU208-120 120_60, OUTDOOR LDSPK BLK
    893797-0200
    AMU208-120 120_60, OUTDOOR LDSPK WHT
    Warranty Period 5 years / 2 years
    Included in Packaging (1) ArenaMatch Utility AMU208-120 loudspeaker
    (1) input cover
    (1) installation guide
    (1) T3 square drive
    (1) U-bracket
    (2) rubber washers
    (4) M4 screws
    (4) M8 screws
