Description
Built for zone-fill coverage or high-SPL foreground music, Bose ArenaMatch Utility loudspeakers offer similar tonal balance to ArenaMatch array modules but in compact designs. They have the same EMB2S compression driver as ArenaMatch arrays, ensuring consistent sound, and the same IP55 weather rating. Deploy them for zone-fill coverage in sports stadiums, arenas, outdoor entertainment centers, and more. Or use them to provide intelligible, high-level sound in any outdoor area - from niche venues such as breweries and fairgrounds to larger settings like resorts and outdoor shopping centers.

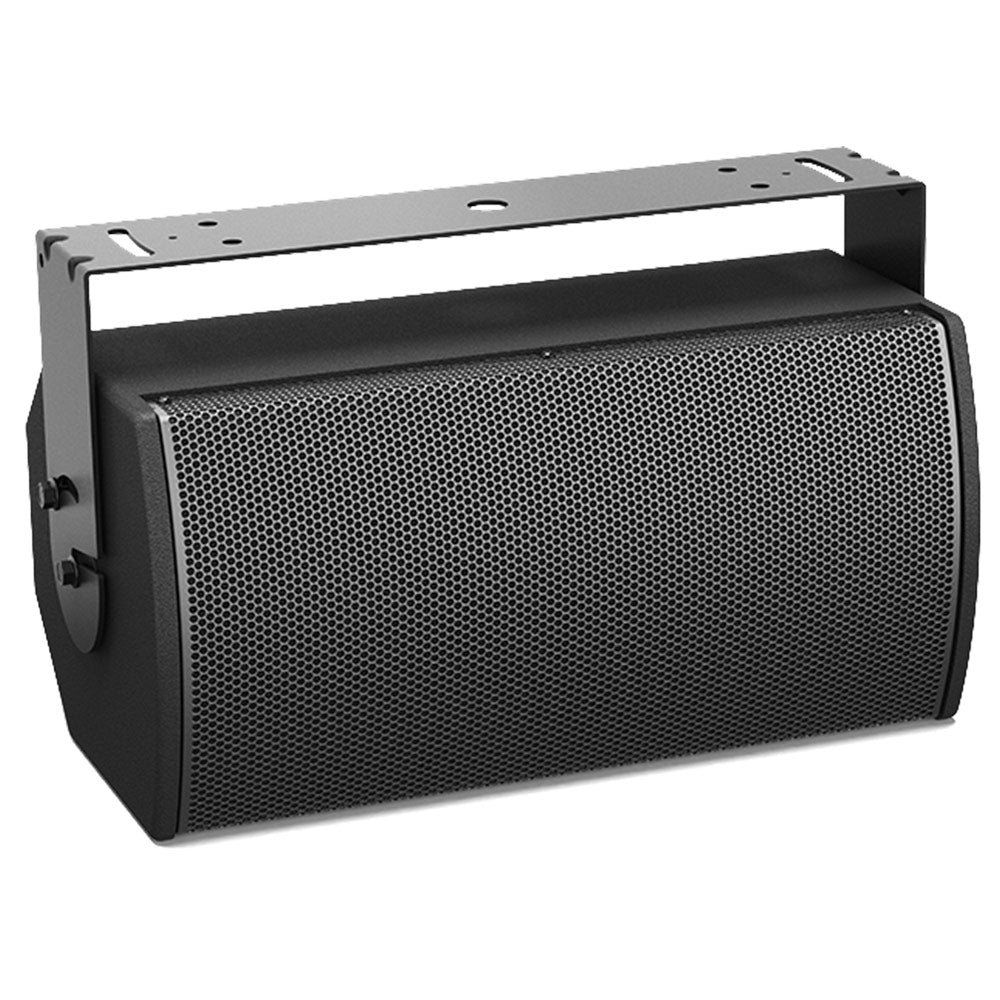

The AMU108 is a small-format ArenaMatch Utility model for outdoor applications that require excellent audio from compact loudspeaker. It provides wide, even coverage with a 90deg. x 60deg. constant-directivity high-frequency horn, 80 Hz - 16 kHz frequency response, 121 dB peak SPL, and supports the lowest vocal ranges with a Bose LF8 8-inch woofer.
Features:
- Deploy as zone-fill to support ArenaMatch arrays systems, delivering powerful, intelligible sound and ensuring consistent tonal balance with EMB2S compression drivers in every speaker
- Deploy to provide high-level foreground music in any outdoor venue
- Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded cover to protect inputs
- Adapt to a variety of configurations - all models ship standard with 70/100V transformer inputs and passive crossover with optimized filters for each transducer for more consistent frequency and polar response
- Streamline the design process by combining with complementary Bose Professional products, such as PowerMatch amplifiers and ControlSpace DSPs
- Mount easily with included stainless-steel U-bracket; rear enclosure panel also includes M8 threaded inserts to accept third-party accessory mounting brackets
- Provide wide, even coverage with 90deg. x 60deg. constant-directivity high-frequency horn, which can be rotated for horizontal or vertical installation
- Perform in the most demanding applications with 80 Hz - 16 kHz frequency response and 121 dB maximum peak SPL
- Support lowest vocal range with 1x Bose LF8 8-inch woofer featuring a 2-inch long-excursion voice coil, which extends response to 80 Hz
Applications:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
Frequency Response ( - 3 dB) | 90 Hz to 16 kHz |
Frequency Range ( - 10 dB) | 80 Hz to 18 kHz |
Nominal Coverage Pattern (H x V) | 90deg. x 60deg. (rotatable high-frequency horn) |
Recommended High-pass Filter | 80 Hz with minimum 12-dB / octave filter |
Crossover | Passive (1.4 kHz crossover frequeuncy) |
70/100V transformer tap settings | 70V: 5, 10, 20, 40, 80 W; 100V: 10, 20, 40, 80 W |
Power Handling, long-term continuous | Bose Extended Lifecycle Test: 200 W AES Transducer Test: 250 W |
Power Handling, peak | Bose Extended Lifecycle Test: 800 W AES Transducer Test: 1000 W |
Sensitivity (SPL / 1W @ 1 m) | Free field: 91 dB Wall/Ceiling: 93 dB |
Calculated Maximum SPL @ 1 m | Free field: 114 dB Wall/Ceiling: 116 dB |
Calculated Maximum SPL @ 1 m, peak | Free field: 120 dB Wall/Ceiling: 122 dB |
Transducers | |
Low Frequency | 1 x Bose LF8 high-excursion 8-inch woofer (2-inch voice coil) |
High Frequency | 1 x Bose EMB2S extended high-frequency compression driver (2-inch voice coil) |
Nominal Impedance | 8 ohm |
Physical | |
Enclosure | Material Exterior-grade plywood |
Finish | Two-part spray polyurea coating, black or white |
Grille | 3-layer: perforated stainless steel, acoustic foam, stainless steel mesh, powder-coat finish |
Environmental | IEC 60529 IP55 for outdoor, direct-exposure installations |
Connectors | 1x barrier strip, (accepts 10 to 18 wire gauge) |
Suspension/Mounting | 2x M8 threaded inserts for U-bracket; 4x M8 threaded inserts on rear (127 x 70 mm, 4-bolt pattern) |
Dimensions (H x W x D) | 235 x 470 x 279 mm (9.3 x 18.5 x 11.0 in) with input cover |
Net Weight | 10.6 kg (23.3 lb) / 12.6 kg (27.7 lb) with u-bracket |
Shipping Weight | 14.2 kg (31.2 lb) |
Accessories | Optional pan-and-tilt bracket |
Built for zone-fill coverage or high-SPL foreground music, Bose ArenaMatch Utility loudspeakers offer similar tonal balance to ArenaMatch array modules but in compact designs. They have the same EMB2S compression driver as ArenaMatch arrays, ensuring consistent sound, and the same IP55 weather rating. Deploy them for zone-fill coverage in sports stadiums, arenas, outdoor entertainment centers, and more. Or use them to provide intelligible, high-level sound in any outdoor area - from niche venues such as breweries and fairgrounds to larger settings like resorts and outdoor shopping centers.
The AMU108 is a small-format ArenaMatch Utility model for outdoor applications that require excellent audio from compact loudspeaker. It provides wide, even coverage with a 90deg. x 60deg. constant-directivity high-frequency horn, 80 Hz - 16 kHz frequency response, 121 dB peak SPL, and supports the lowest vocal ranges with a Bose LF8 8-inch woofer.
Features:
- Deploy as zone-fill to support ArenaMatch arrays systems, delivering powerful, intelligible sound and ensuring consistent tonal balance with EMB2S compression drivers in every speaker
- Deploy to provide high-level foreground music in any outdoor venue
- Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded cover to protect inputs
- Adapt to a variety of configurations - all models ship standard with 70/100V transformer inputs and passive crossover with optimized filters for each transducer for more consistent frequency and polar response
- Streamline the design process by combining with complementary Bose Professional products, such as PowerMatch amplifiers and ControlSpace DSPs
- Mount easily with included stainless-steel U-bracket; rear enclosure panel also includes M8 threaded inserts to accept third-party accessory mounting brackets
- Provide wide, even coverage with 90deg. x 60deg. constant-directivity high-frequency horn, which can be rotated for horizontal or vertical installation
- Perform in the most demanding applications with 80 Hz - 16 kHz frequency response and 121 dB maximum peak SPL
- Support lowest vocal range with 1x Bose LF8 8-inch woofer featuring a 2-inch long-excursion voice coil, which extends response to 80 Hz
Applications:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
Frequency Response ( - 3 dB) | 90 Hz to 16 kHz |
Frequency Range ( - 10 dB) | 80 Hz to 18 kHz |
Nominal Coverage Pattern (H x V) | 90deg. x 60deg. (rotatable high-frequency horn) |
Recommended High-pass Filter | 80 Hz with minimum 12-dB / octave filter |
Crossover | Passive (1.4 kHz crossover frequeuncy) |
70/100V transformer tap settings | 70V: 5, 10, 20, 40, 80 W; 100V: 10, 20, 40, 80 W |
Power Handling, long-term continuous | Bose Extended Lifecycle Test: 200 W AES Transducer Test: 250 W |
Power Handling, peak | Bose Extended Lifecycle Test: 800 W AES Transducer Test: 1000 W |
Sensitivity (SPL / 1W @ 1 m) | Free field: 91 dB Wall/Ceiling: 93 dB |
Calculated Maximum SPL @ 1 m | Free field: 114 dB Wall/Ceiling: 116 dB |
Calculated Maximum SPL @ 1 m, peak | Free field: 120 dB Wall/Ceiling: 122 dB |
Transducers | |
Low Frequency | 1 x Bose LF8 high-excursion 8-inch woofer (2-inch voice coil) |
High Frequency | 1 x Bose EMB2S extended high-frequency compression driver (2-inch voice coil) |
Nominal Impedance | 8 ohm |
Physical | |
Enclosure | Material Exterior-grade plywood |
Finish | Two-part spray polyurea coating, black or white |
Grille | 3-layer: perforated stainless steel, acoustic foam, stainless steel mesh, powder-coat finish |
Environmental | IEC 60529 IP55 for outdoor, direct-exposure installations |
Connectors | 1x barrier strip, (accepts 10 to 18 wire gauge) |
Suspension/Mounting | 2x M8 threaded inserts for U-bracket; 4x M8 threaded inserts on rear (127 x 70 mm, 4-bolt pattern) |
Dimensions (H x W x D) | 235 x 470 x 279 mm (9.3 x 18.5 x 11.0 in) with input cover |
Net Weight | 10.6 kg (23.3 lb) / 12.6 kg (27.7 lb) with u-bracket |
Shipping Weight | 14.2 kg (31.2 lb) |
Accessories | Optional pan-and-tilt bracket |
