Bose ControlCenter CC-64 Wall Mount Controller (White)


  • Dale #:

    BOSE-41760
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The Bose ControlSpace CC-64 control center is an elegant, programmable, networked controller that provides users a simple and logical interface to their sound systems when using ControlSpace ESP processors and/or network version PowerMatch® amplifiers. Because the controller is completely program... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Bose ControlSpace CC-64 control center is an elegant, programmable, networked controller that provides users a simple and logical interface to their sound systems when using ControlSpace ESP processors and/or network version PowerMatch® amplifiers. Because the controller is completely programmable, you can customize the sound system, making only certain controls available, and simplifying user interaction with the system.

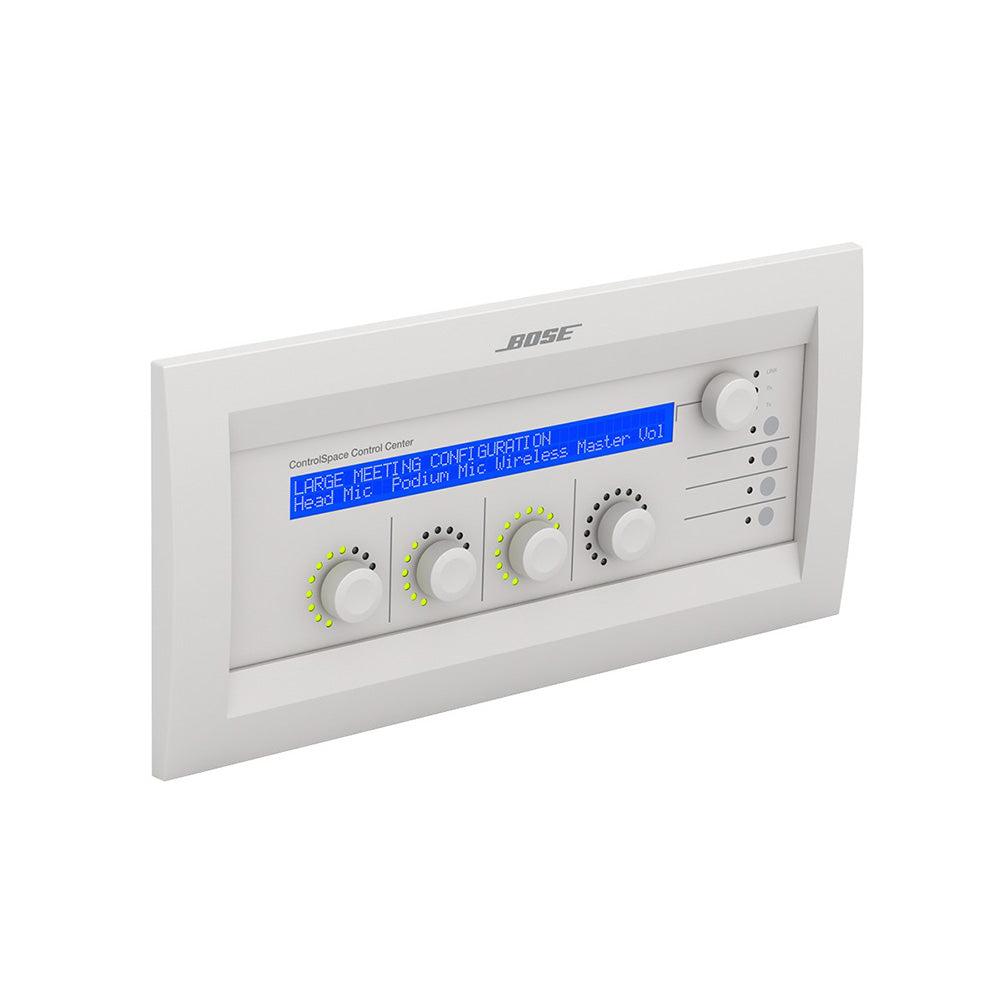

The CC-64 provides four rotary encoders with circular LED rings for a user-friendly method of managing gain settings or scene selections. A fifth encoder (upper right) provides control over programmed "scenes" or presets. Four bank switch buttons redefine the four Gain/Selector control knobs, providing quick access for up to 16 system gain controls or selectors. A large, two-line-by-40-character backlit LCD provides users the names of the system elements they are controlling.

Features:

  • Elegant styling with easy-to-read dynamic labeling for simplified end user operation
  • 2-line by 40-character backlit LCD screen
  • Four gain/selector control knobs (rotary/push) with LED rings
  • Four bank switch buttons to change Gain/Selector control knob mapping for 16 unique controls
  • One master scene/preset recall knob (rotary scroll/push to select)
  • Simplified drag-and-drop setup using ControlSpace® Designer™ software
  • Customizable on-screen wording provides easier system operation
  • Supports programming of easy-to-select scenes – allowing multiple room usage scenarios to be recalled from the CC-64 by end users
  • Programmable software lock-out
  • Fits into a standard 5-gang electrical wall box

More +

Product Specs

Connectors Network: RJ-45 (10 Base - T Ethernet) Power: Euroblock 2-pin (included)
Maximum Cable Length 328' (100 m)
Maximum Number of Units Per System 16 per ControlSpace® network
Power Supply Requirement 15 to 24 VDC, 300 mA, using local power input or over modified Cat-5 cable
