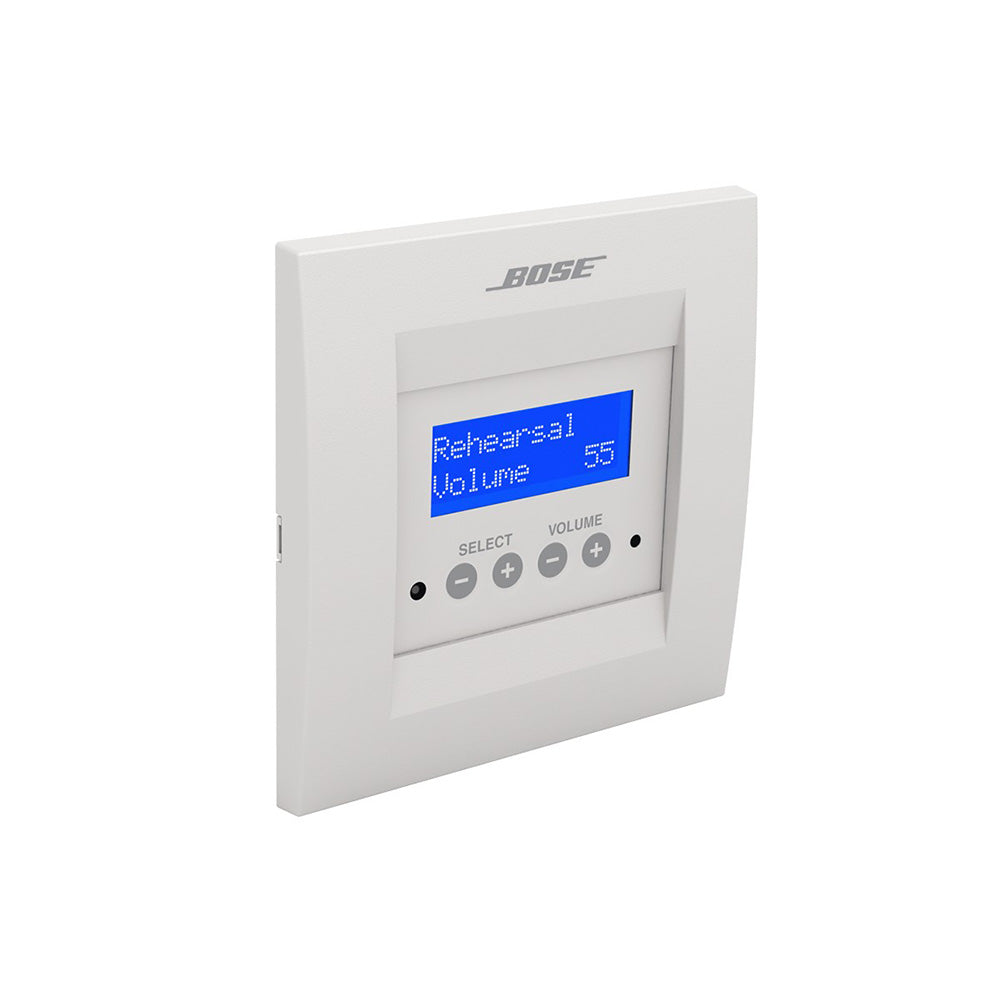

Bose ControlSpace CC-16 Wall Mount Zone Controller (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Bose® ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems. Custom programming allows the CC-16 to control a variety of system elements, from switching remote audio sources to selecting "scenes" or system configurations. The CC-16 features a bitmap LCD and four buttons for displaying and controlling the system settings.
Features:
- Elegant styling with intuitive controls for end user operation
- 122 x 32 pixel backlit blue LCD
- Sealed VOLUME +/- and SELECT +/- pushbuttons
- Simplified drag-and-drop setup using ControlSpace® Designer™
- DIP switch addressing on back of unit
- Programmable control of system elements (switching of audio sources, system configurations)
- Supports programming of easy-to-select scenes—allowing multiple room usage scenarios to be recalled from the CC-16 by end users
- Customizable on-screen wording provides easier system operation
- Programmable software lock out
- Fits into a standard 2-gang electrical wall box
| Connectors | Fixed 6-position terminal connector for power (Vin+, GND) and RS-485 (A, B) |
| Maximum Cable Length | 2000' (609 m), twisted pair, daisy-chain wired configuration |
| Maximum Number of Units Per System | 15 per ControlSpace ESP processor |
| Power Supply Requirement | 8 - 18 VDC, 100 mA |
The Bose® ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems. Custom programming allows the CC-16 to control a variety of system elements, from switching remote audio sources to selecting "scenes" or system configurations. The CC-16 features a bitmap LCD and four buttons for displaying and controlling the system settings.
Features:
- Elegant styling with intuitive controls for end user operation
- 122 x 32 pixel backlit blue LCD
- Sealed VOLUME +/- and SELECT +/- pushbuttons
- Simplified drag-and-drop setup using ControlSpace® Designer™
- DIP switch addressing on back of unit
- Programmable control of system elements (switching of audio sources, system configurations)
- Supports programming of easy-to-select scenes—allowing multiple room usage scenarios to be recalled from the CC-16 by end users
- Customizable on-screen wording provides easier system operation
- Programmable software lock out
- Fits into a standard 2-gang electrical wall box
| Connectors | Fixed 6-position terminal connector for power (Vin+, GND) and RS-485 (A, B) |
| Maximum Cable Length | 2000' (609 m), twisted pair, daisy-chain wired configuration |
| Maximum Number of Units Per System | 15 per ControlSpace ESP processor |
| Power Supply Requirement | 8 - 18 VDC, 100 mA |
