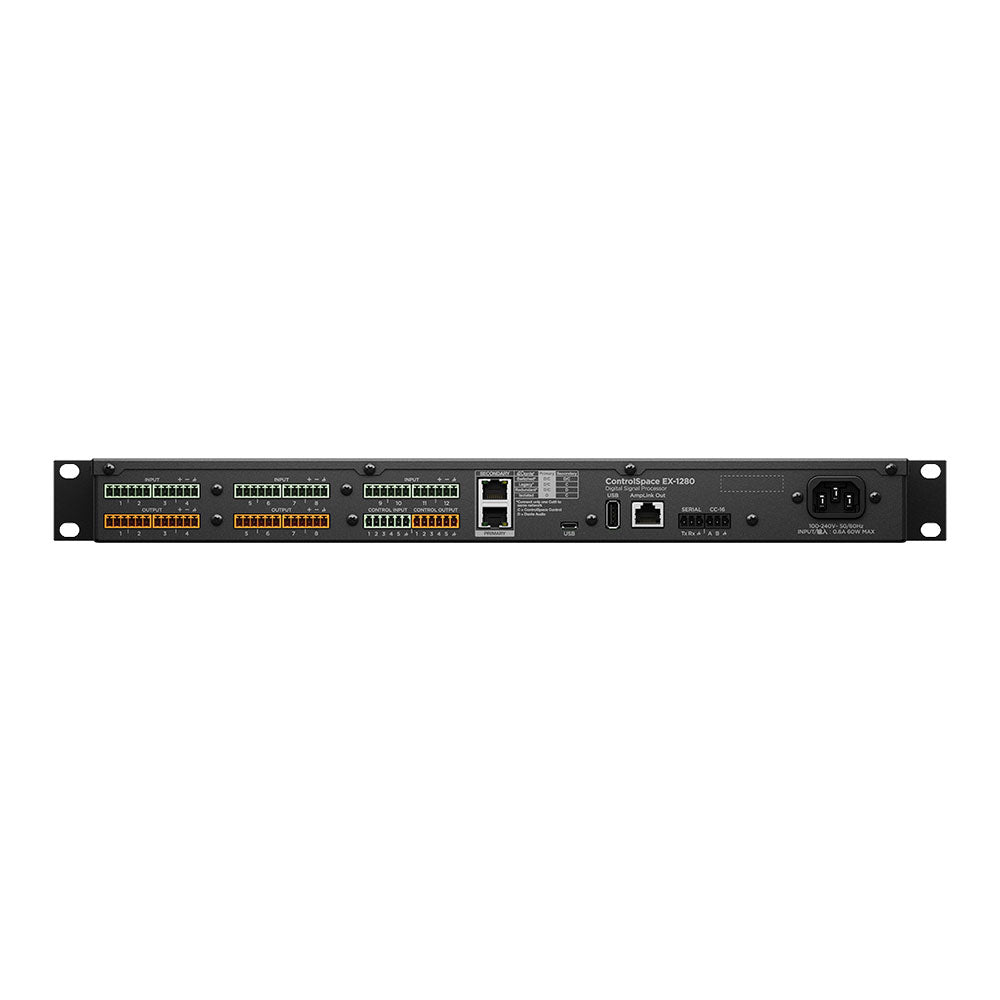

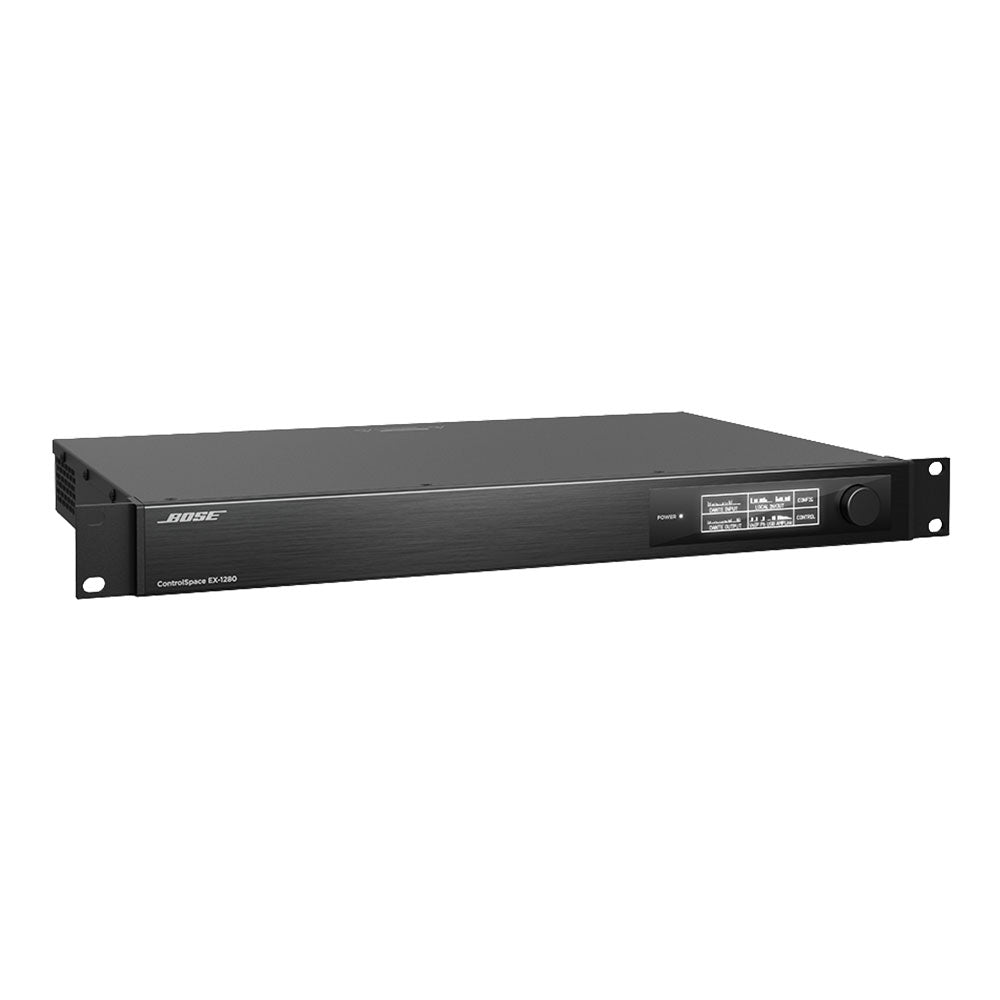

Bose ControlSpace EX-1280 Networked Audio Processor
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Bose ControlSpace EX-1280 Networked Audio Processor
Sale price$2,437.00
Regular price$4,044.00
Description
With an open-architecture, single-rack-unit design, the ControlSpace EX-1280 is a robust digital signal processor equipped for general-purpose audio processing applications. Twelve mic/line analog inputs, eight analog outputs, a Bose AmpLink output, and 64 x 64 Dante® connectivity allow for flexible configuration and high-quality sound system control. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.
Features:
- Open-architecture, 1RU design built for general-purpose and PA applications
- USB connection facilitates easy integration with PC audio sources
- Dante audio networking supports 64 x 64 audio channels for connection to other Dante-enabled products, including native Dante-integrated microphones, amplifiers, mixers, and end points
- Bose AmpLink port provides 8 channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose amplifiers

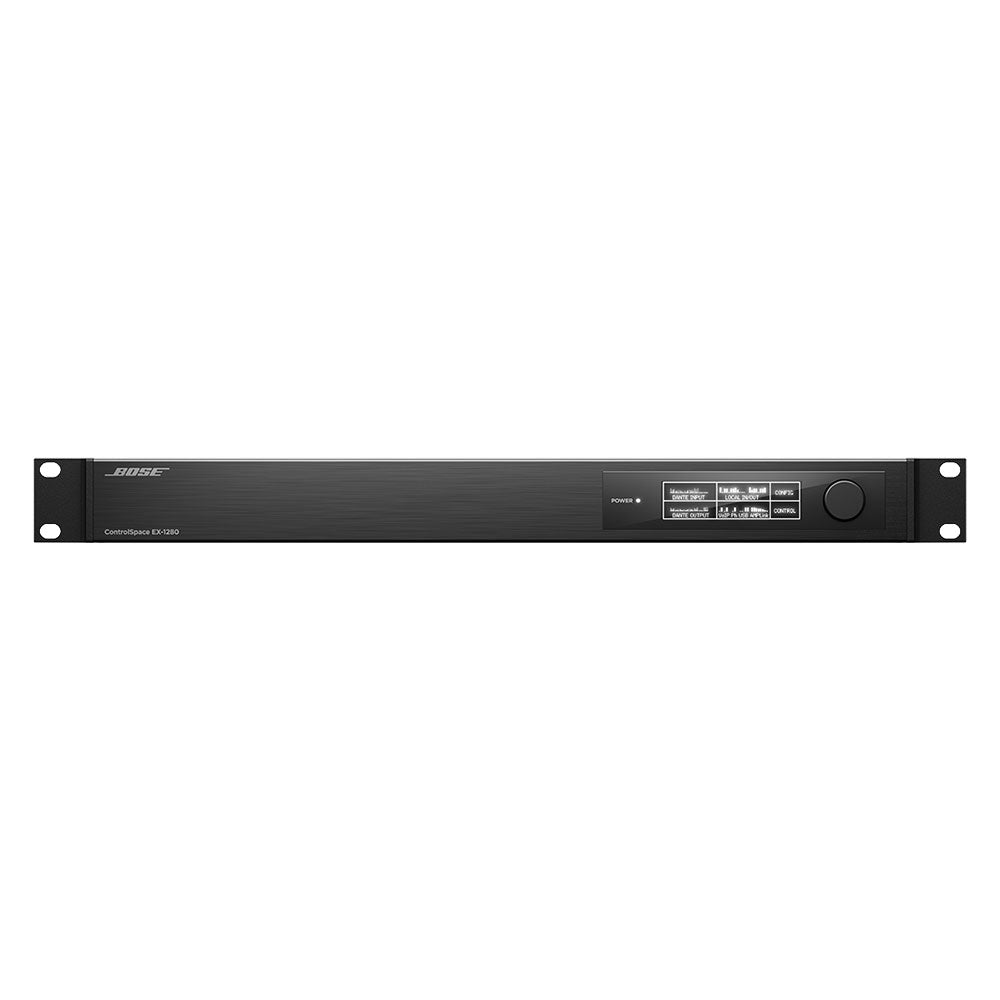

- Front-panel interface features a large OLED display and rotary encoder for setting network parameters and monitoring channel activity
- GPIO (5 in/5 out) and Serial for interfacing with external devices and control systems
- High-quality analog circuitry offers both mic and line-level I/O, operates with ultra-low noise and 118 dB dynamic range.
- Bose ControlSpace Designer software enables a large set of signal processing modules, such as automatic mic mixing, multiband graphic and parametric EQs, Bose loudspeaker libraries, signal generators, routers, mixers, AGCs, duckers, gates, compressors, source selectors, delays and logic
- A variety of control options — compatible with the programmable Bose CC-64 and CC-16 controllers, ControlCenter digital zone controllers, and ControlSpace Remote clients
- Supports industry-standard control systems using a comprehensive serial protocol through onboard RS-232 and Ethernet ports, with available drivers for AMX and Crestron-based systems
| INTEGRATED DSP | |
| Signal Processor/CPU | 32-bit fixed/floating-point DSP 456 MHz/ARM Cortex-A8 600 MHz |
| Maximum Calculation | 3.6 GIPS / 2.7 GFLOPS |
| Delay | 43 s |
| Audio Latency | 1.05 ms (analog in to analog out) |
| A/D and D/A Converters | 24-bit |
| Sample Rate | 48 kHz |
| ANALOG AUDIO INPUTS | |
| Input Channels | 12 balanced, mic/line level |
| Connectors, Input | 3.81 mm detachable Euroblock, 6-pin |
| Input Impedance | 12 k½ @ 1 kHz (with or without phantom power active) |
| Maximum Input Level | +24 dBu |
| Equivalent Input Noise | -118 dB at 44 dB gain setting |
| Phantom Power | +48 VDC, 10 mA, software selectable per input |
| Gain Settings | 0 / +14 / +24 / +32 / +44 / +54 / +64 dB |
| ANALOG AUDIO OUTPUTS | |
| Output Channels | 8 balanced, line level |
| Connectors | 3.81 mm Euroblock, 6-pin |
| Output Impedance | 200 ½ |
| Maximum Output Level | +24 dBu |
| AUDIO PERFORMANCE SPECIFICATIONS | |
| Frequency Response | 18 Hz to 20 kHz (+0.8 dB/-0.2 dB ref 1 kHz) |
| THD+N | < 0.003% @ +4 dBu (A-weighted/20 Hz to 18 kHz) < 0.01% @ +44 dBu (A-weighted/20 Hz to 18 kHz) |
| Channel Separation (Crosstalk) | < -105 dB at +4 dBu 1 kHz input signal |
| Dynamic Range | > 115 dB, A-weighted 20 Hz Ð 20 kHz, analog input to analog output |
| AUDIO OVER IP | |
| Dante | 64 _ 64, primary/secondary |
| DIGITAL AUDIO PORTS | |
| AmpLink (output only) | 8 low latency (< 21µs), 48 kHz. Requires shielded Cat 5/6 |
| USB Device | Micro-B type, stereo in/out |
| USB Host | Type A. For future use |
| CONTROL INPUTS | |
| Inputs (Control) | 5 analog or digital inputs, 2 k½ internal pull-up resistor to 5 V, 3.81 mm detachable Euroblock, 6-pin |
| Analog Input Voltage Range | 0 V to 3.3 V (maximum 5 V) |
| Digital Input Voltage Range | 0 V to 3.3 V (threshold voltage = 1.6 V) |
| CONTROL OUTPUTS | |
| Outputs (Control) | 5 digital outputs, 3.81 mm detachable Euroblock, 6-pin |
| Output Voltage | High: 8 V (open circuit), 2.5 V @ 10 mA Low: < 1 V @ 100 mA, push-pull |
| INDICATORS AND CONTROLS | |
| Display | 256 x 64 OLED with rotary encoder |
| LED Status Indicators | Power/Status |
| Audio Signal Indication | On Display |
| ELECTRICAL SPECIFICATIONS | |
| Mains Voltage | 85 VAC-264 VAC 50/60 Hz |
| AC Power Consumption | 35 W typical at 40 ¡C (104 ¡F) ambient |
| Mains Connector | IEC 60320-C14 (Inlet) |
| Power Dissipation | 60 W (205 BTU, 52 kcal) |
| PHYSICAL | |
| Dimensions (H _ W _ D) | 44 _ 483 _ 282 mm (1.7 _ 19.0 _ 11.1 in) |
| Net Weight | 3.2 kg (7.1 lb) |
| Operating Temperature | 0¡C - 40¡C (32¡F - 104¡F) |
| Cooling System | 2 variable-speed fans, side venting |
| GENERAL | |
| PC Configuration Software | ControlSpace Designer software version 5.5 or later |
| Network Control | Ethernet (RJ-45), 1 Gbps |
| RS-232/485 ports | RS-232 (DTE) and Bose CC-16 (RS-485 master) 3.81 mm detachable Euroblock, 3-pin |
| COMPLIANCE | |
| Safety | UL60065 (8th edition), CAN/CSA-C22.2 No.60065 (8th edition), IEC/EN60065 (8th edition) UL62368-1 (2nd edition), CAN/CSA C22.2 No. 62368-1-14 (2nd edition), IEC/EN 62368-1 (2nd edition) |
| EMC | EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55035:2017 FCC Part 15B Class A, AS/NZS CISPR 32:2015, ICES-003 Class A, CISPR13 |
With an open-architecture, single-rack-unit design, the ControlSpace EX-1280 is a robust digital signal processor equipped for general-purpose audio processing applications. Twelve mic/line analog inputs, eight analog outputs, a Bose AmpLink output, and 64 x 64 Dante® connectivity allow for flexible configuration and high-quality sound system control. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.
Features:
- Open-architecture, 1RU design built for general-purpose and PA applications
- USB connection facilitates easy integration with PC audio sources
- Dante audio networking supports 64 x 64 audio channels for connection to other Dante-enabled products, including native Dante-integrated microphones, amplifiers, mixers, and end points
- Bose AmpLink port provides 8 channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose amplifiers
- Front-panel interface features a large OLED display and rotary encoder for setting network parameters and monitoring channel activity
- GPIO (5 in/5 out) and Serial for interfacing with external devices and control systems
- High-quality analog circuitry offers both mic and line-level I/O, operates with ultra-low noise and 118 dB dynamic range.
- Bose ControlSpace Designer software enables a large set of signal processing modules, such as automatic mic mixing, multiband graphic and parametric EQs, Bose loudspeaker libraries, signal generators, routers, mixers, AGCs, duckers, gates, compressors, source selectors, delays and logic
- A variety of control options — compatible with the programmable Bose CC-64 and CC-16 controllers, ControlCenter digital zone controllers, and ControlSpace Remote clients
- Supports industry-standard control systems using a comprehensive serial protocol through onboard RS-232 and Ethernet ports, with available drivers for AMX and Crestron-based systems
| INTEGRATED DSP | |
| Signal Processor/CPU | 32-bit fixed/floating-point DSP 456 MHz/ARM Cortex-A8 600 MHz |
| Maximum Calculation | 3.6 GIPS / 2.7 GFLOPS |
| Delay | 43 s |
| Audio Latency | 1.05 ms (analog in to analog out) |
| A/D and D/A Converters | 24-bit |
| Sample Rate | 48 kHz |
| ANALOG AUDIO INPUTS | |
| Input Channels | 12 balanced, mic/line level |
| Connectors, Input | 3.81 mm detachable Euroblock, 6-pin |
| Input Impedance | 12 k½ @ 1 kHz (with or without phantom power active) |
| Maximum Input Level | +24 dBu |
| Equivalent Input Noise | -118 dB at 44 dB gain setting |
| Phantom Power | +48 VDC, 10 mA, software selectable per input |
| Gain Settings | 0 / +14 / +24 / +32 / +44 / +54 / +64 dB |
| ANALOG AUDIO OUTPUTS | |
| Output Channels | 8 balanced, line level |
| Connectors | 3.81 mm Euroblock, 6-pin |
| Output Impedance | 200 ½ |
| Maximum Output Level | +24 dBu |
| AUDIO PERFORMANCE SPECIFICATIONS | |
| Frequency Response | 18 Hz to 20 kHz (+0.8 dB/-0.2 dB ref 1 kHz) |
| THD+N | < 0.003% @ +4 dBu (A-weighted/20 Hz to 18 kHz) < 0.01% @ +44 dBu (A-weighted/20 Hz to 18 kHz) |
| Channel Separation (Crosstalk) | < -105 dB at +4 dBu 1 kHz input signal |
| Dynamic Range | > 115 dB, A-weighted 20 Hz Ð 20 kHz, analog input to analog output |
| AUDIO OVER IP | |
| Dante | 64 _ 64, primary/secondary |
| DIGITAL AUDIO PORTS | |
| AmpLink (output only) | 8 low latency (< 21µs), 48 kHz. Requires shielded Cat 5/6 |
| USB Device | Micro-B type, stereo in/out |
| USB Host | Type A. For future use |
| CONTROL INPUTS | |
| Inputs (Control) | 5 analog or digital inputs, 2 k½ internal pull-up resistor to 5 V, 3.81 mm detachable Euroblock, 6-pin |
| Analog Input Voltage Range | 0 V to 3.3 V (maximum 5 V) |
| Digital Input Voltage Range | 0 V to 3.3 V (threshold voltage = 1.6 V) |
| CONTROL OUTPUTS | |
| Outputs (Control) | 5 digital outputs, 3.81 mm detachable Euroblock, 6-pin |
| Output Voltage | High: 8 V (open circuit), 2.5 V @ 10 mA Low: < 1 V @ 100 mA, push-pull |
| INDICATORS AND CONTROLS | |
| Display | 256 x 64 OLED with rotary encoder |
| LED Status Indicators | Power/Status |
| Audio Signal Indication | On Display |
| ELECTRICAL SPECIFICATIONS | |
| Mains Voltage | 85 VAC-264 VAC 50/60 Hz |
| AC Power Consumption | 35 W typical at 40 ¡C (104 ¡F) ambient |
| Mains Connector | IEC 60320-C14 (Inlet) |
| Power Dissipation | 60 W (205 BTU, 52 kcal) |
| PHYSICAL | |
| Dimensions (H _ W _ D) | 44 _ 483 _ 282 mm (1.7 _ 19.0 _ 11.1 in) |
| Net Weight | 3.2 kg (7.1 lb) |
| Operating Temperature | 0¡C - 40¡C (32¡F - 104¡F) |
| Cooling System | 2 variable-speed fans, side venting |
| GENERAL | |
| PC Configuration Software | ControlSpace Designer software version 5.5 or later |
| Network Control | Ethernet (RJ-45), 1 Gbps |
| RS-232/485 ports | RS-232 (DTE) and Bose CC-16 (RS-485 master) 3.81 mm detachable Euroblock, 3-pin |
| COMPLIANCE | |
| Safety | UL60065 (8th edition), CAN/CSA-C22.2 No.60065 (8th edition), IEC/EN60065 (8th edition) UL62368-1 (2nd edition), CAN/CSA C22.2 No. 62368-1-14 (2nd edition), IEC/EN 62368-1 (2nd edition) |
| EMC | EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55035:2017 FCC Part 15B Class A, AS/NZS CISPR 32:2015, ICES-003 Class A, CISPR13 |
